Section 130 (Speed Control): Switch: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

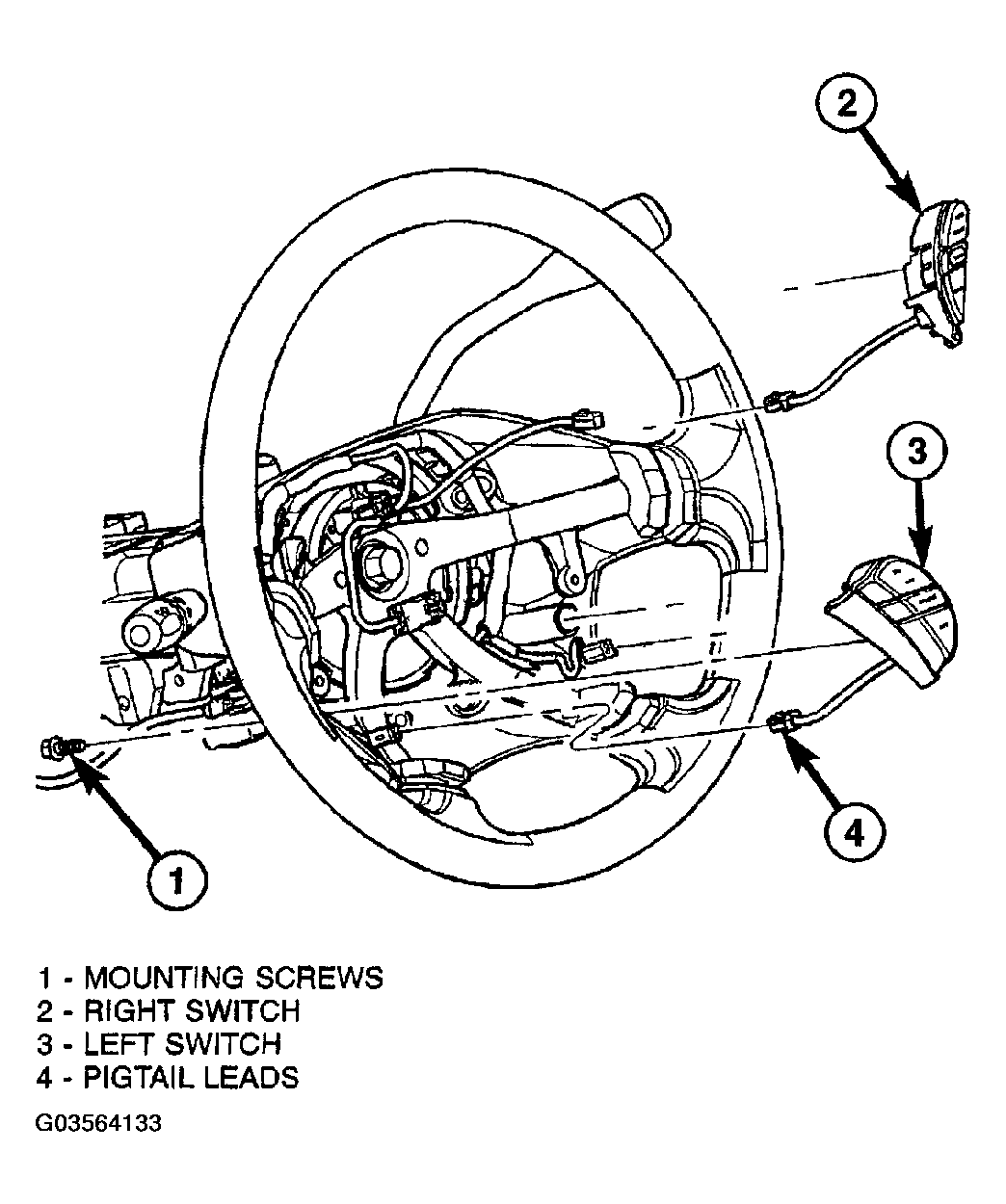

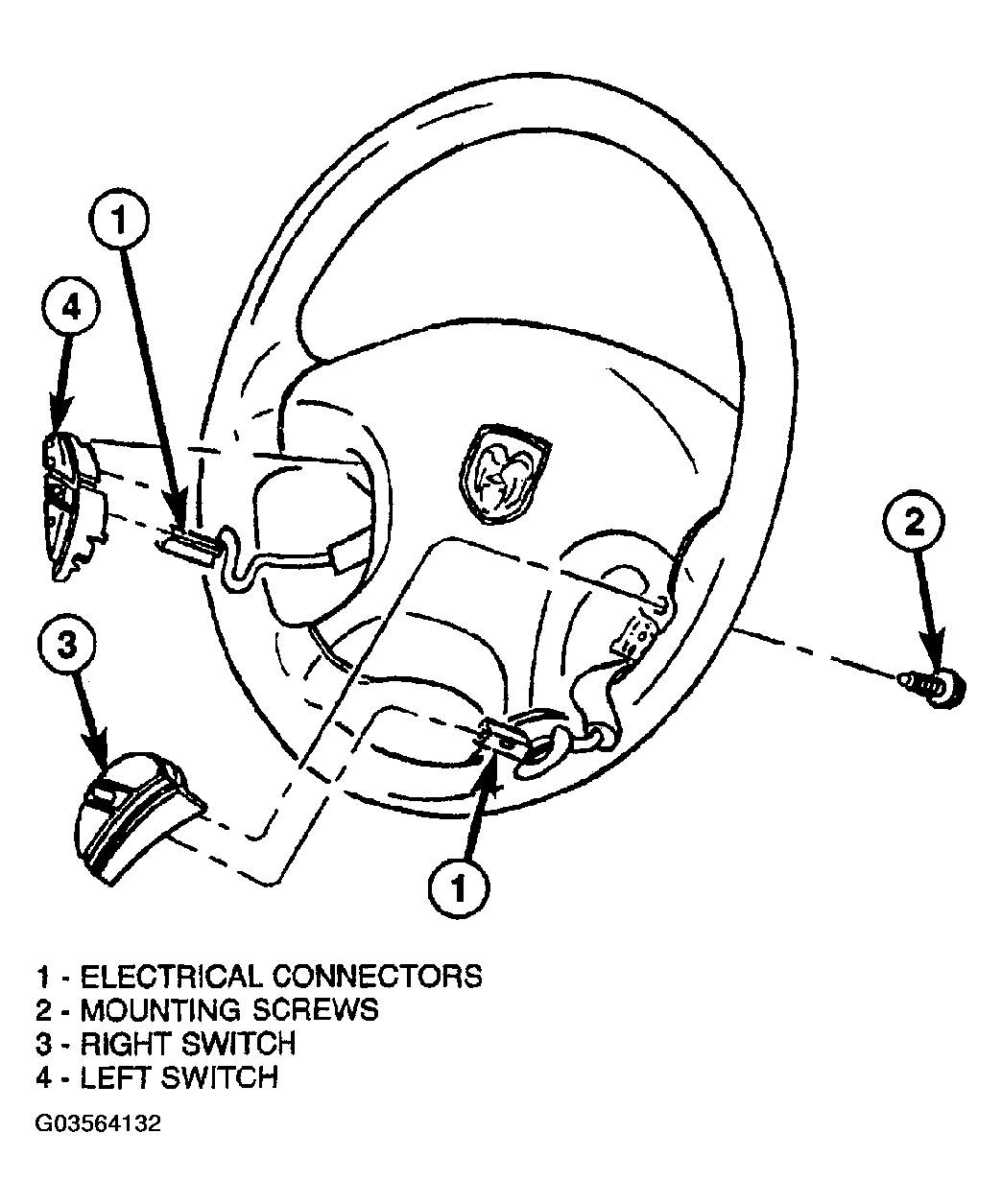

- Plug electrical connector into switch (Figure), or connect pigtail wire harness to steering wheel wire harness (Fig 1). Be sure wires are not pinched.
- Position switch to steering wheel.
- Install switch mounting screw and tighten. Refer to TORQUE - SPEED CONTROL .
