Integrated Power Module: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative and positive battery cables.
- Unsnap cover and remove the B+ terminal nut from the integrated power module B+ terminal. Remove the B+ cable from the integrated power module.
- Disconnect the gray connector from the integrated power module.

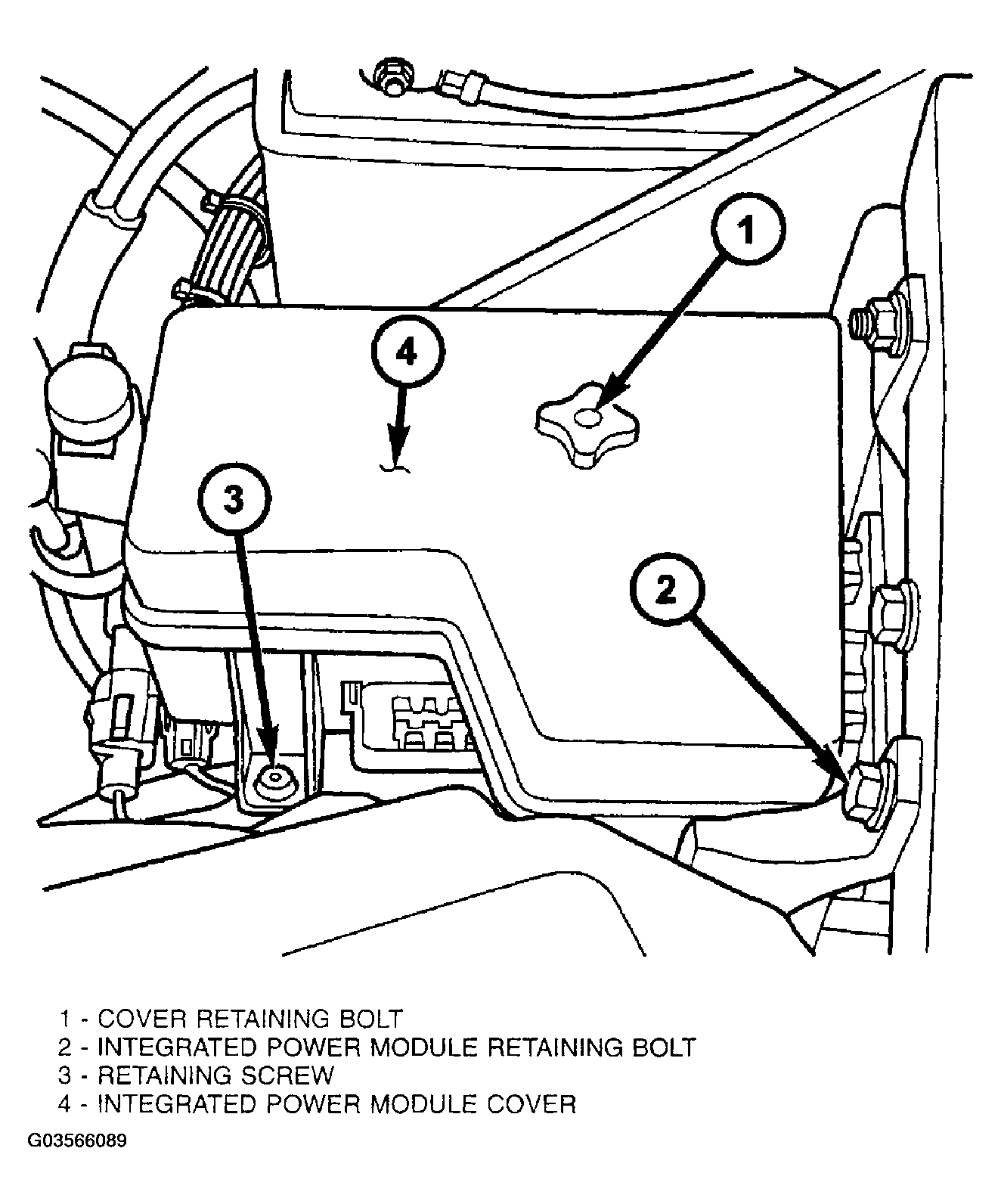

- Remove the integrated power module retaining bolt and screw (Fig 1 ).

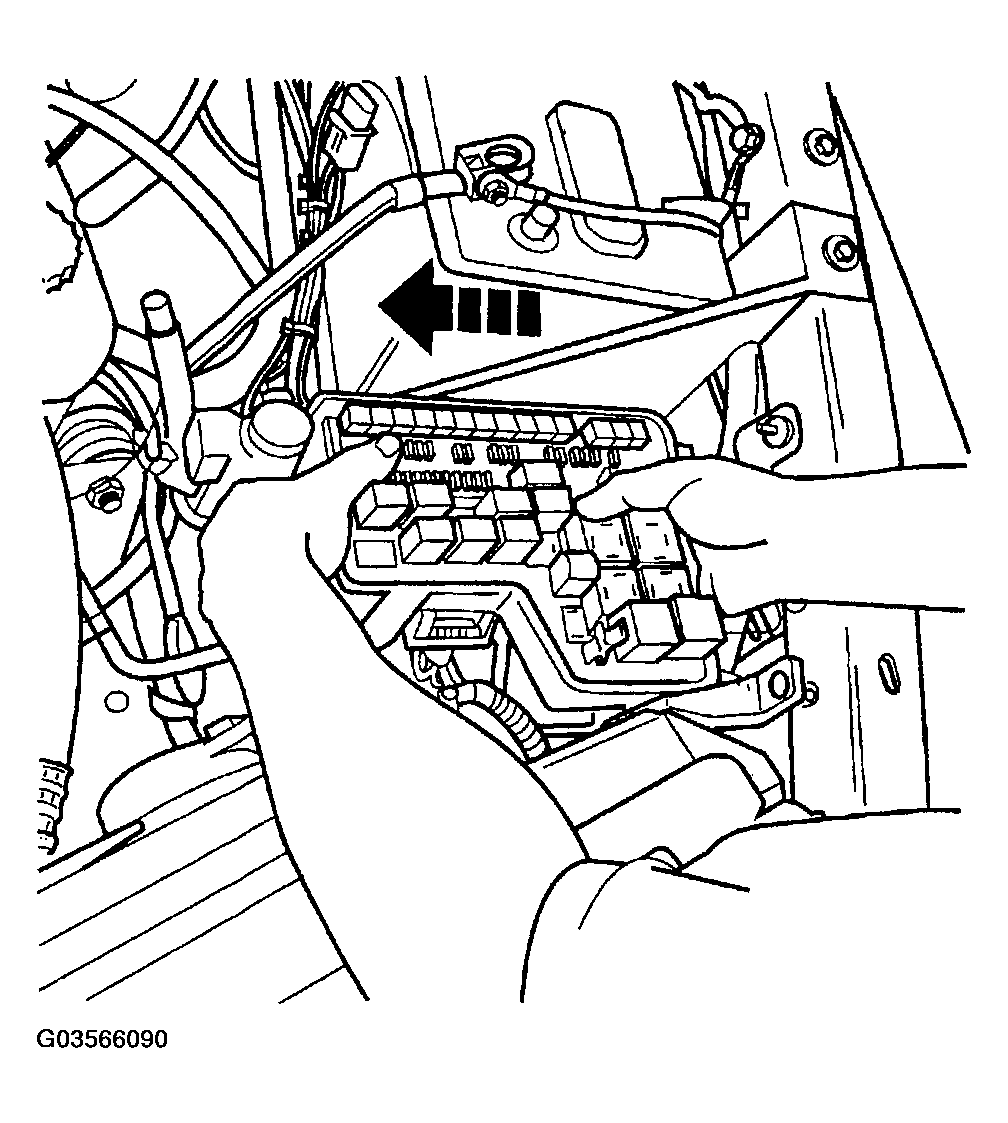

- Grasp the integrated power module with two hands and slide the assembly in the direction shown (Fig 2 ) to free the module from its mounting bracket. Position the assembly upside down to access the electrical connectors located on the bottom of the unit.
- Disconnect the electrical connectors by depressing the locking tab and rotating the connector arm outboard, until the connector is free from the module assembly. Be certain to pull the connectors straight off.
- Position the integrated power module on a bench and remove the four front control module retaining screws.
- Disconnect the front control module by pulling it straight off the integrated power module.
