Charging System: Generator: Installation: 3.8L

Install idler pulley to generator. See Fig 1.

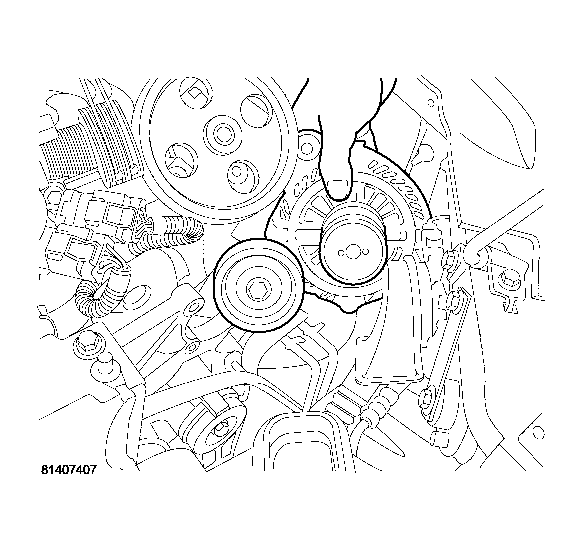

Fig 1: Generator Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
Install assembly to vehicle.

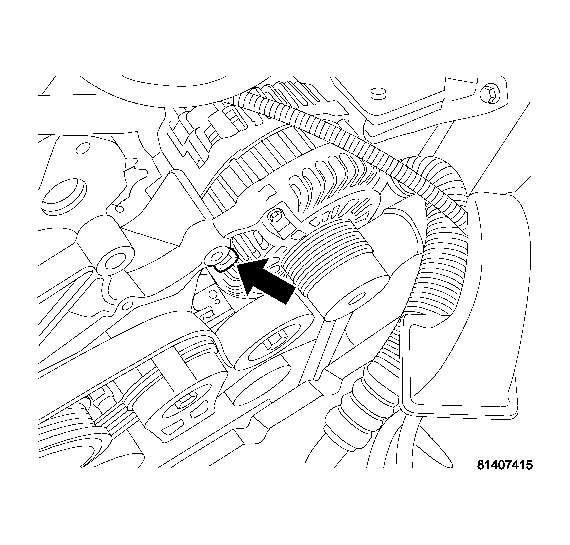

Loosely install upper mounting bolt. See Fig 2.

Fig 2: Upper Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Loosely install rear mounting bolt. See Fig 3.

Fig 3: Generator Rear Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Loosely install the lower mounting bolt with idler pulley. See Fig 4.

Fig 4: Installing Mounting Bolt With Idler Pulley
Courtesy of DAIMLERCHRYSLER CORP.

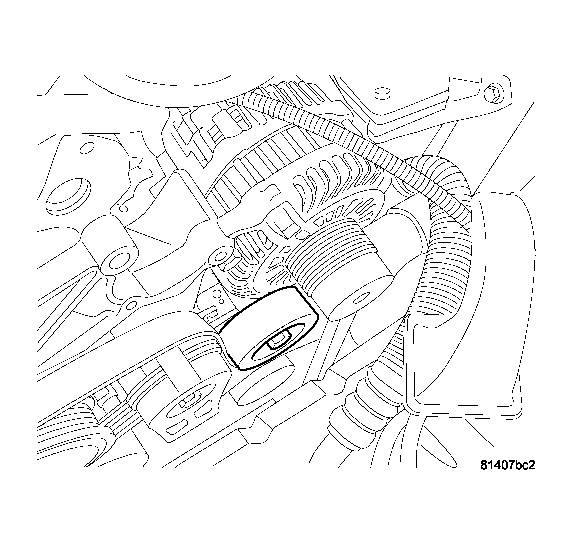

Install idler pulley. See Fig 5.

Fig 5: Idler Pulley Installed
Courtesy of DAIMLERCHRYSLER CORP.
Tighten bolts to 54.2 N.m (40 ft. lbs.).

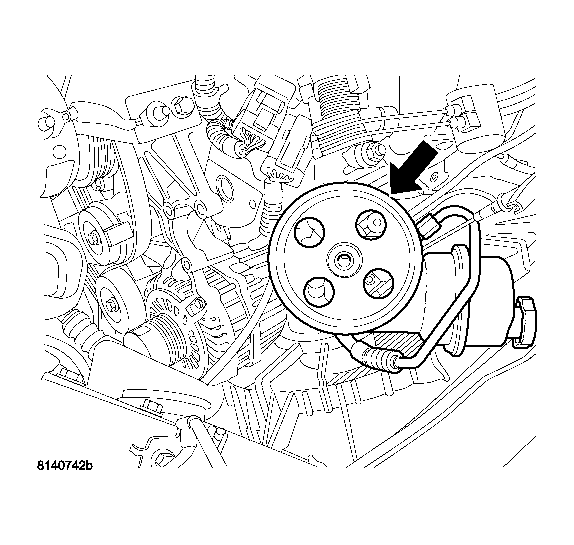

Relocate the power steering pump assembly. See Fig 6.

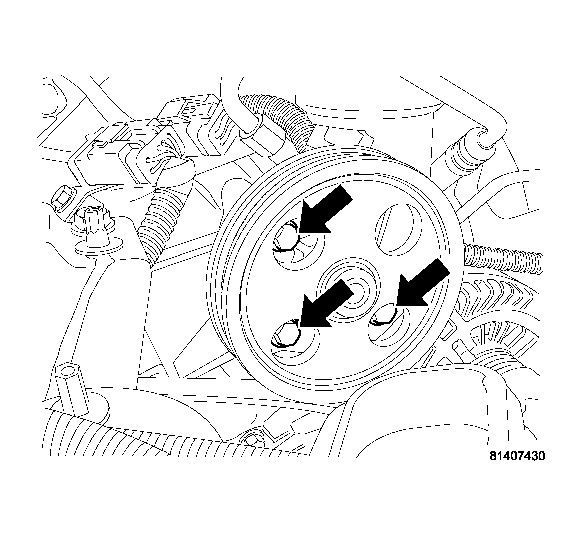

Fig 6: Power Steering Pump Relocation
Courtesy of DAIMLERCHRYSLER CORP.
Install the 3 mounting bolts and tighten to 23 N.m (200 in. lbs.). See Fig 7.

Fig 7: Power Steering Pump Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.

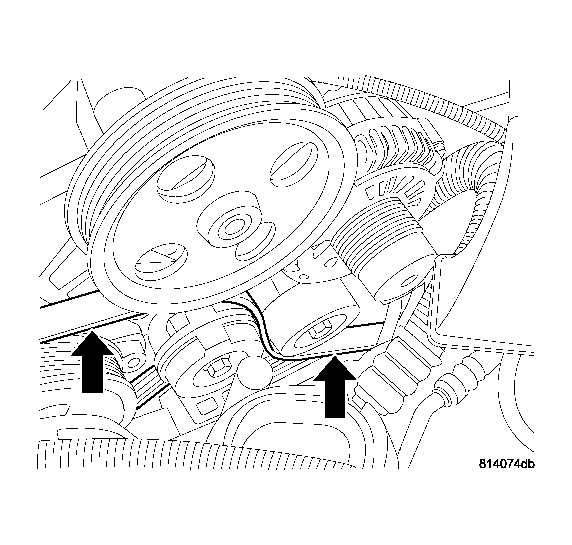

Install the accessory drive belt. See Fig 8. Refer to (COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .

Fig 8: Drive Belt Installation
Courtesy of DAIMLERCHRYSLER CORP.

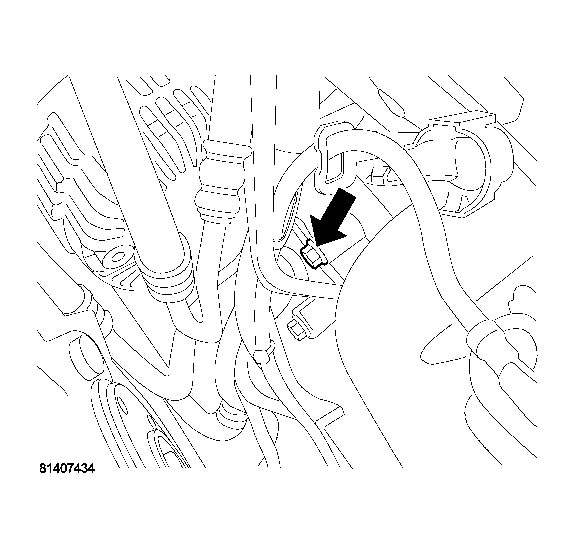

Connect the battery cable to generator. See Fig 9.

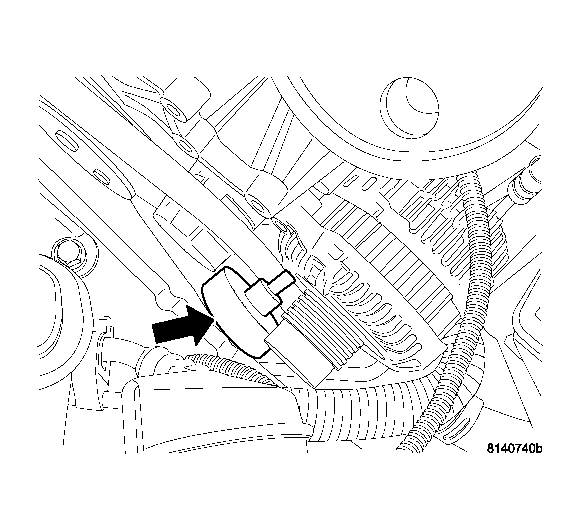

Fig 9: Generator Battery Connection Cover
Courtesy of DAIMLERCHRYSLER CORP.
Tighten nut to N.m 12.5 (110 in. lbs.).
Snap cable cover back into place.

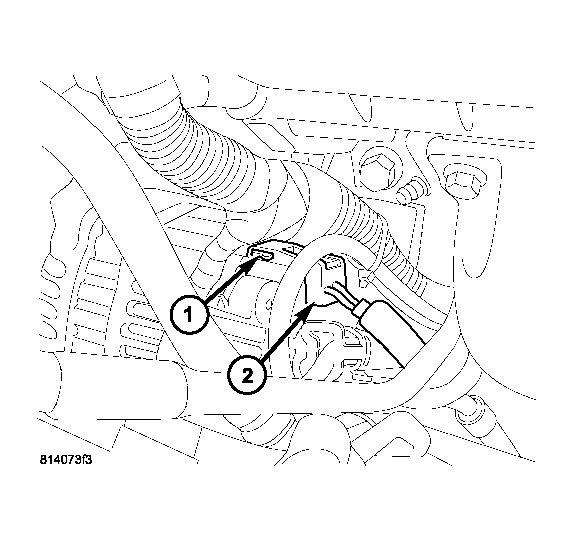

Connect the field connector (2). See Fig 10.

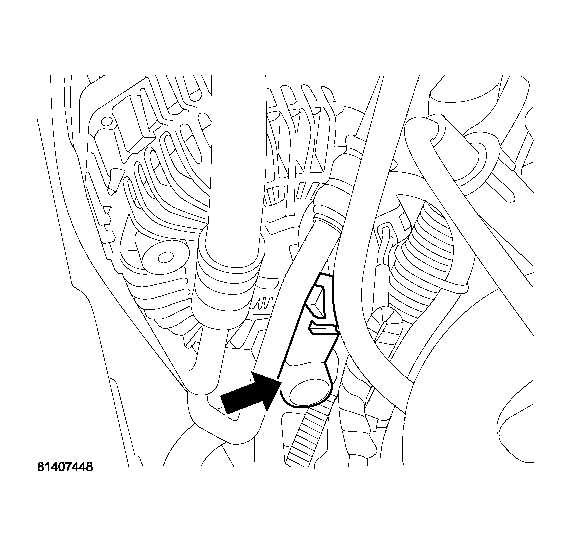

Fig 10: Generator Field Connector
Courtesy of DAIMLERCHRYSLER CORP.

1 - Connector Lock

2 - Field Connector

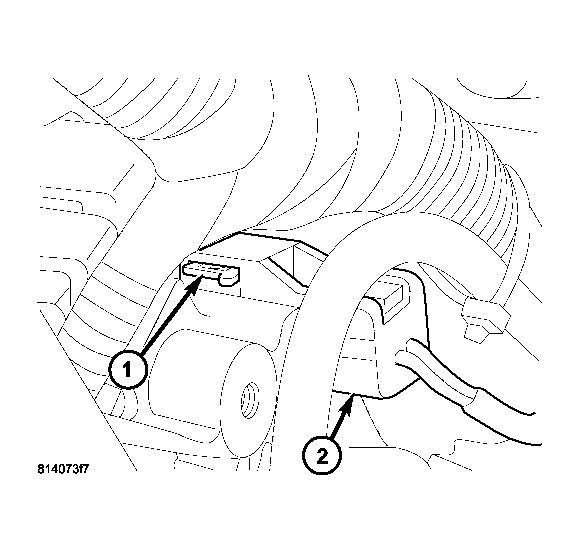

Lock connector (1). See Fig 11.

Fig 11: Electrical Connector Lock
Courtesy of DAIMLERCHRYSLER CORP.

1 - Connector Lock

2 - Field Connector
Connect negative battery cable.
Install the air box assembly. Refer to INSTALLATION .
