Overhead Console: Disassembly

  1. Remove the overhead console from the vehicle (Refer to ELECTRICAL/OVERHEAD CONSOLE - REMOVAL) .
  2. Remove the two module retaining screws. See Fig 1.

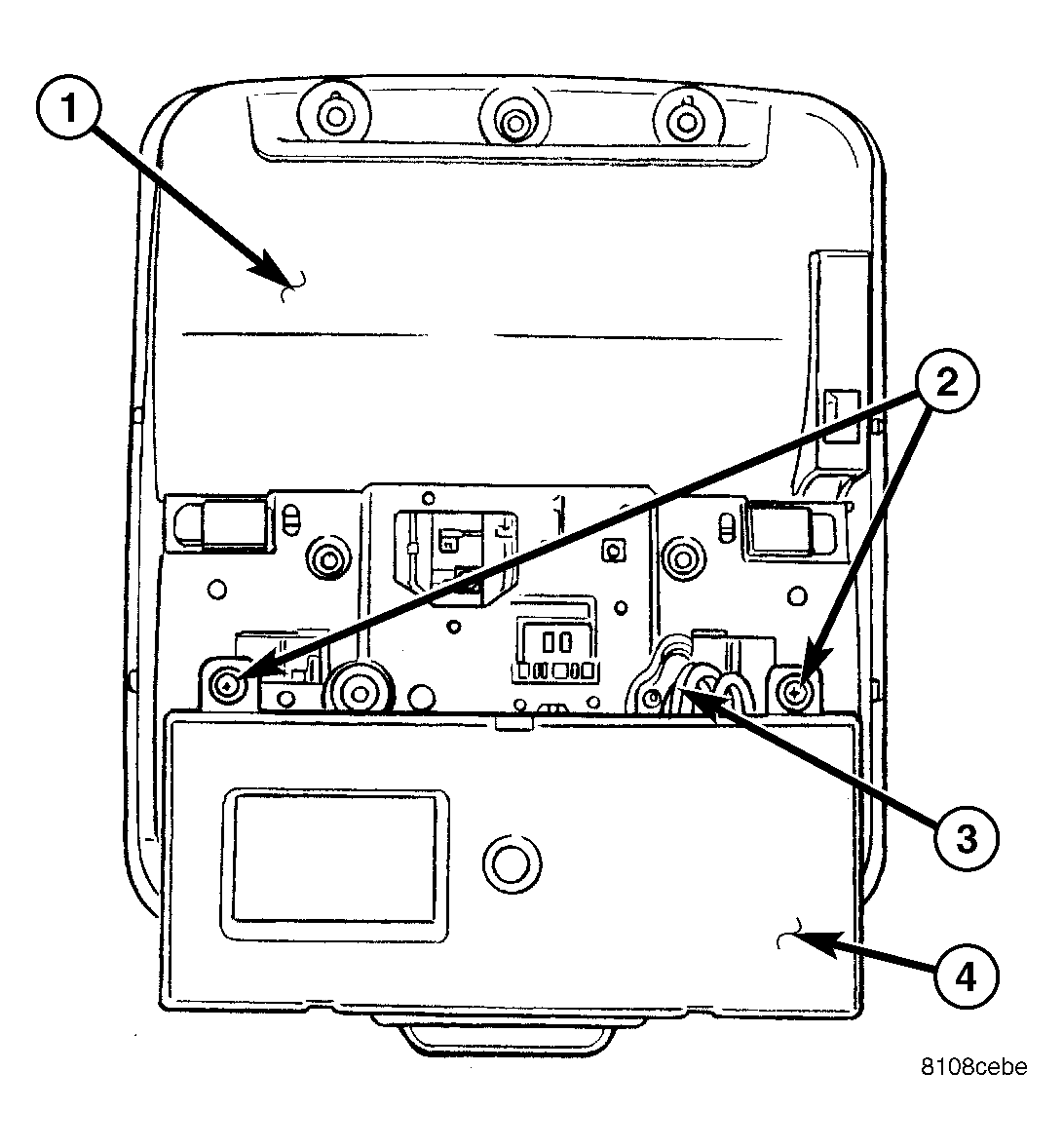

    Fig 1: Top View Of CS Overhead Console
    GC0000178Courtesy of DAIMLERCHRYSLER CORP.
    1 - Overhead Console Housing
    2 - CMTC Module Retaining Screws
    3 - Module Electrical Connector
    4 - CMTC Module
  3. Disconnect the module electrical connector. Depress the connector retaining tab and pull straight apart.
  4. Remove the module from the overhead console.
