Navigation Unit: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove rear floor stowage tray (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
  3. Remove mounting fasteners. See Fig 1.

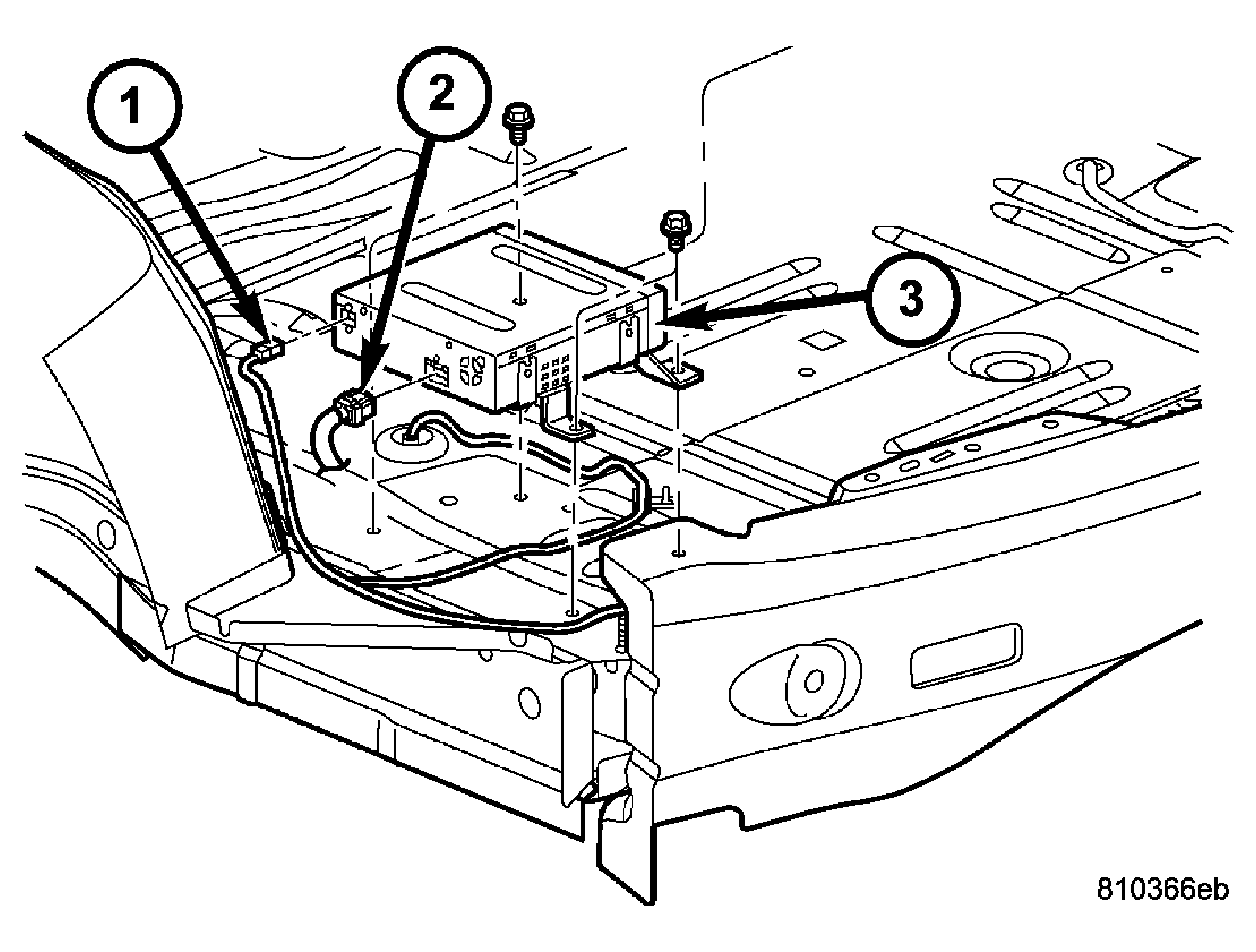

    Fig 1: Navigation Unit
    GC0002418Courtesy of DAIMLERCHRYSLER CORP.
    1 - ANTENNA CABLE - NAVIGATION
    2 - ELECTRICAL HARNESS CONNECTOR
    3 - NAVIGATION UNIT
  4. Disconnect electrical harness connector and antenna cable from navigation unit.
  5. Remove navigation unit from mounting bracket.
