Throttle Body: Installation: 3.5L

Inspect and replace throttle body gasket if necessary.
Install throttle body gasket.
Install throttle body. See Fig 1.

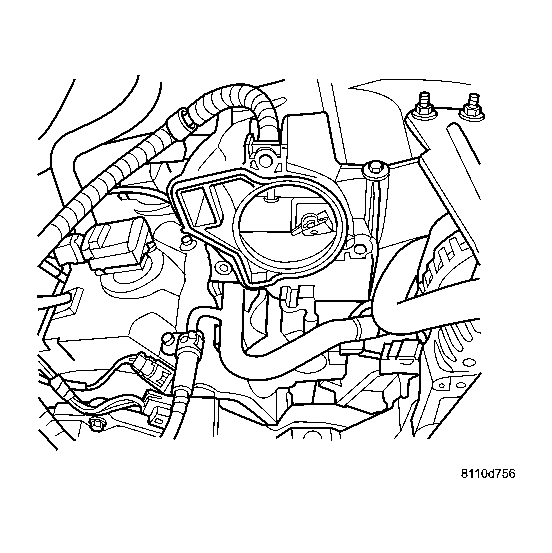

Fig 1: Throttle Body Removed
Courtesy of DAIMLERCHRYSLER CORP.
Install 3 throttle body bolts and tighten.

Connect electrical connectors to throttle body. See Fig 2.

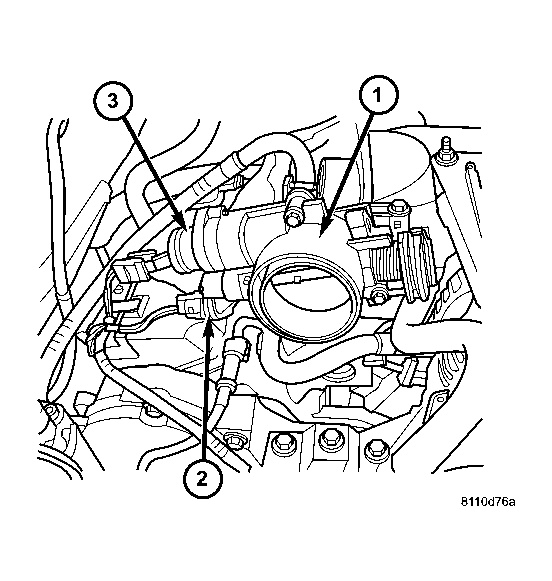

Fig 2: Throttle Body, TPS, & IAC

Courtesy of DAIMLERCHRYSLER CORP.

1 - Throttle Body

2 - Throttle Position Sensor

3 - Idle Air Control Motor

Install throttle cable bracket. See Fig 3.

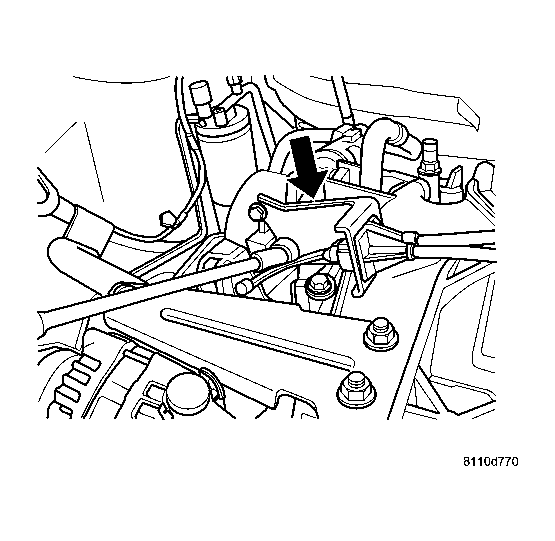

Fig 3: Throttle Body Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm.
Install the air cleaner box,
Install the engine cover.
Connect negative cable from battery.
