Air Injection: Pump: Installation

  1. Install air pump to vehicle. See Figure.
  2. Connect quick connect hose to inlet of air pump.

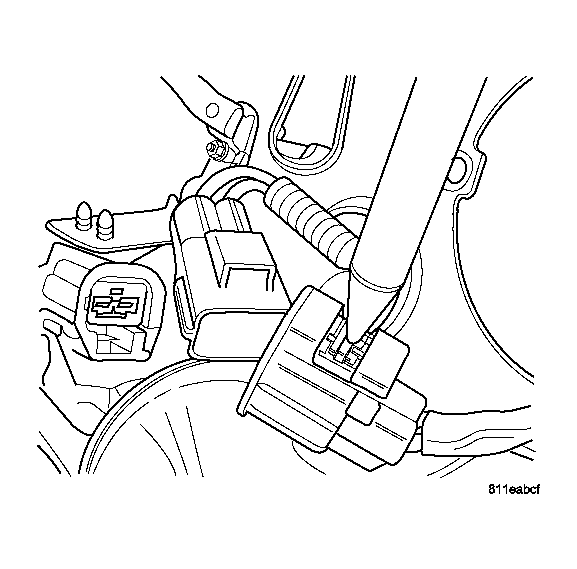

  3. Connect electrical connector. See Figure.

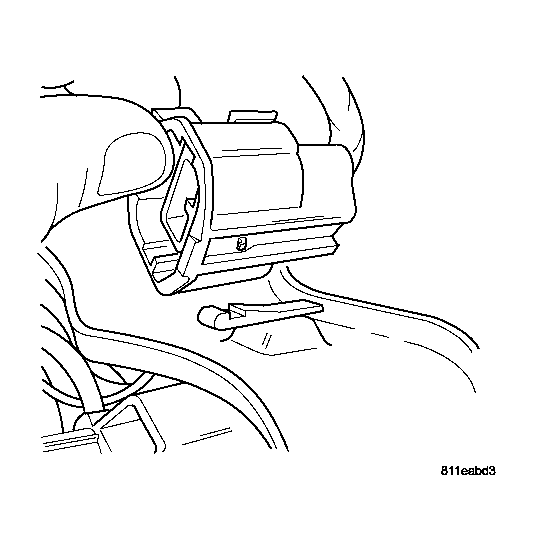

  4. Clip electrical connector to mounting bracket. See Figure.

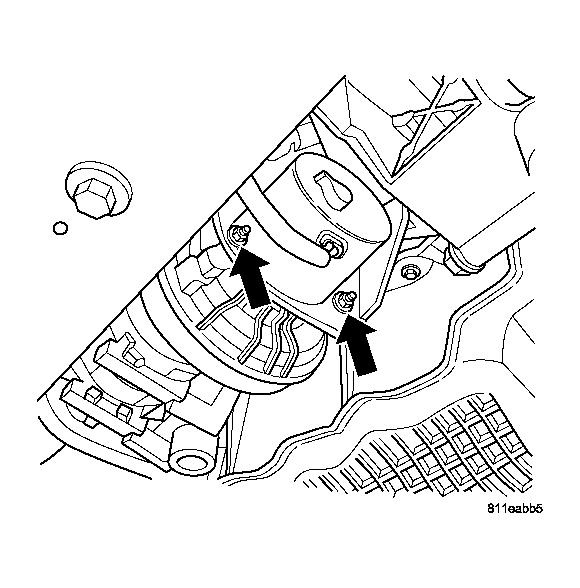

  5. Install 3 mounting nuts and tighten. See Figure.
  6. Lower vehicle.
  7. Connect quick connect hose to the top of air pump.
  8. Install air inlet tube for the air cleaner box.
  9. Connect negative battery cable.
