Boost Pressure Sensor

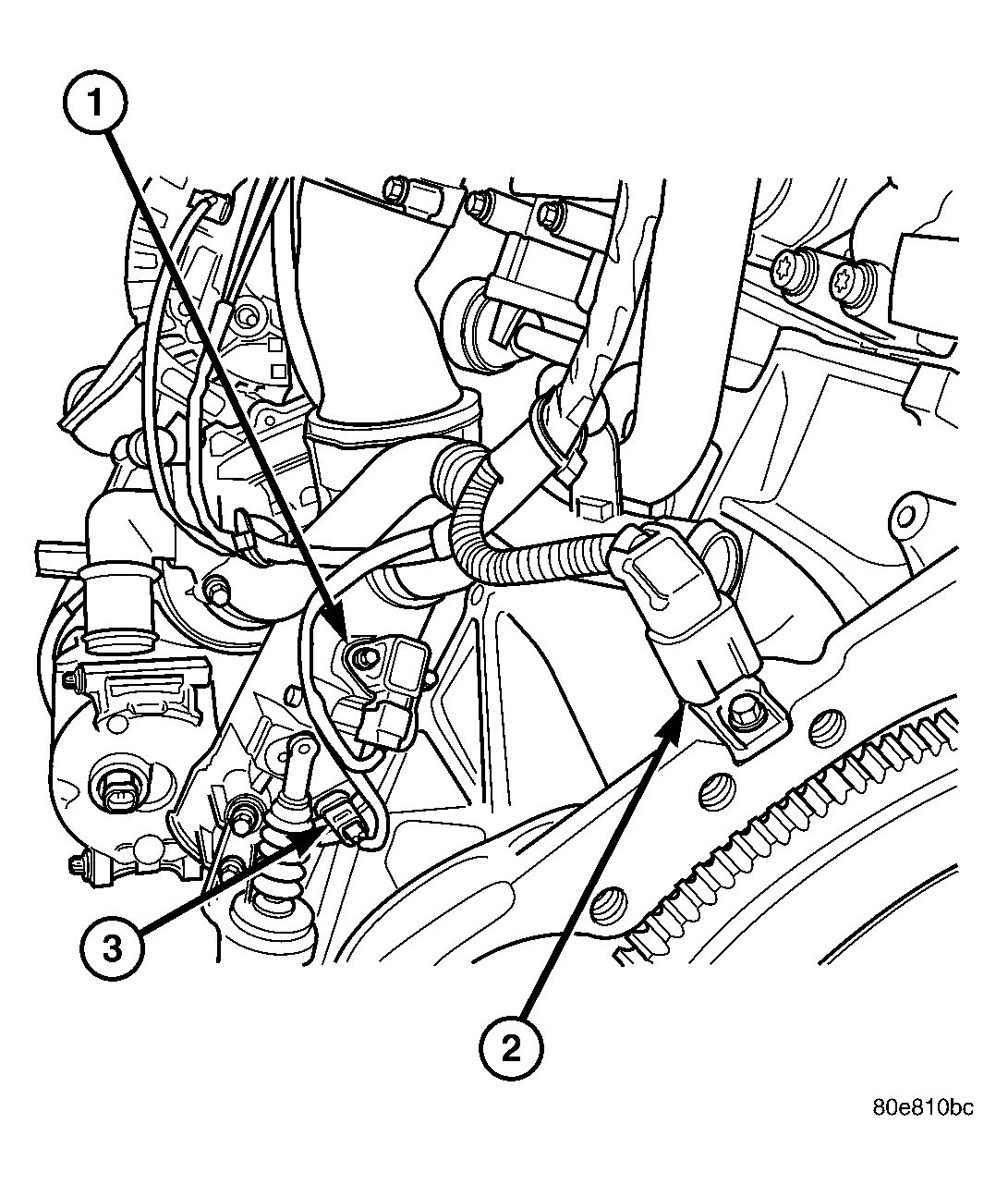

The boost pressure sensor is mounted in the mixing chamber below the intake manifold. See Fig 1. The sensor allows the ECM to monitor air pressure within the intake manifold.
| 1 - BOOST PRESSURE SENSOR |
| 2 - CRANKSHAFT POSITION (CKP) SENSOR |
| 3 - INTAKE AIR TEMPERATURE SENSOR |
