Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

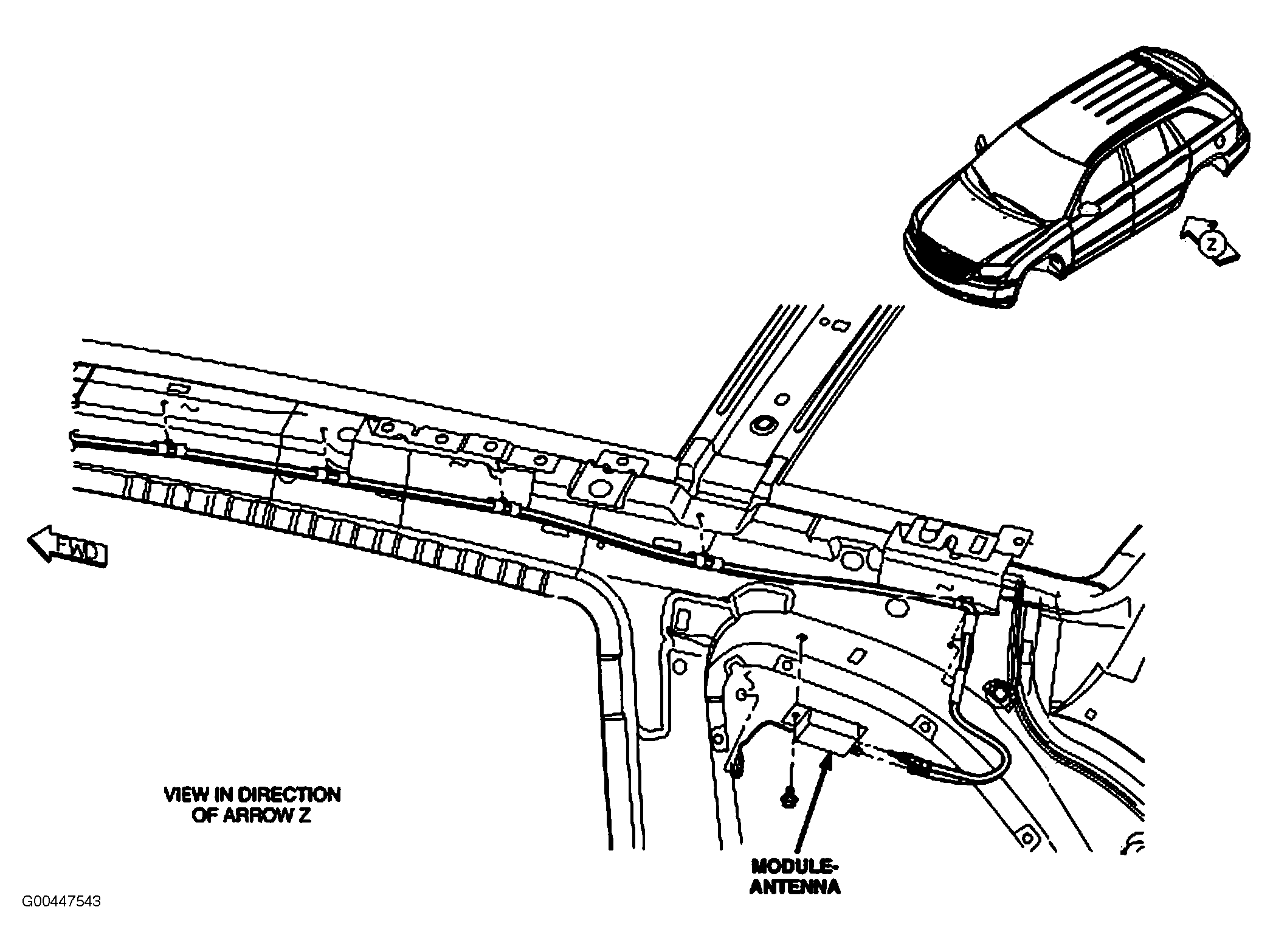

| Antenna Module | Above left rear side glass. See Figure. |

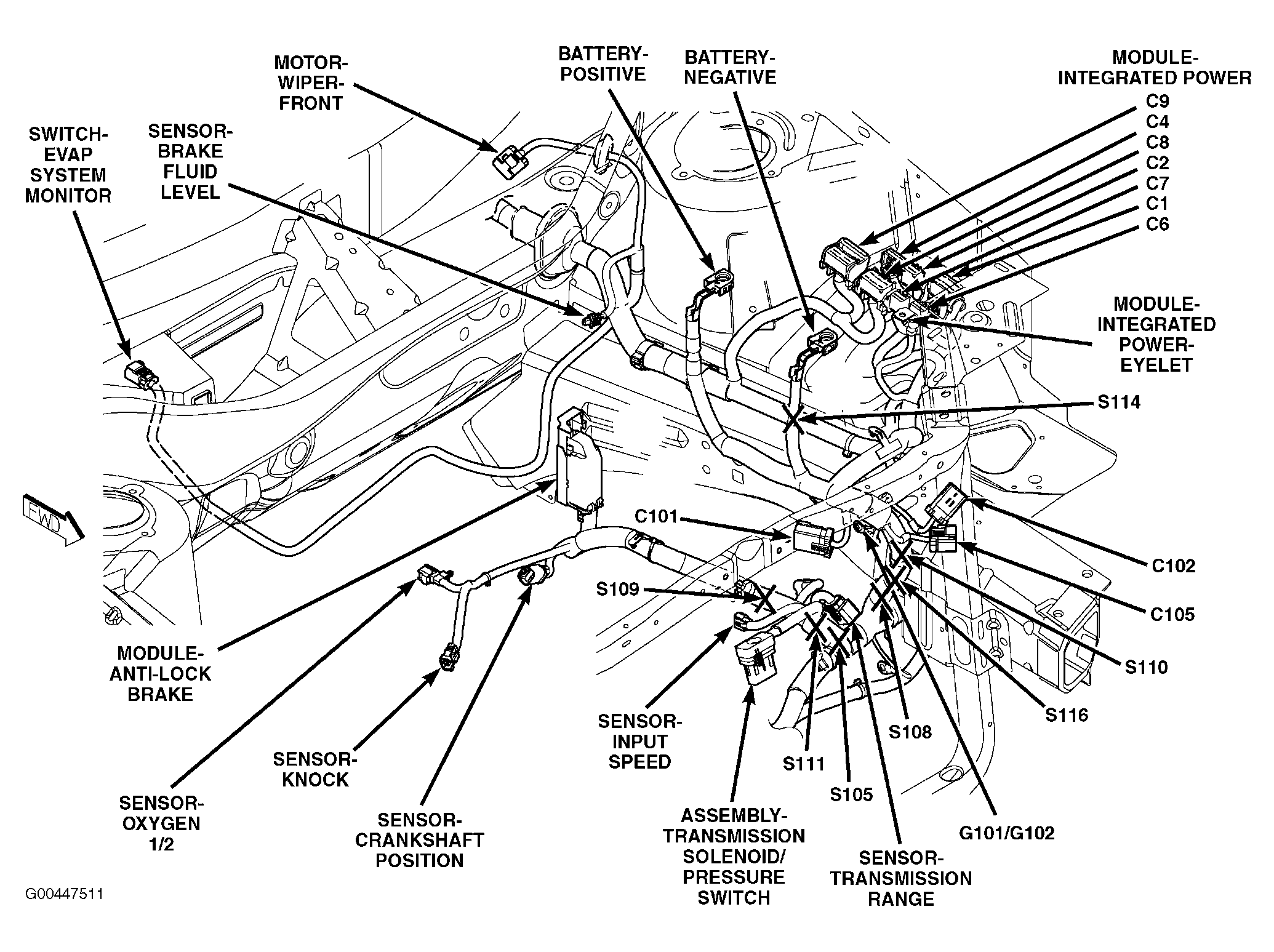

| Anti-Lock Brake Module | Left rear of engine compartment. See Figure. |
| Body Control Module | Behind left kick panel. See Figure. |

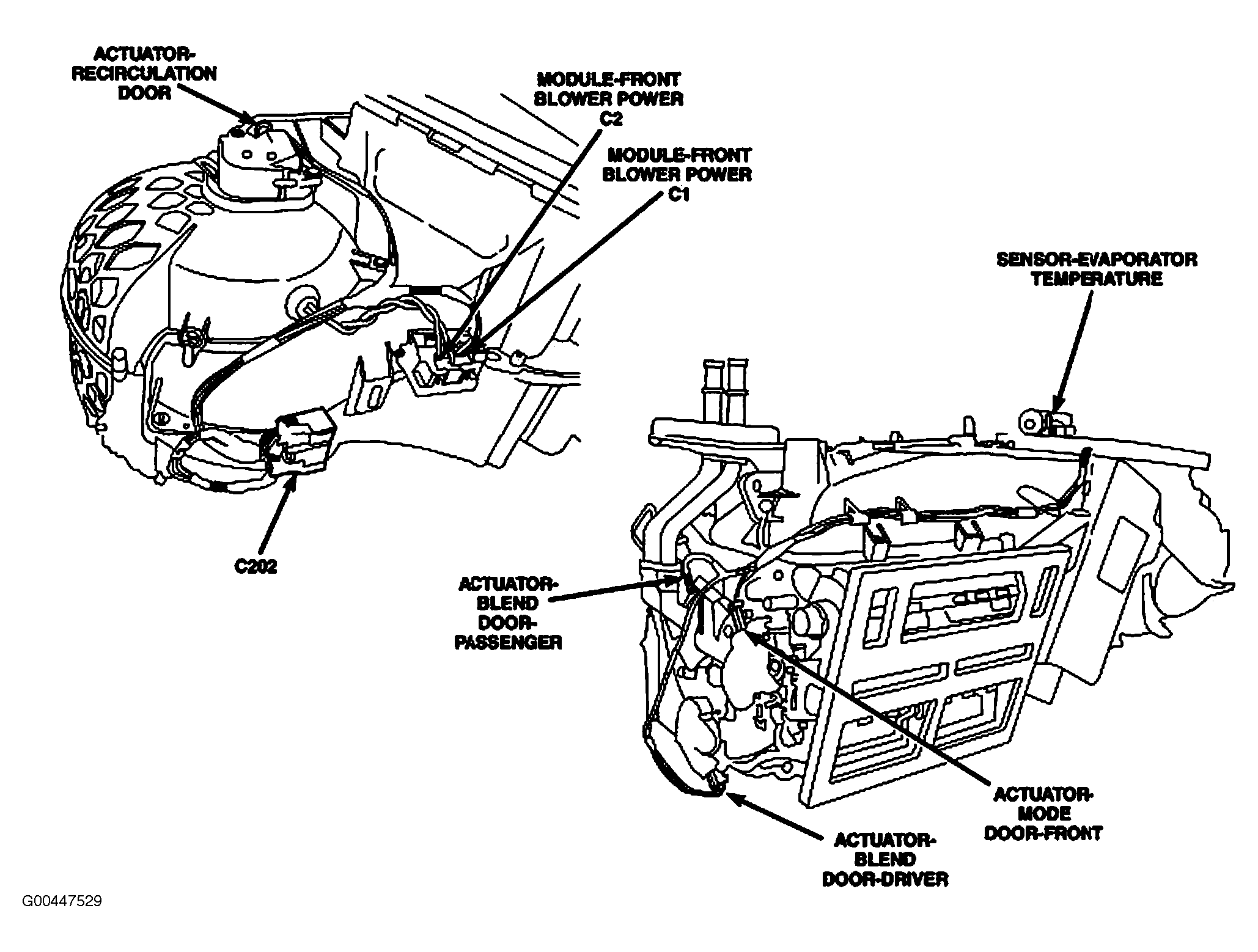

| Front Blower Power Module | On HVAC. See Figure. |

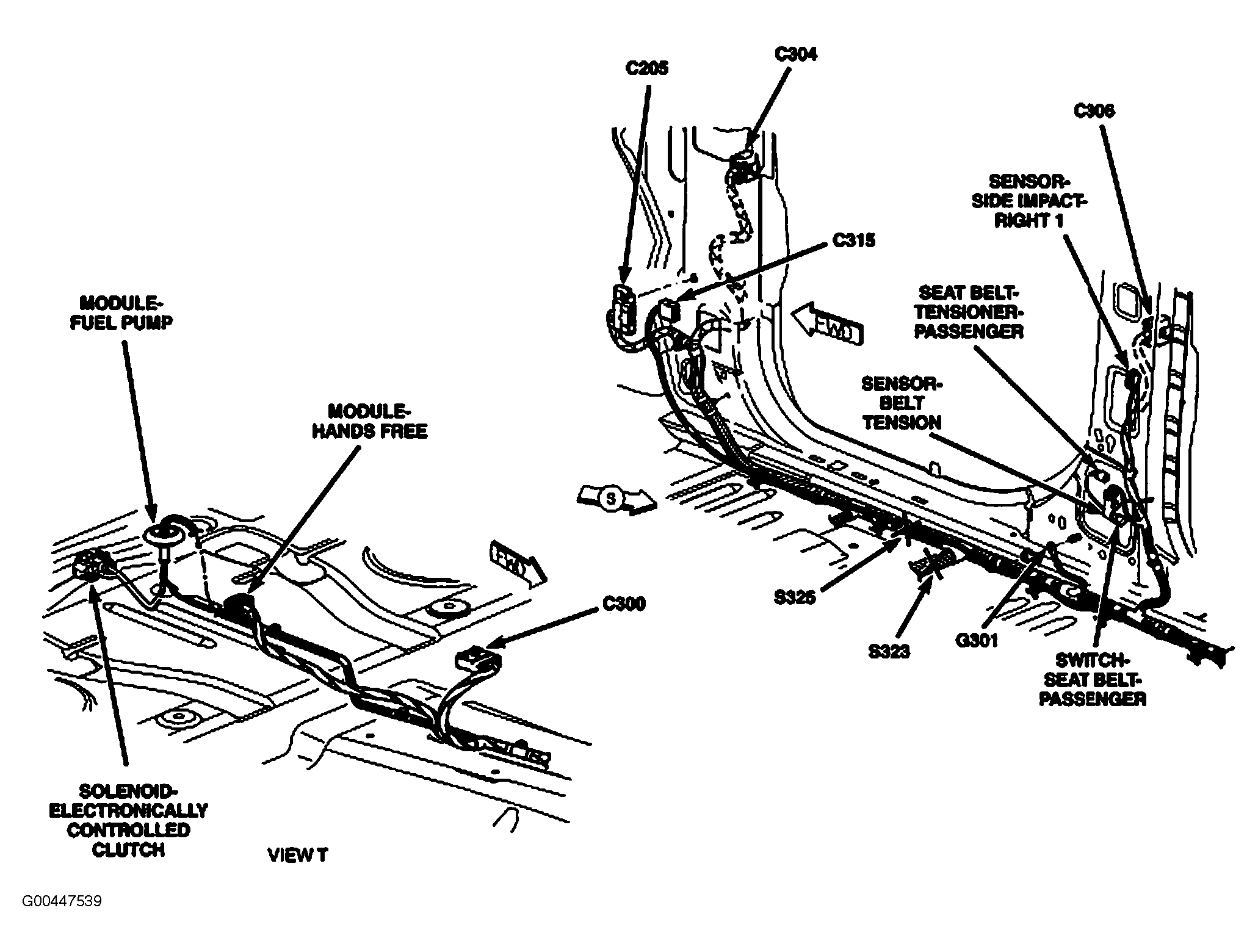

| Hands Free Module | Center of vehicle floor. See Figure. |

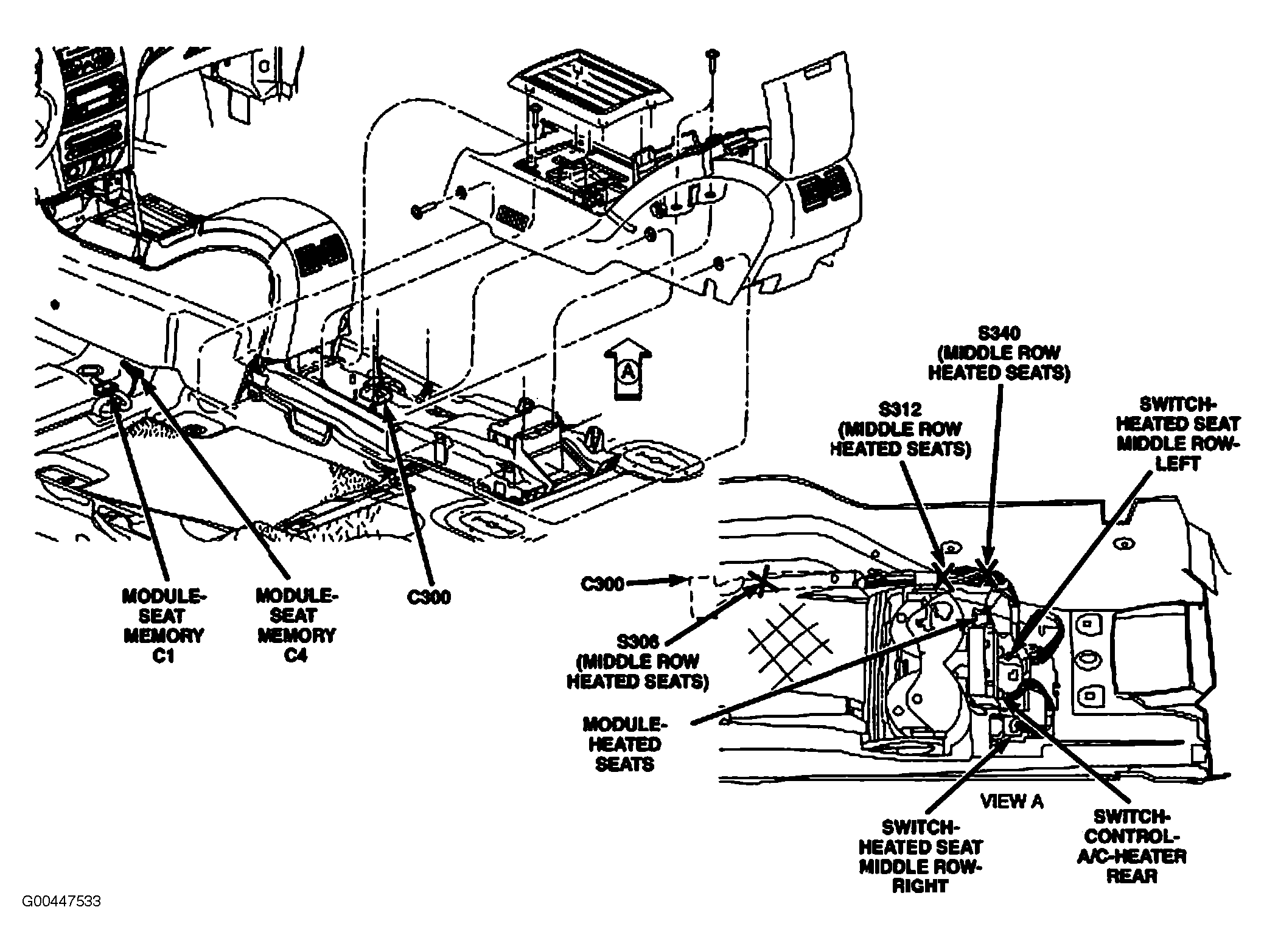

| Heated Seats Module | In rear center console. See Figure. |

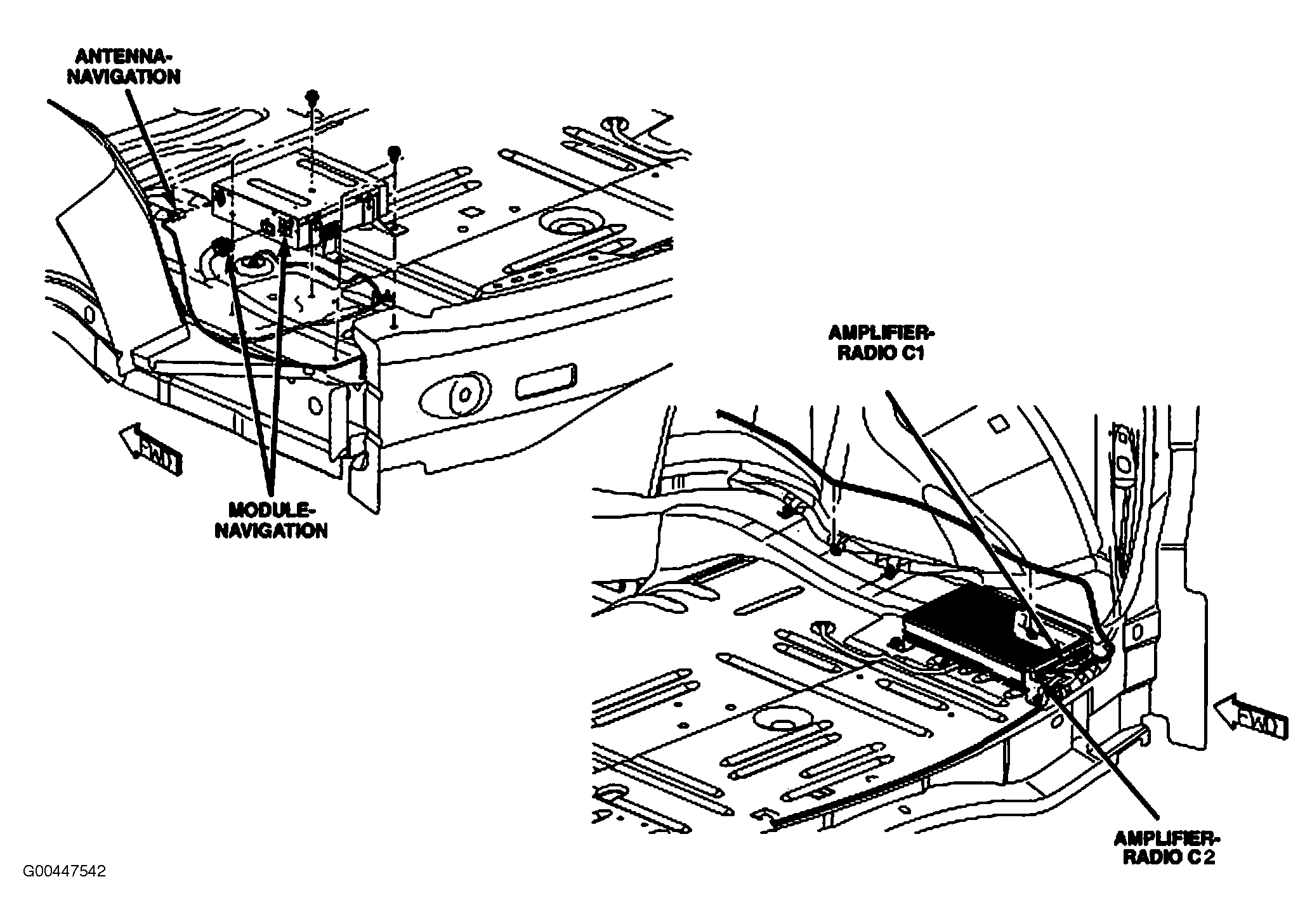

| Navigation Module | Left rear corner of vehicle. See Figure. |
| Navigation Unit | Behind left rear quarterpanel. See Figure. |
| Occupant Classification Module | Under front passenger's seat. |

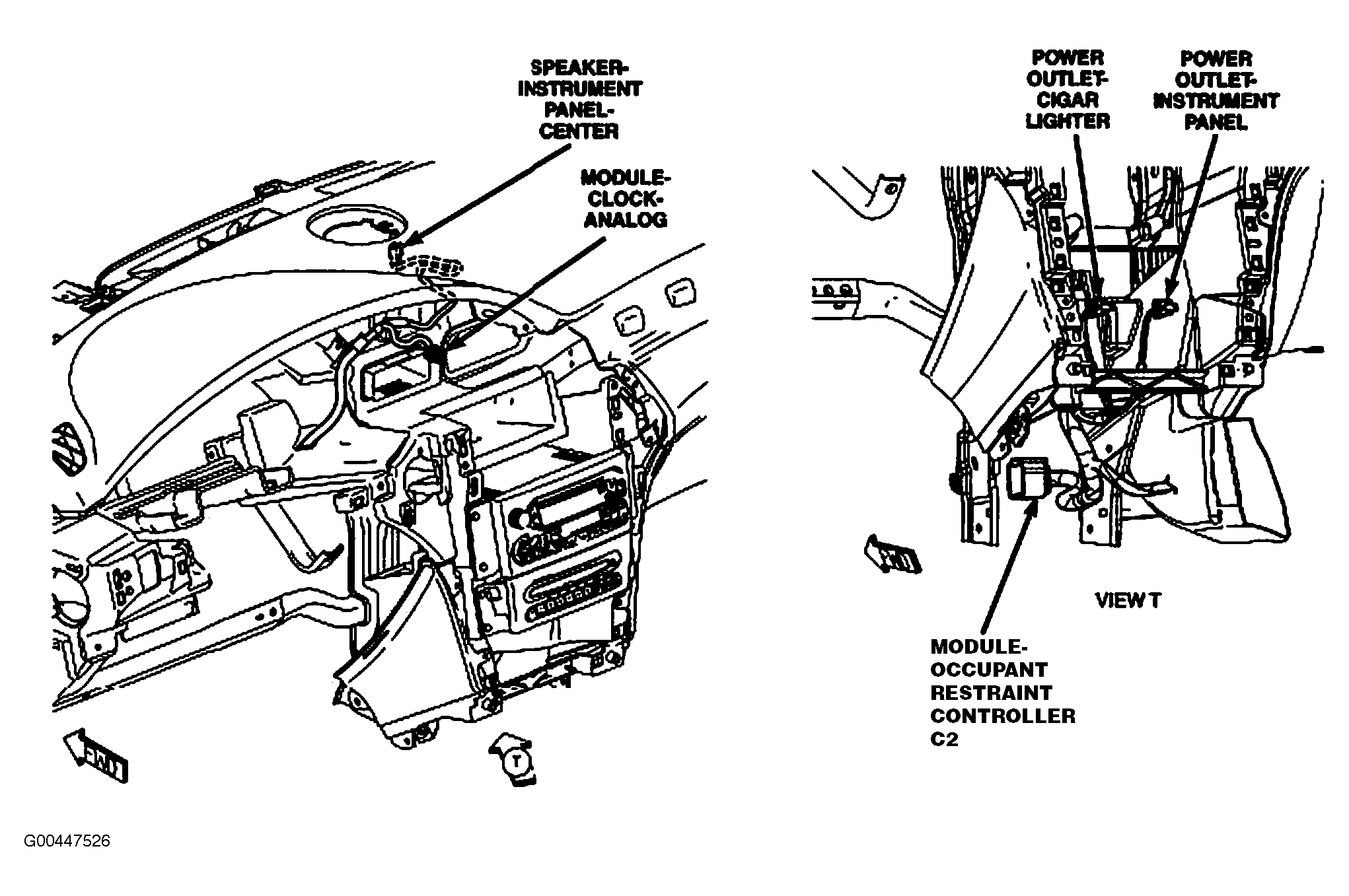

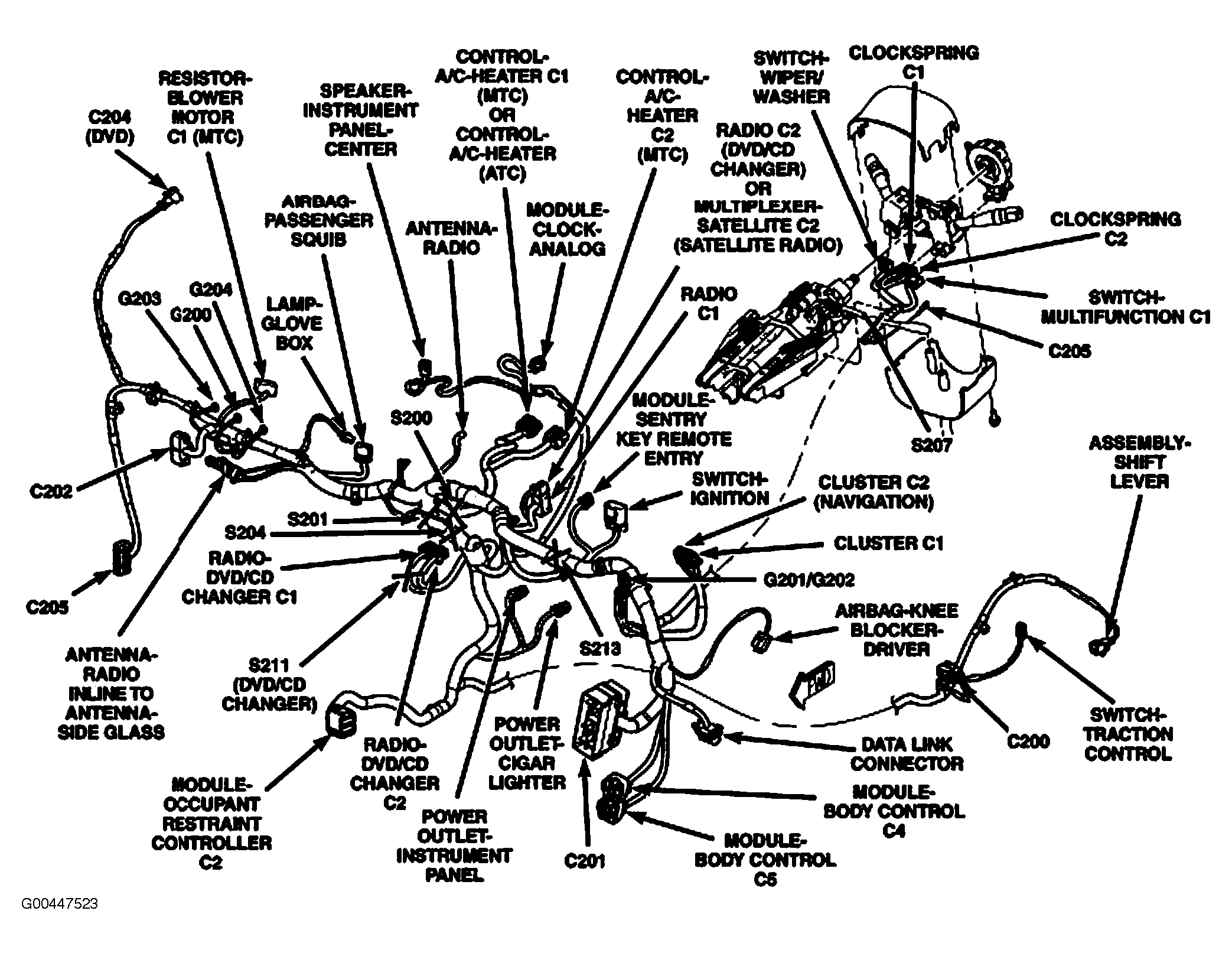

| Occupant Restraint Controller | Under center of dash. See Figure. |

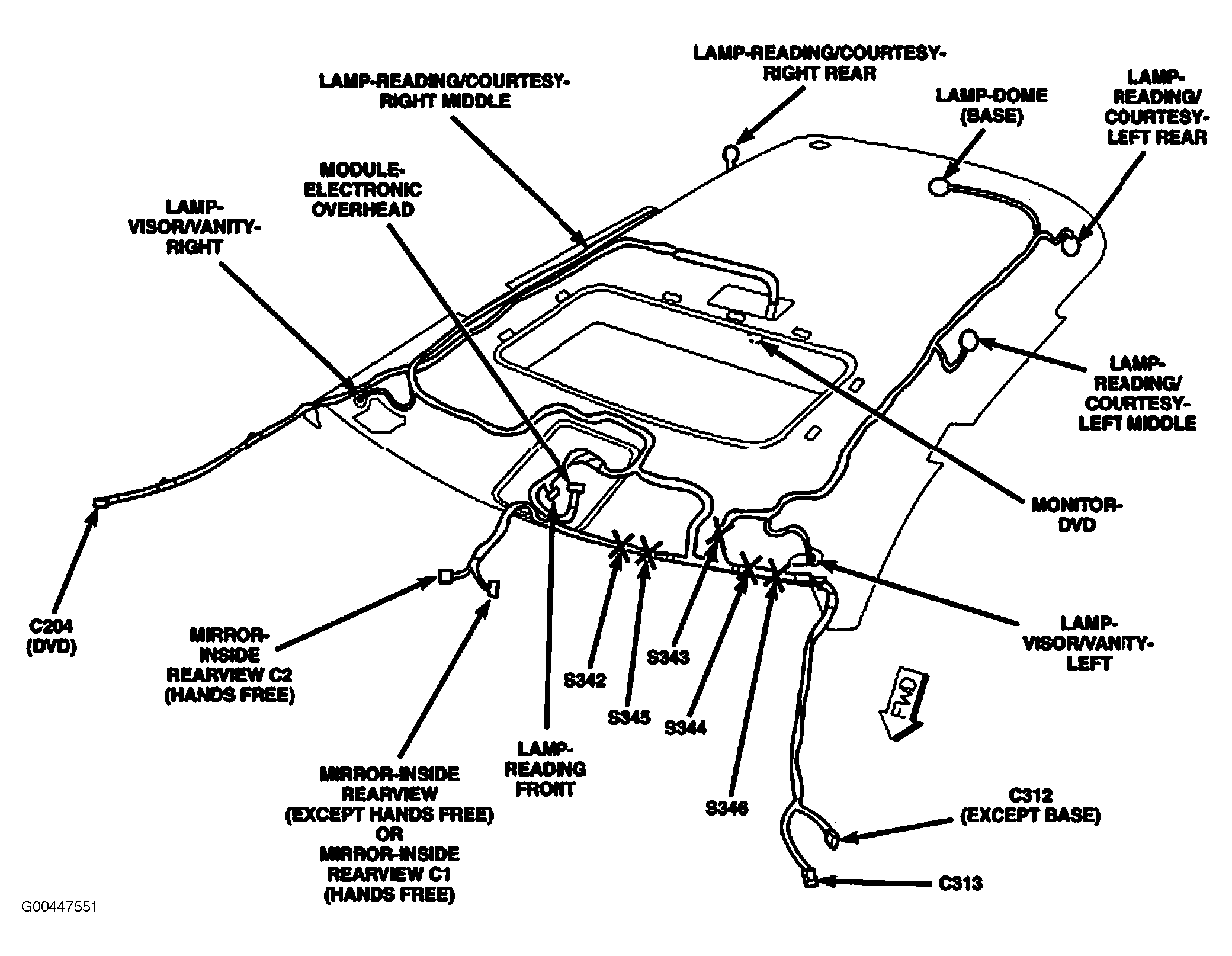

| Overhead Electronic Module | Center front of roof. See Figure. |

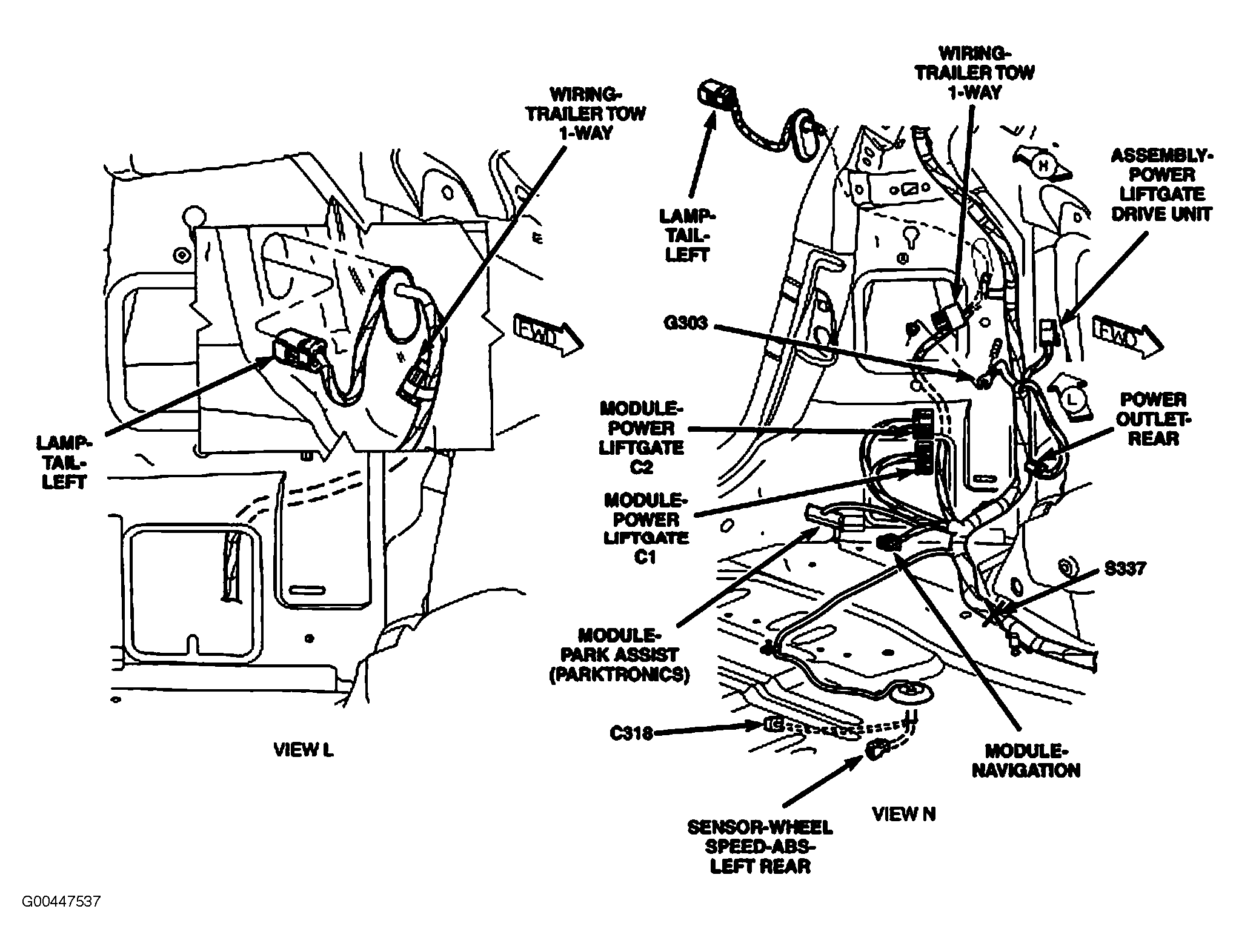

| Park Assist (Parktronics) Module | Behind left rear quarterpanel. See Figure. |
| Power Liftgate Module | Behind left rear quarterpanel. See Figure. |

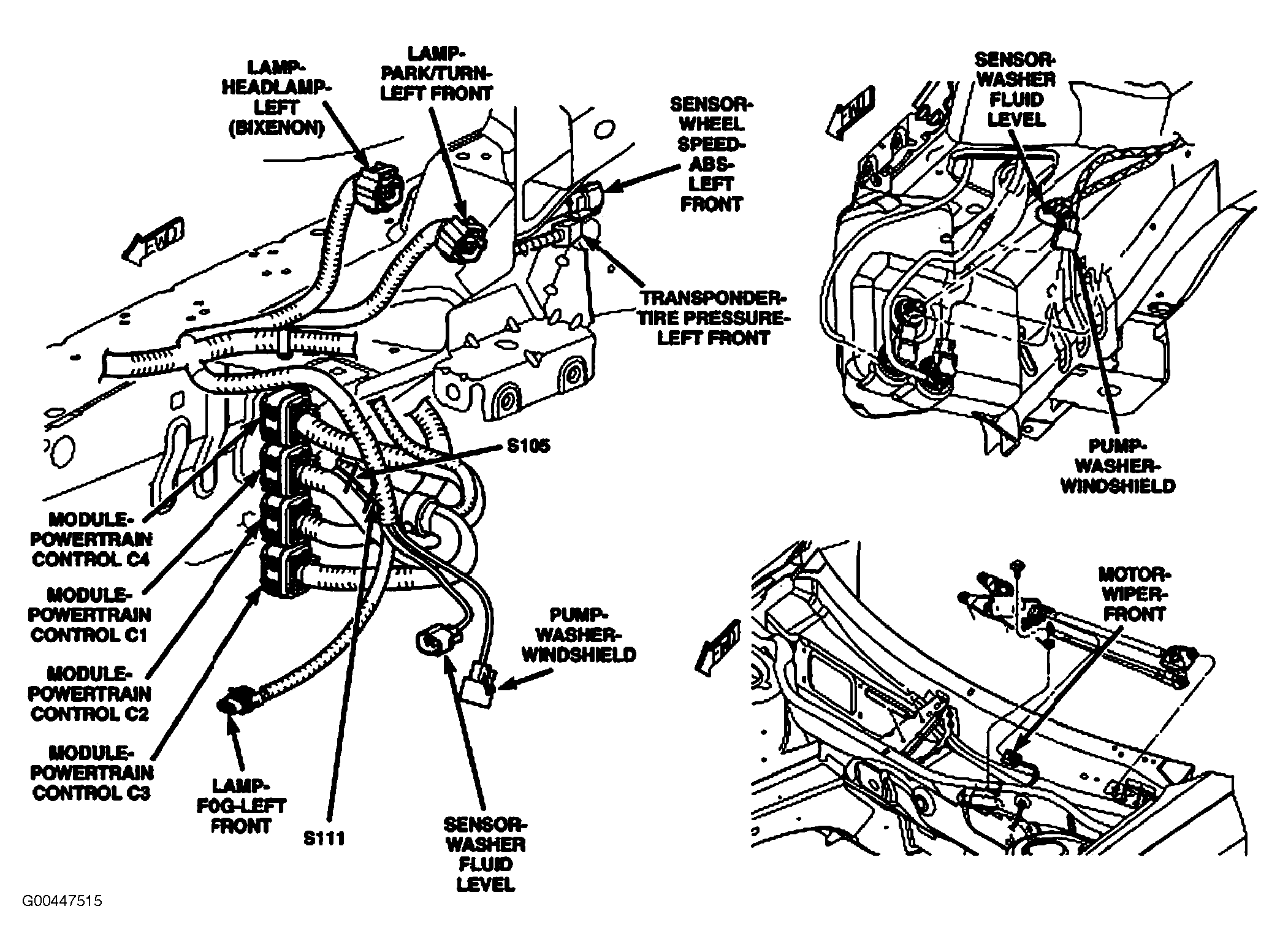

| Powertrain Control Module | Left front of engine compartment. See Figure. |

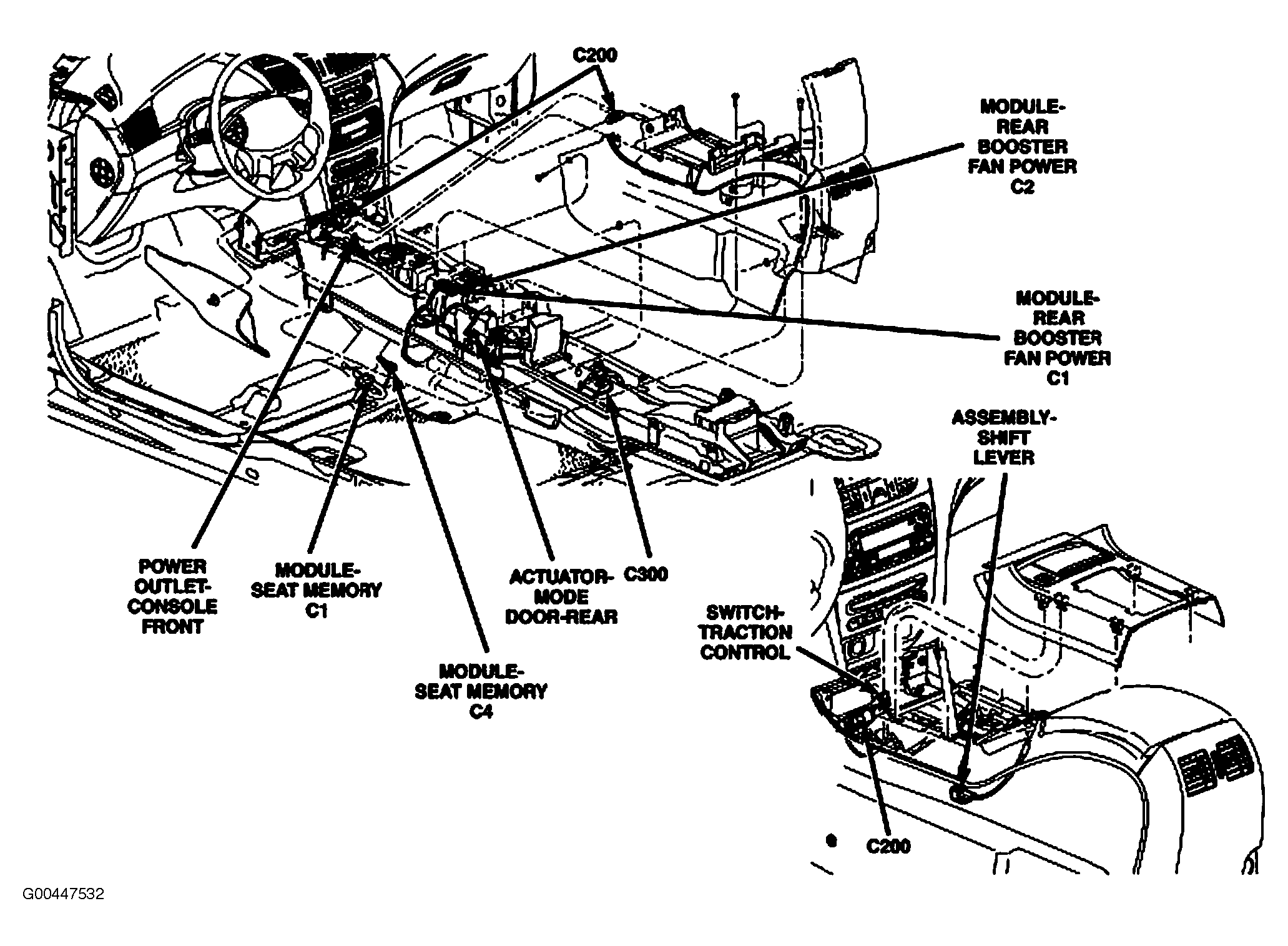

| Rear Booster Fan Power Module | Under rear of center console. See Figure. |

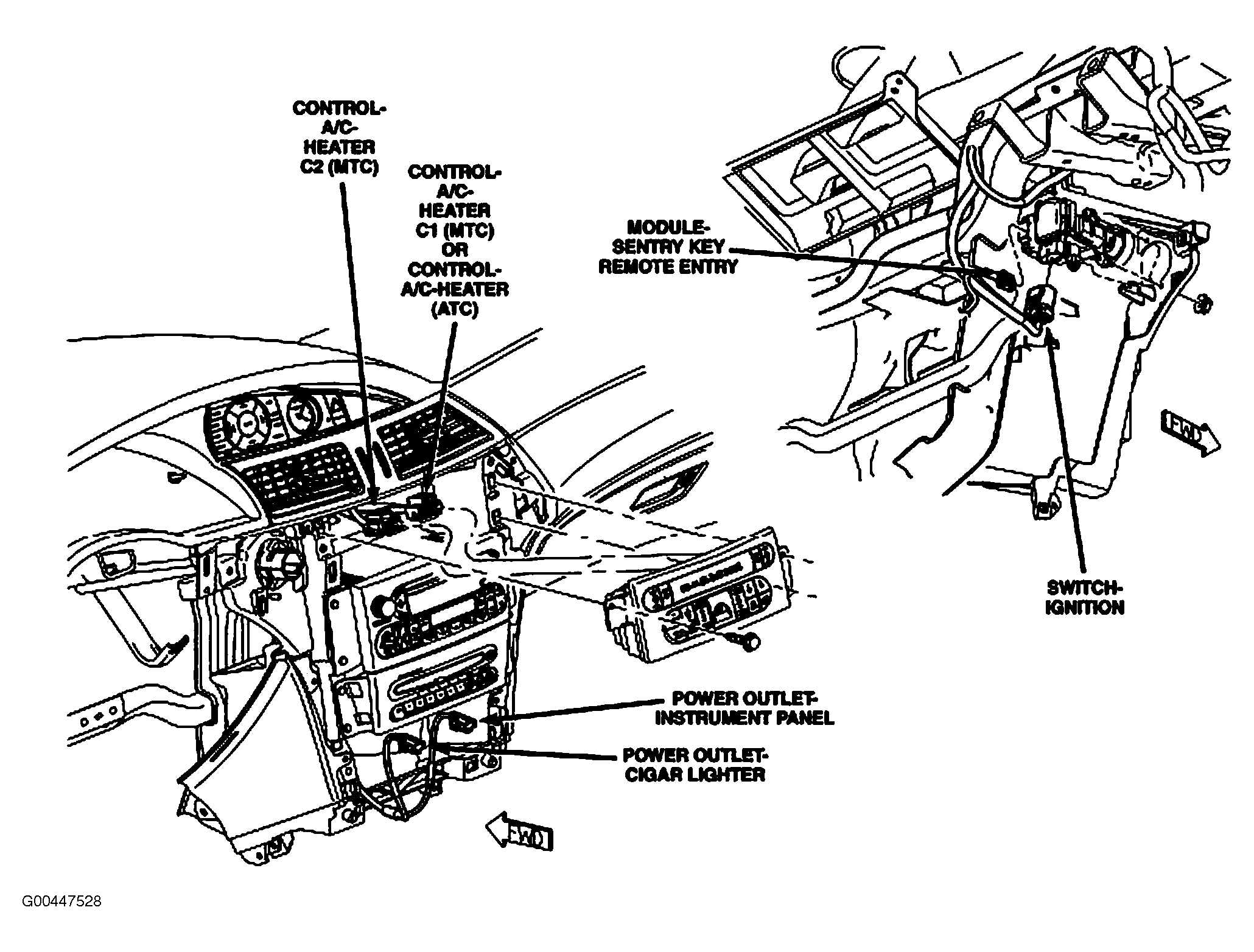

| Remote Entry Key Sentry Module | Left side of dash. See Figure. |

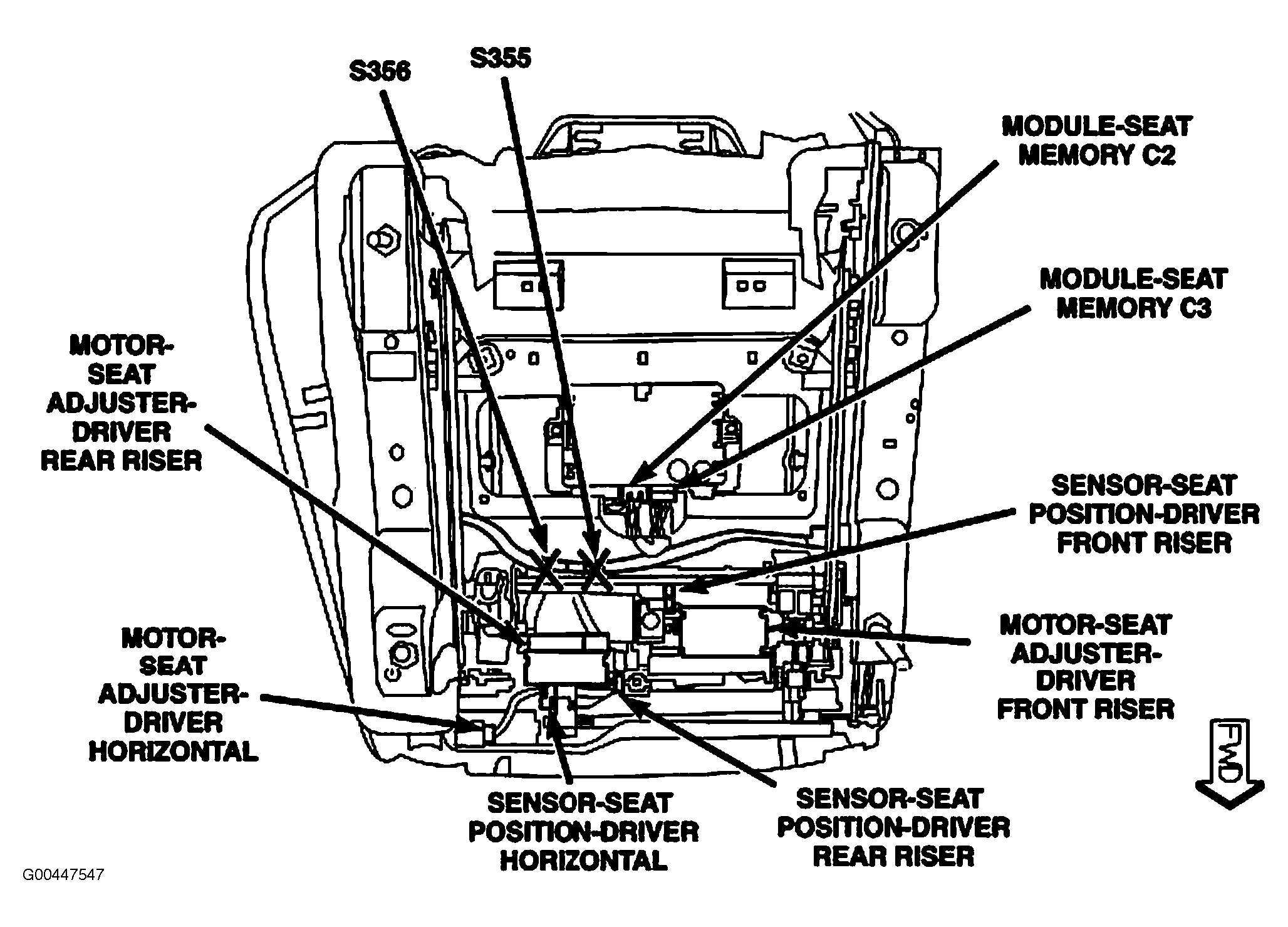

| Seat Memory Module | Under driver's seat. See Figure. |

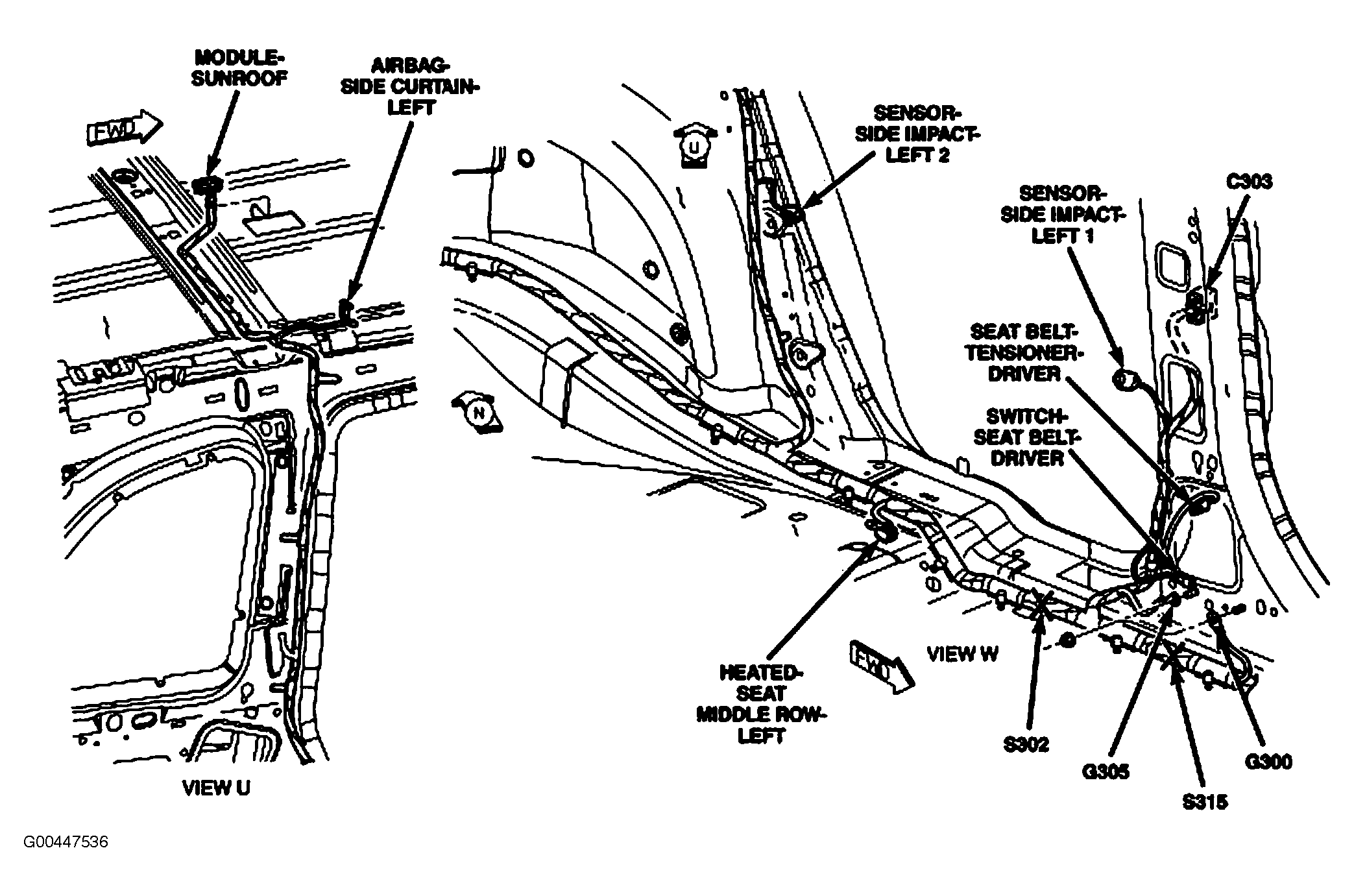

| Sunroof Module | Rear of sunroof. See Figure. |
