Connector Identification
CONNECTOR IDENTIFICATION
| Component | See |
|---|---|

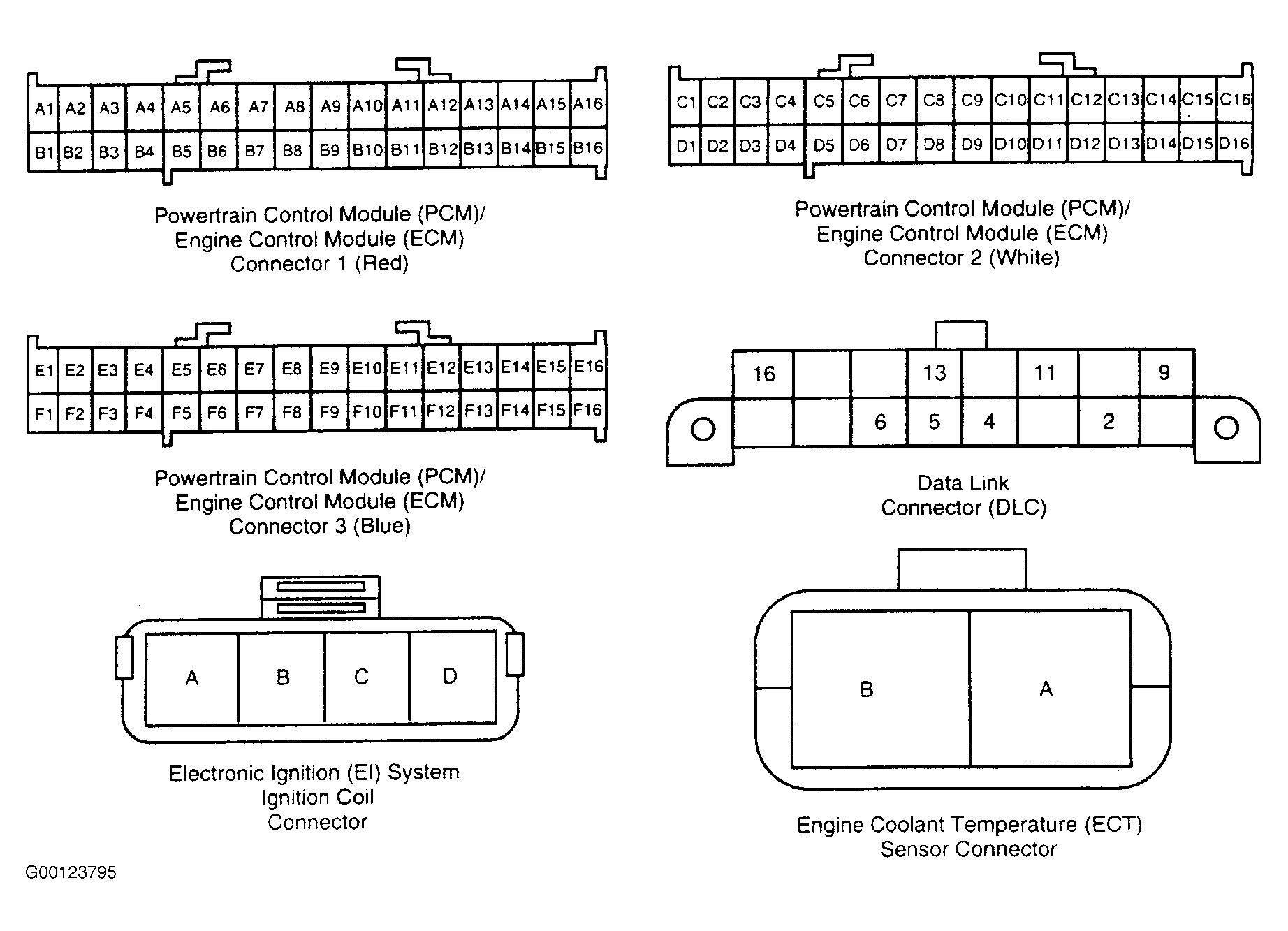

| Powertrain Control Module/Engine Control Module | Fig 1 |
| Data Link Connector | Fig 1 |
| Electronic Ignition System Ignition Coil | Fig 1 |
| Engine Coolant Temperature Sensor | Fig 1 |

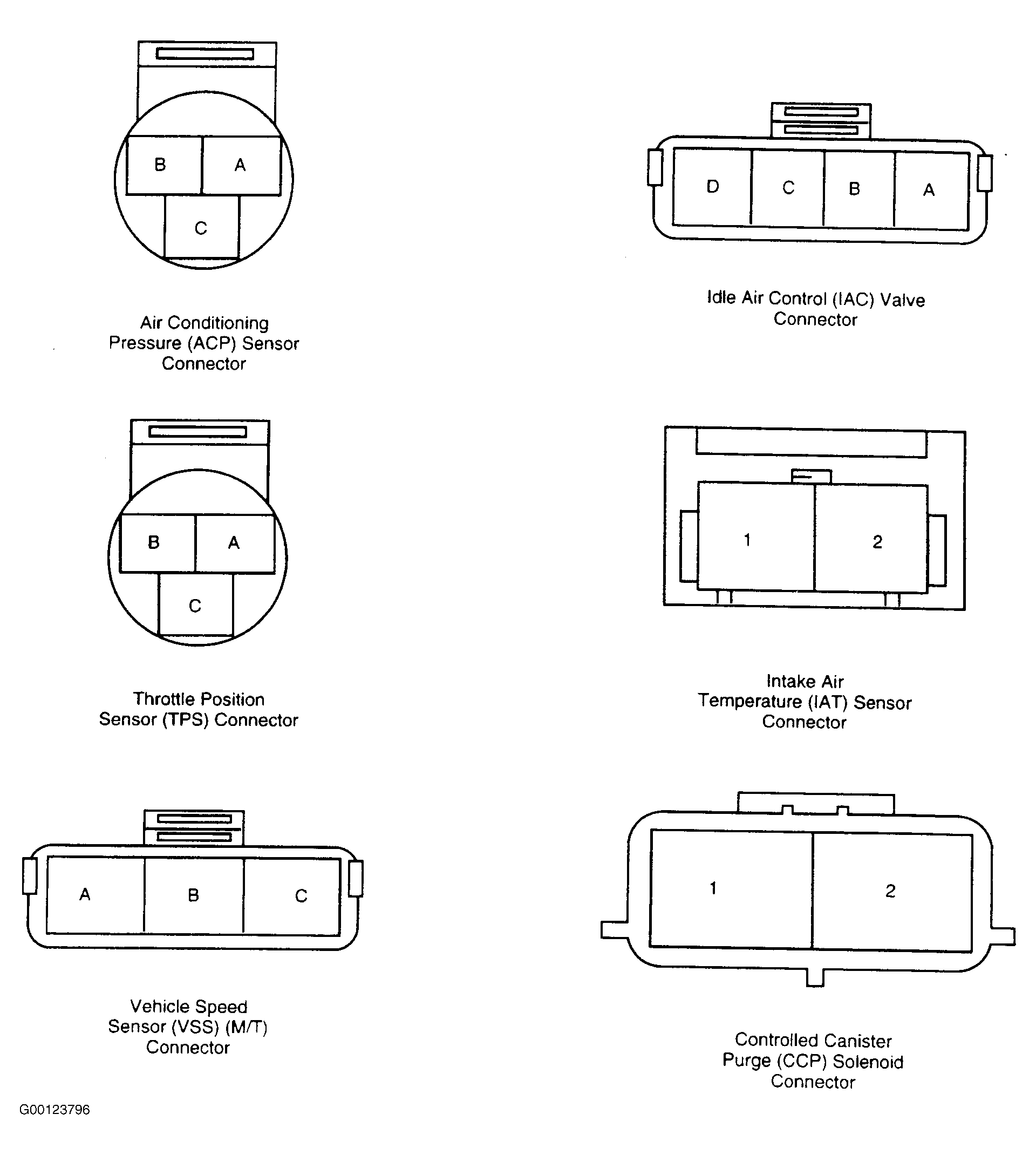

| A/C Pressure Sensor | Fig 2 |
| Idle Air Control Valve | Fig 2 |
| Throttle Position Sensor | Fig 2 |
| Intake Air Temperature Sensor | Fig 2 |
| Vehicle Speed Sensor (M/T) | Fig 2 |
| Controlled Canister Purge Solenoid | Fig 2 |

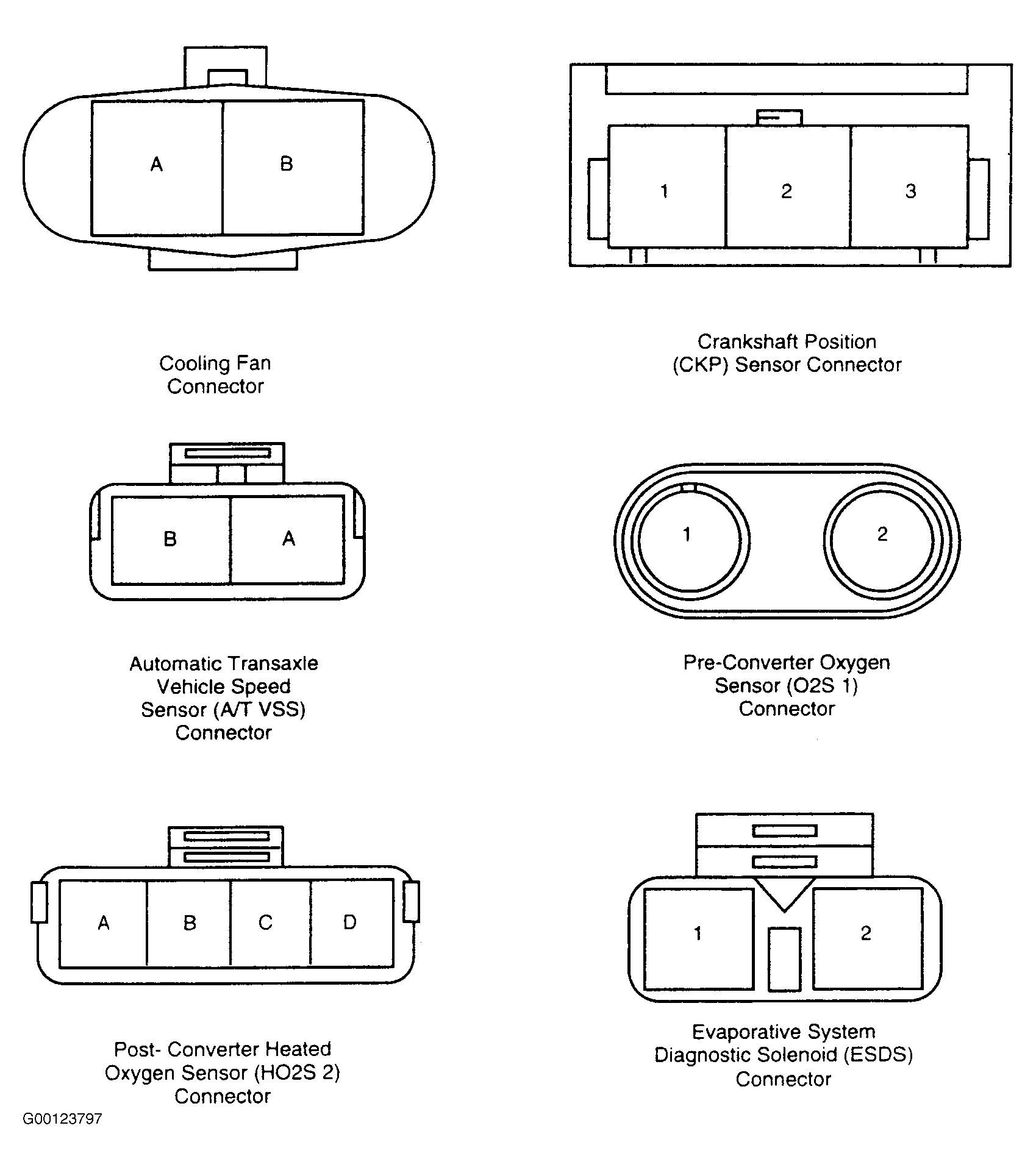

| Cool Fan | Fig 3 |
| Crankshaft Position Sensor | Fig 3 |
| Vehicle Speed Sensor (A/T) | Fig 3 |
| Pre-Converter Oxygen Sensor | Fig 3 |
| Post-Converter Oxygen Sensor | Fig 3 |
| Evaporative System Diagnostic Solenoid | Fig 3 |

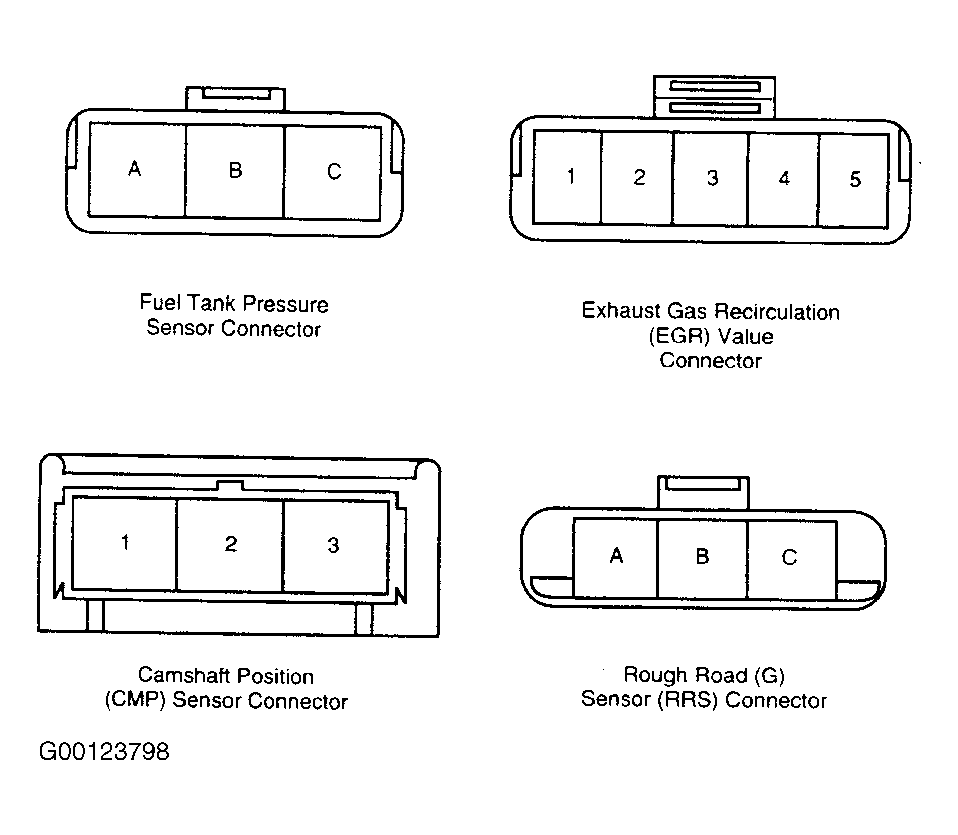

| Fuel Tank Pressure Sensor | Fig 4 |
| Exhaust Gas Recirculation Valve | Fig 4 |
| Camshaft Position Sensor | Fig 4 |
| Rough Road (G) Sensor | Fig 4 |

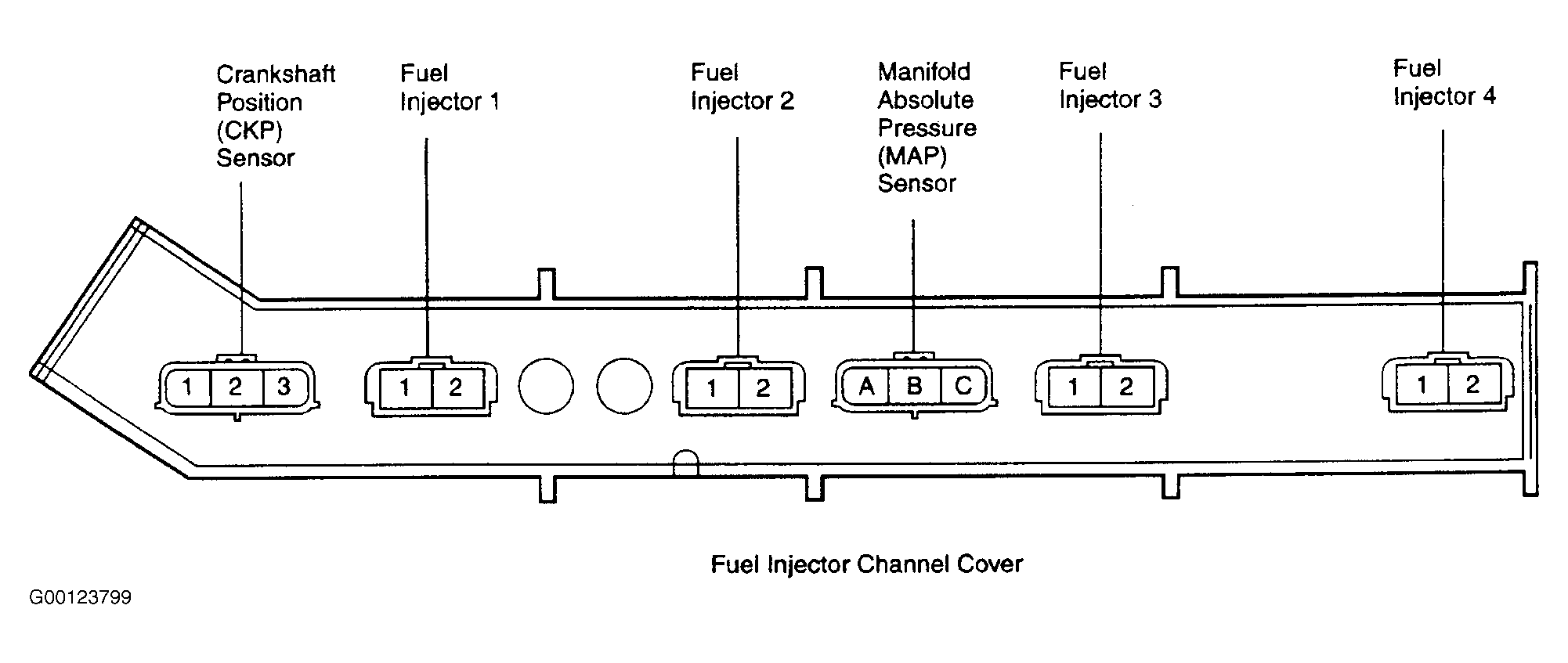

| Fuel Injector Channel Cover | Fig 5 |
