Fuel-Cut System
- Disconnect negative battery cable. On Charade, remove glove compartment subassembly.NOTE: Before installing sub-harness, ensure continuity exists on all sub-harness leads, and ensure no terminals are shorted together.

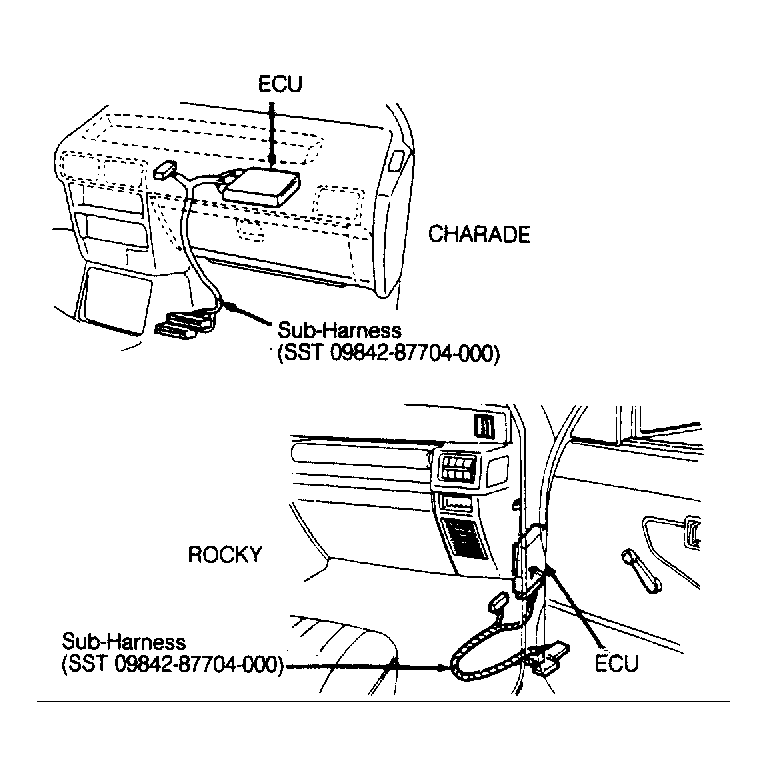

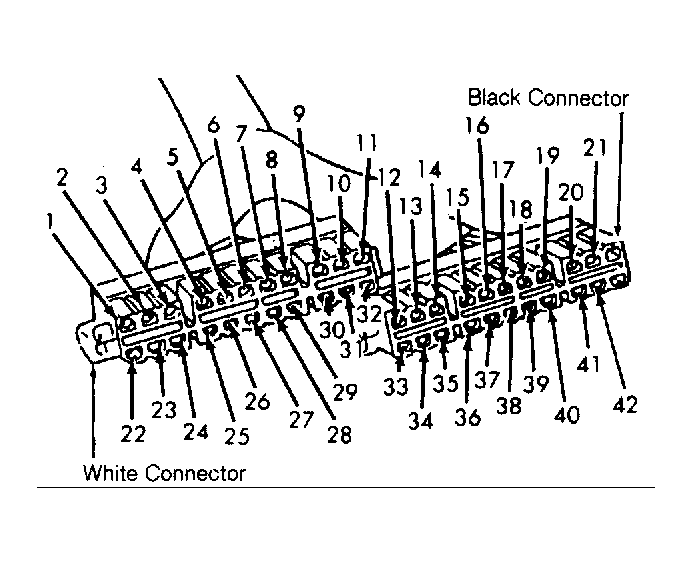

- On all models, connect Sub-Harness (SST 09842-87704-000) between ECU and engine wiring. See Figure . Reconnect negative battery cable. Warm engine to normal operating temperature. Install jumper wire between sub-harness terminals No. 32 and 29 on 1.0L Charade or between sub-harness terminals No. 12 and 39 on all others. See Figure .
- Gradually increase engine speed and note RPM at which engine speed stops increasing. Ensure engine RPM are within specifications. See FUEL-CUT SYSTEM SPECIFICATIONS . Disconnect negative battery cable and remove sub-harness. Reconnect ECU and install battery cable.
FUEL-CUT SYSTEM SPECIFICATIONS
| Application | Engine RPM | |
|---|---|---|
| 1.0L - Fuel-Cut | ||
| A/C On | 1850 | |
| A/C Off | 1550 | |
| 1.0L - Fuel Return | ||
| A/C On | 1500 | |
| A/C Off | 1200 | |
| 1.3L A/T - Fuel-Cut | ||
| A/C On | 2450 | |
| A/C Off | 1800 | |
| 1.3L A/T - Fuel Return | ||
| A/C On | 1700 | |
| A/C Off | 1400 | |
| 1.3L M/T - Fuel Cut | ||
| A/C On | 2250 | |
| A/C Off | 1600 | |
| 1.3L M/T - Fuel Return | ||
| A/C On | 1500 | |
| A/C Off | 1200 | |
| 1.6L - Fuel-Cut | ||
| A/C On | 2300 | |
| A/C Off | 1650 | |
| 1.6L - Fuel Return | ||
| A/C On | 1600 | |
| A/C Off | 1300 | |
