CCV System

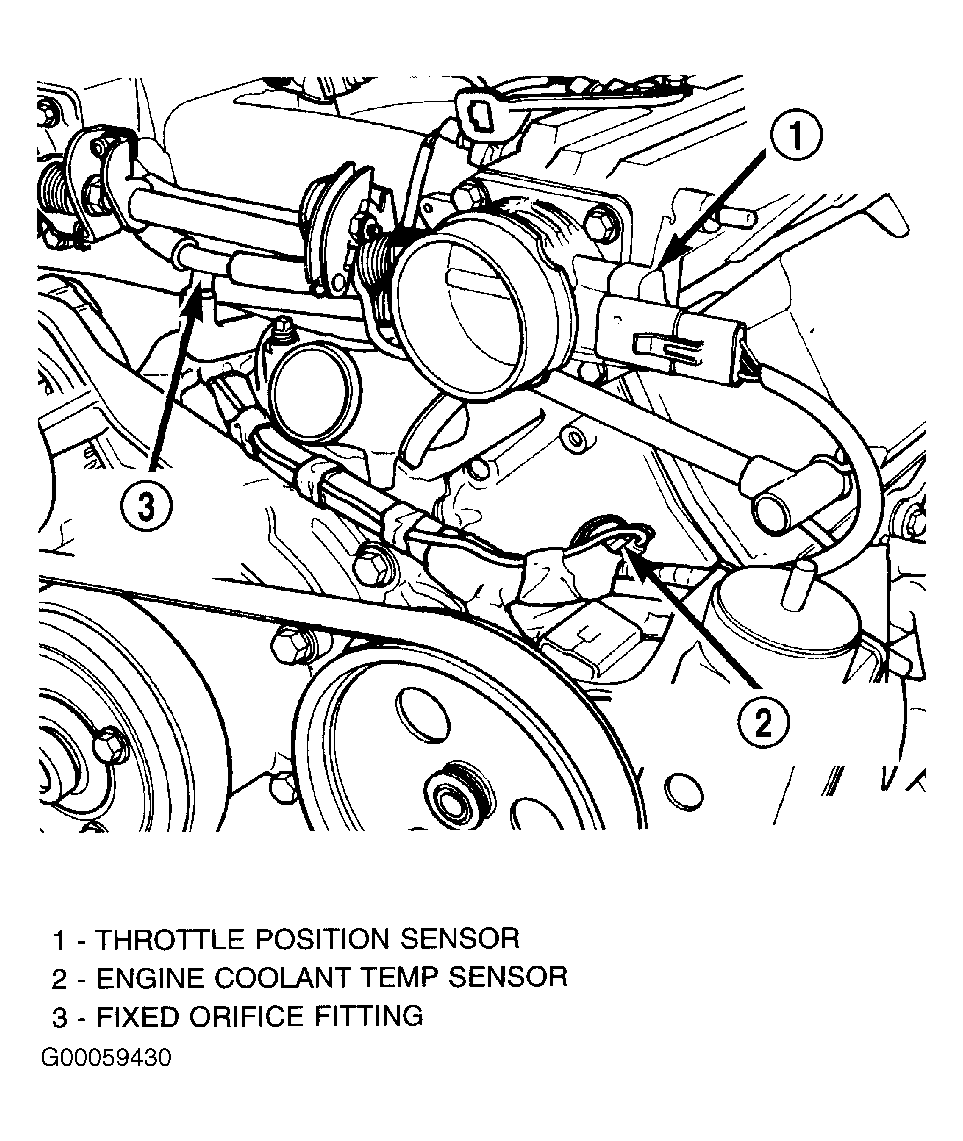

Fig 1: Fixed Orifice Fitting
G00059430Courtesy of DAIMLERCHRYSLER CORPORATION

It meters amount of crankcase vapors drawn out of engine. The fixed orifice fitting is grey in color. See Fig 1 .

When engine is operating, fresh air enters engine and mixes with crankcase vapors. Manifold vacuum draws vapor/air mixture through fixed orifice and into intake manifold. The vapors are then consumed during engine combustion.
