Camshaft Position Sensor: Description

The camshaft position sensor is mounted in the front of the timing case cover (Fig 1 ). The bottom of the sensor is positioned in front of the camshaft sprocket.

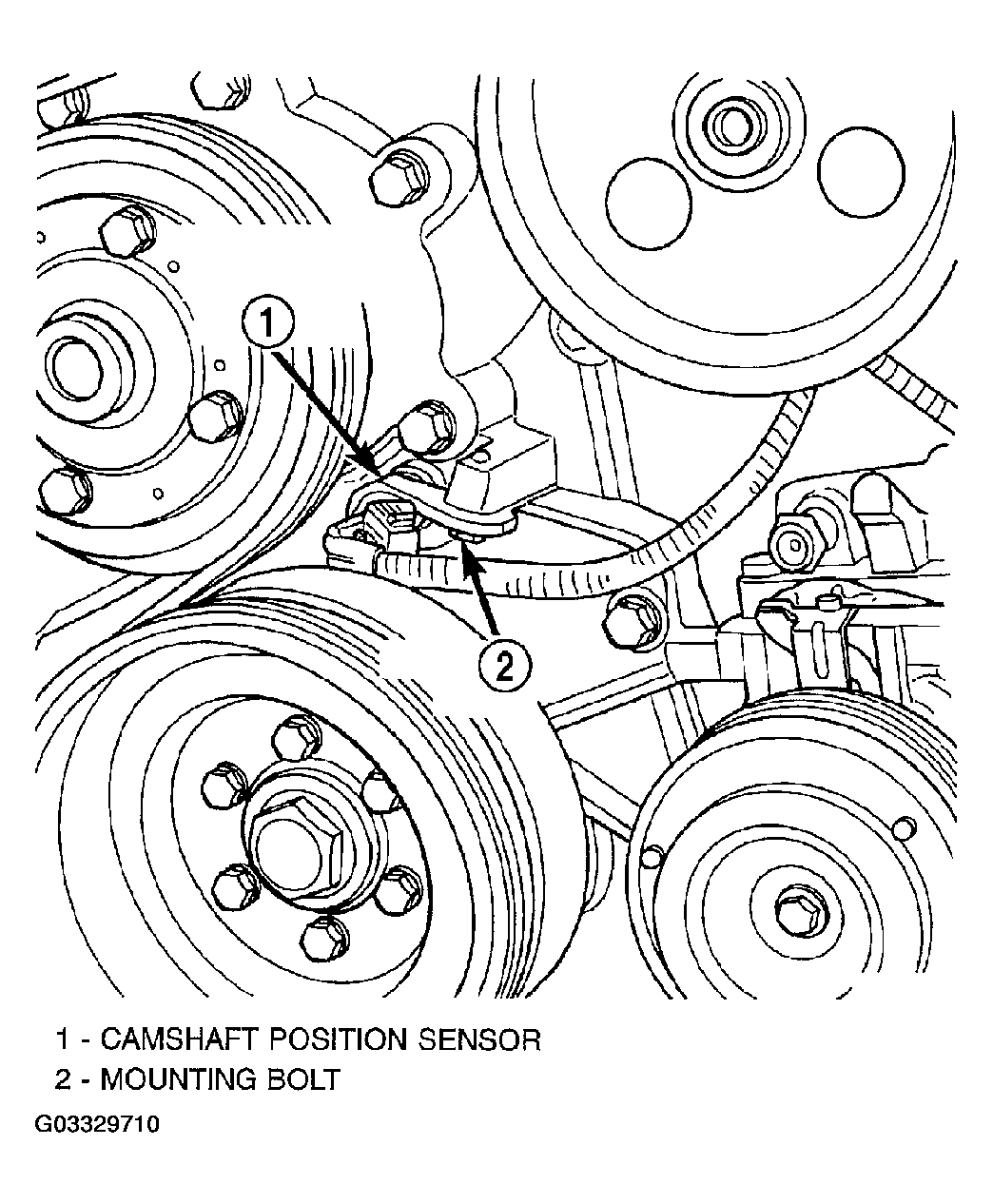

Fig 1: Locating Camshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.
