Ignition Coil: Installation

The system uses two epoxy filled coil packs mounted on a bracket at the rear of the engine (Figure ). The coil pack on the left side, contains 3 separate coils and fires cylinders 1, 2, 3, 4, 6, and 7. The coil pack on the right side, contains 2 individual coils and fires cylinders 5, 8, 9, and 10.

1. Install coil pack. Tighten mounting screws to 11 N.m (95 in. lbs.) torque.
2. Connect electrical connector to coil pack (Fig 1 ).

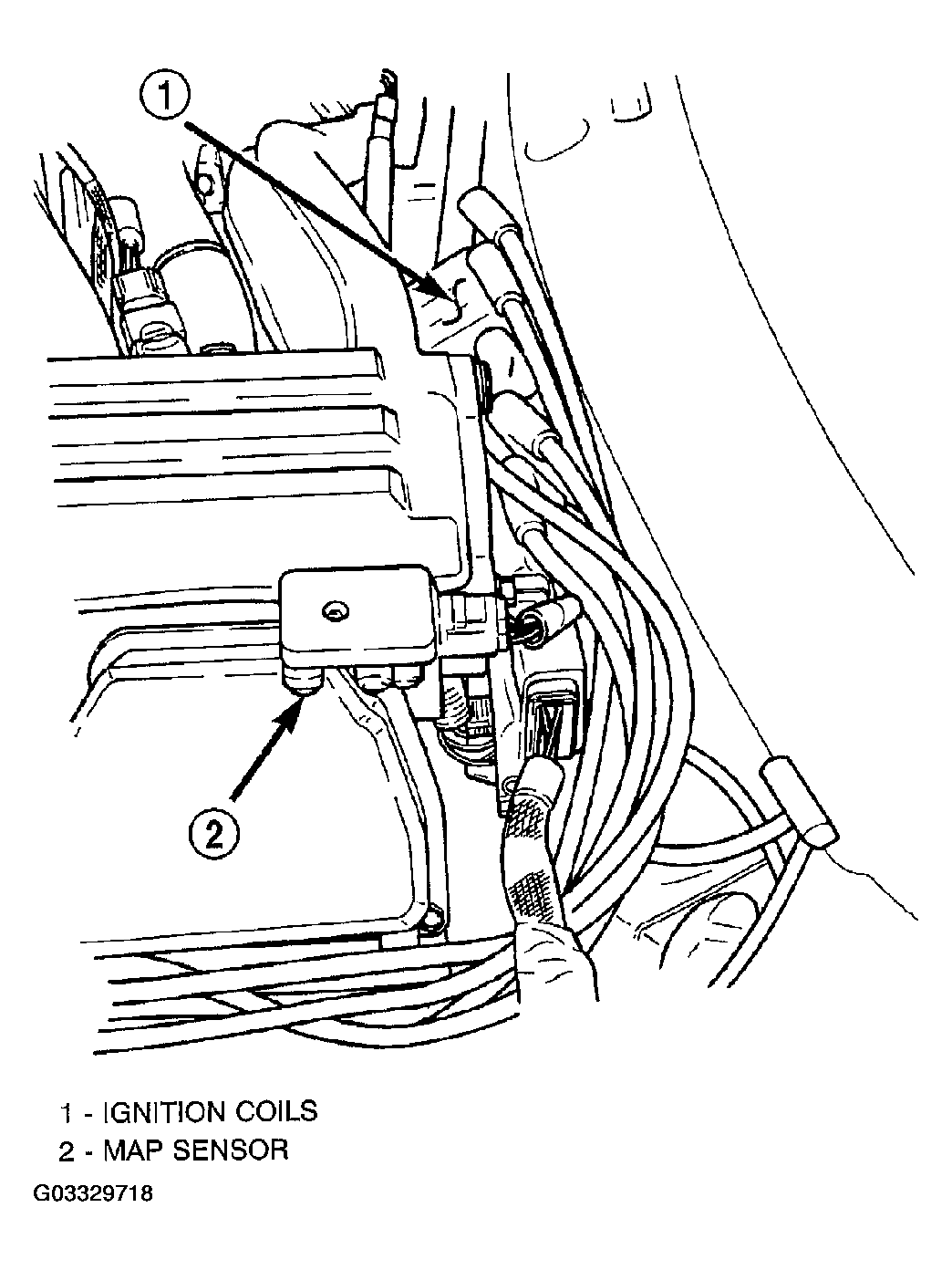

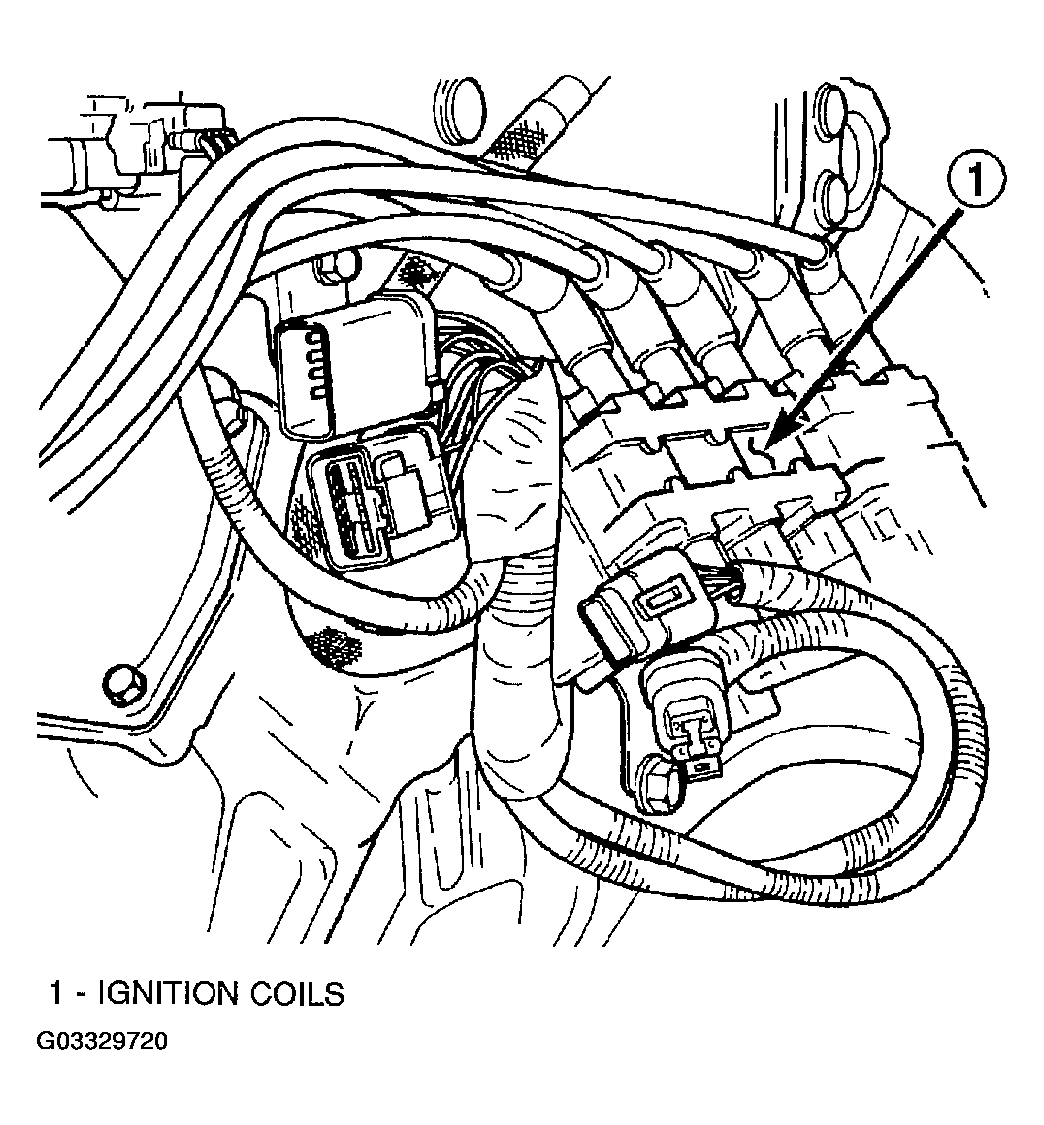

   Fig 1: Identifying Ignition Coil Packs

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install cowl cover. Refer to BODY .
