Ignition Coil: Removal

  1. Release the fuel pressure, refer to the FUEL PRESSURE RELEASE .
  2. Disconnect the negative battery cable.
  3. Remove the air cleaner assembly, refer to the AIR INTAKE for more information.
  4. Remove the Intake Manifold, refer to the INTAKE MANIFOLD for more information.
  5. Unlock and disconnect the electrical connector at the ignition coils (Fig 1 ) and (Fig 2 ).
    Fig 1: Identifying Front Coil Electrical Connector
    G02681867Courtesy of DAIMLERCHRYSLER CORP.
    Fig 2: Identifying Rear Coil Electrical Connector
    G02681868Courtesy of DAIMLERCHRYSLER CORP.
  6. Twist and remove the ignition cables from the ignition coil.
  7. Remove the 4 bolts (Fig 3 ).

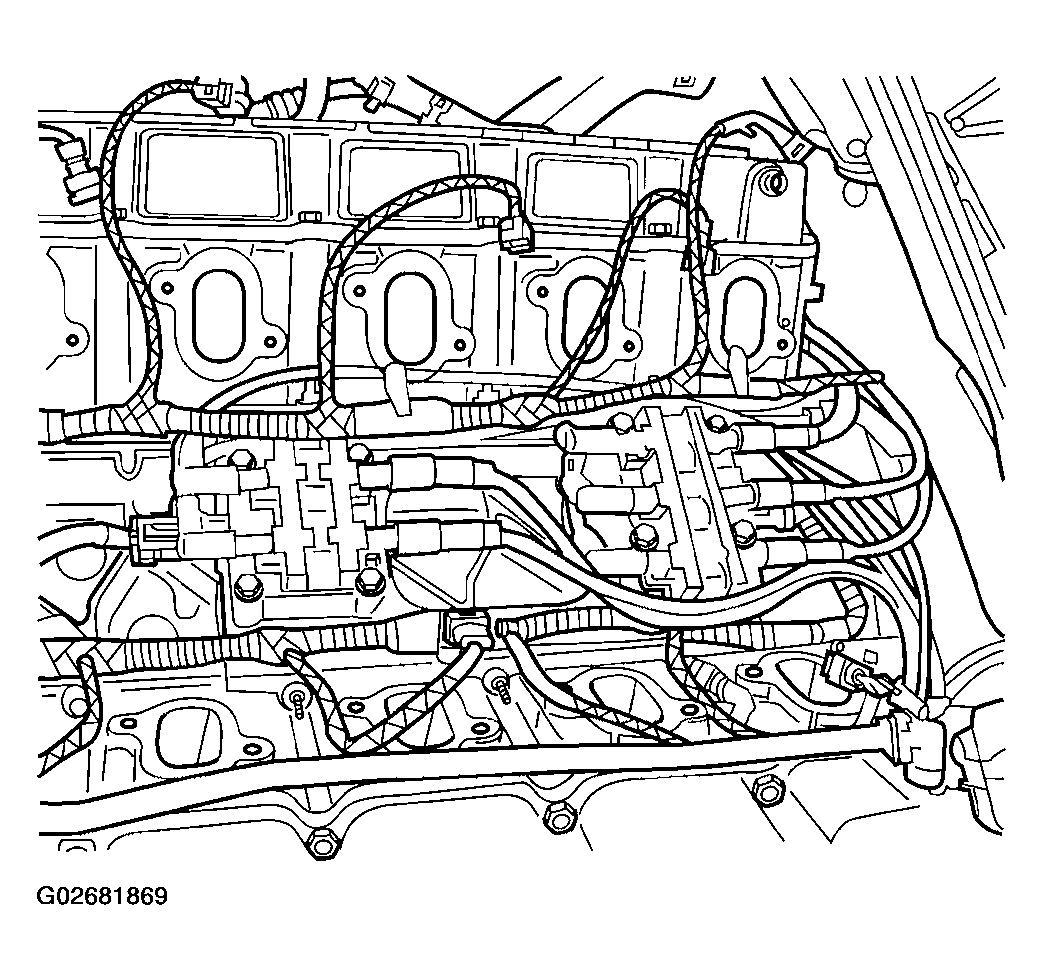

    Fig 3: Removing Ignition Coils
    G02681869Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove ignition coil.
