Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

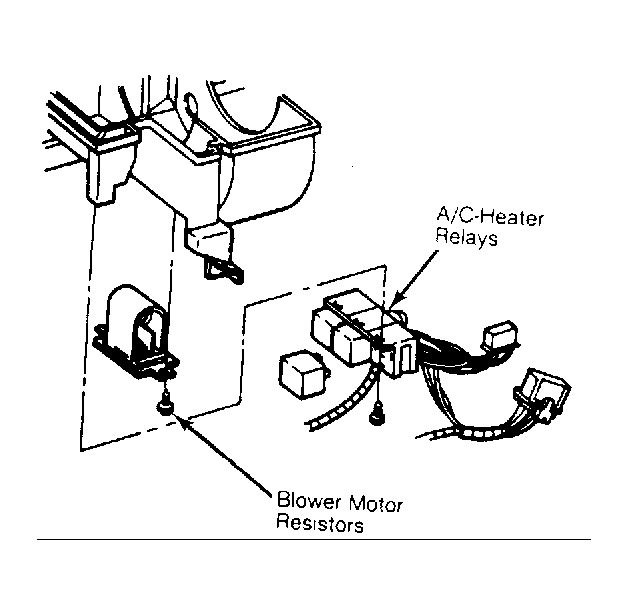

| Blower Motor Resistors | Under dash, on bottom of A/C-heater assembly. See Figure. |

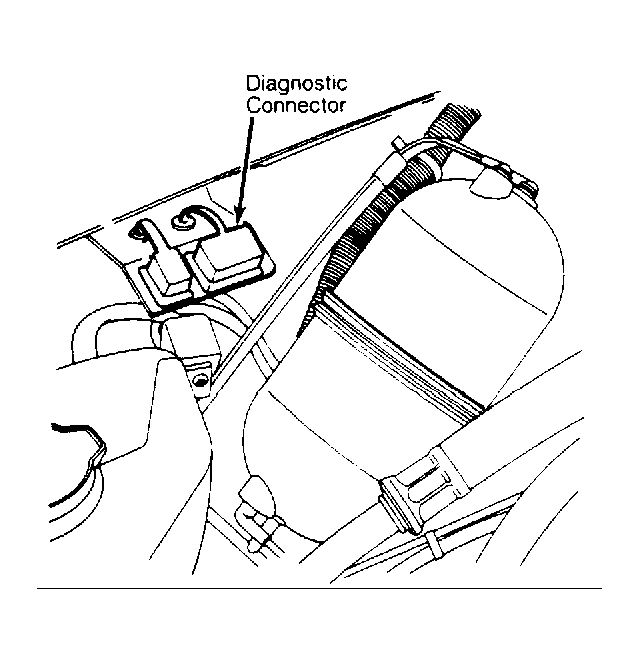

| Diagnostic Connector | On right fender panel, next to vacuum reservoir. See Figure. |
| Fuse Block | In engine bay, behind left headlight. |
| Idle Speed Regulator | On air inlet hose, above left cylinder head. |

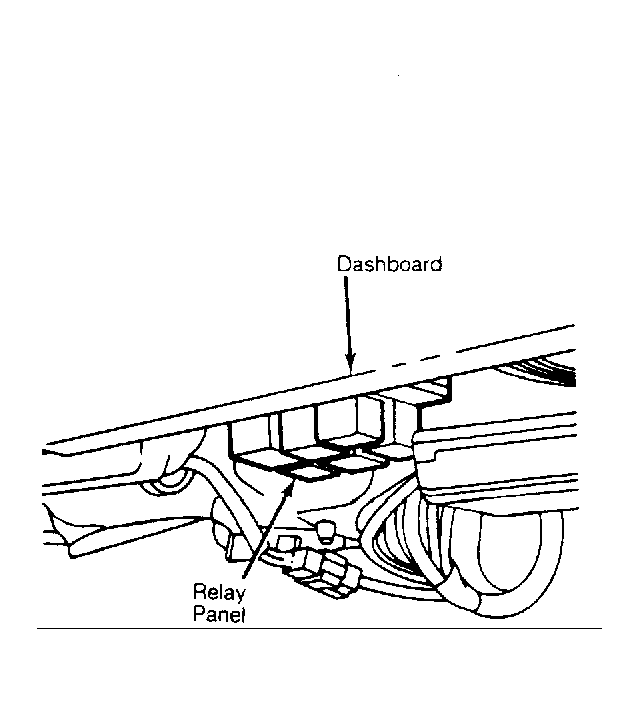

| Relay Panel | Under dash, below A/C-heater assembly. See Figure. |
