Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

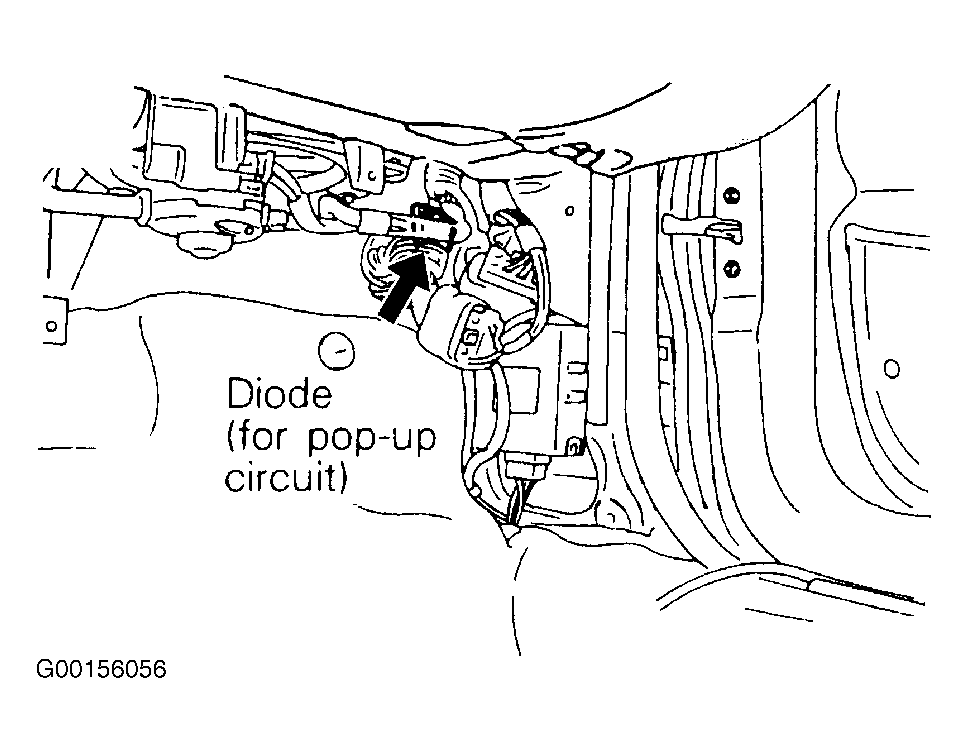

| Diode (For Pop-Up Circuit) | Behind Right Front Kick Panel. See Fig 1 . |

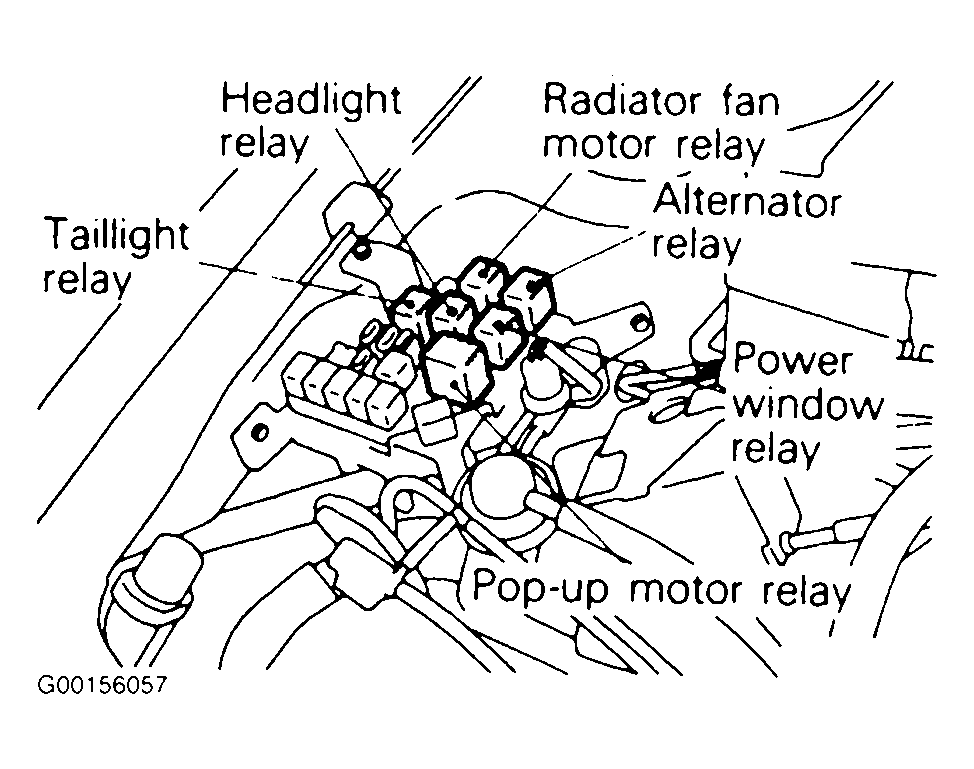

| Headlight Relay | In Engine Compartment, In Front Of Right Strut Tower. See Fig 2 . |

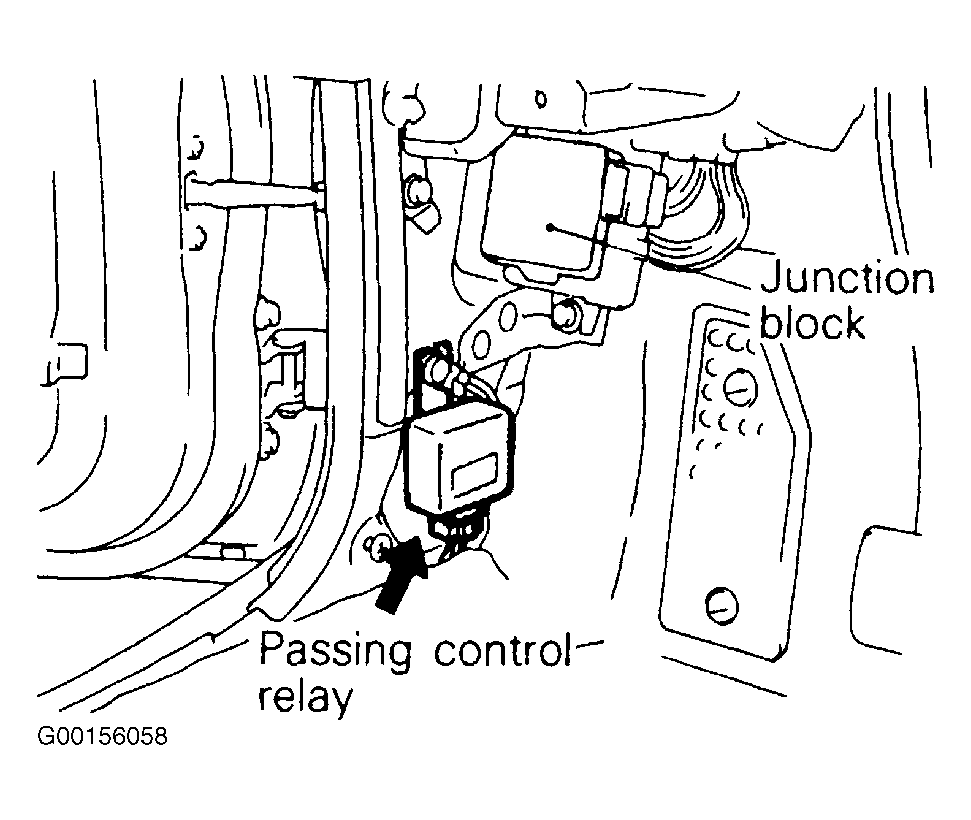

| Passing Control Relay | Behind Left Front Kick Panel. See Fig 3 . |
| Pop-Up Relay | In Engine Compartment, In Front Of Right Strut Tower. See Fig 2 . |
| System Ground No. 2 | Left Front Corner Of Engine Compartment. |
| System Ground No. 6 | Far Right Side Of Instrument Panel. To Right Of Glove Box. |
| System Ground No. 8 | Behind Left Kick Panel, Above Passing Control Relay. |
