Connector Identification

Connector	See Figure
Airflow Sensor Connector (Non-Turbo)	Fig 1
Airflow Sensor Connector (Turbo)	Fig 2
Coolant Sensor Connector	Fig 3
Crank Angle/TDC Sensor Connector	Fig 4
ECU Connectors	Fig 5-Fig 7
Fuel Injector Resistor Connector	Fig 8
Idle Speed Control Actuator	Fig 9
Ignition Coil Female Connector	Fig 10
Ignition Coil Male Connector	Fig 11
Inhibitor Switch Connector	Fig 12
MPI Control Relay Connector	Fig 13
Oxygen Sensor Connector	Fig 14
Power Transistor Connector	Fig 15
TPS Connector	Fig 16

Terminal	Wire Color	Function
101	Black	Ground
102	Not Used	Not Used
103	Red/Black	Battery Back-Up
104	Black/Yellow	Park/Neutral Sense (A/T)
n/a	Black	Ground (M/T)
105	Orange	Oxygen (O2) Sensor Heater (Non-Turbo)
106	Black	Ground
107	Red	Power Source
108	Black/Yellow	Inhibitor Switch (A/T)
"	"	Starter Relay (M/T)
109	White	Tachometer
110	Black/White	Ignition Switch

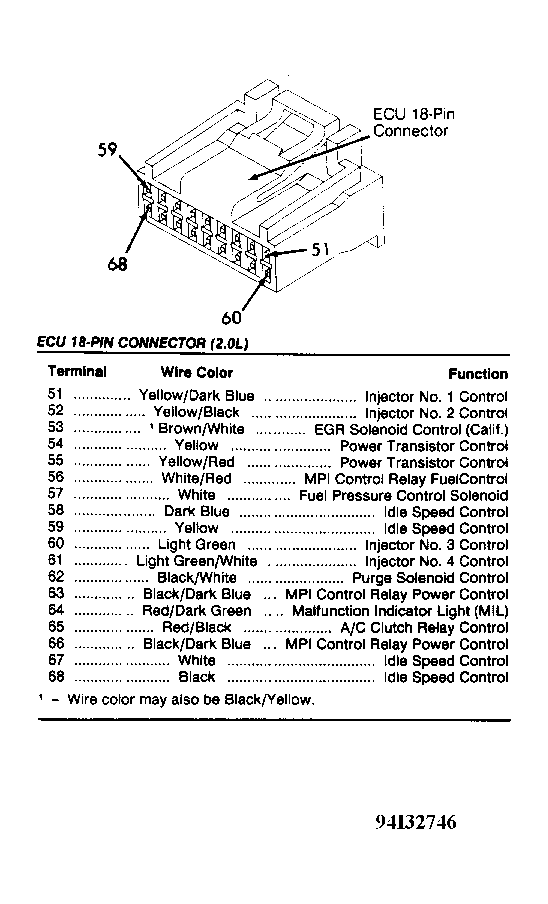

Terminal	Wire Color	Function
51	Yellow/Dark Blue	Injector No. 1 Control
52	Yellow/Black	Injector No. 2 Control
53	Brown/White	EGR Solenoid Control (Calif.)
54	Yellow	Power Transistor Control
55	Yellow/Red	Power Transistor Control
56	White/Red	MPI Control Relay Fuel Control
57	White	Fuel Pressure Control Solenoid
58	Dark Blue	Idle Speed Control
59	Yellow	Idle Speed Control
60	Light Green	Injector No. 3 Control
61	Light Green/White	Injector No. 4 Control
62	Black/White	Purge Solenoid Control
63	Black/Dark Blue	MPI Control Relay Power Control
64	Red/Dark Green	Malfunction Indicator Light (MIL)
65	Red/Black	A/C Clutch Relay Control
66	Black/Dark Blue	MPI Control Relay Power Control
67	White	Idle Speed Control
68	Black	Idle Speed Control

Terminal	Wire Color	Function
1	Yellow	Diagnostic Connector
2	White	Diagnostic Connector
3	Black/Red	Pressure Meter
4	White	Oxygen Sensor
5	Yellow/Black	Power Steering Pressure Switch
6	Dark Green	Idle Switch
7	Black/Dark Green	Engine Coolant Switch For A/C
8	Dark Green/Orange	Intake Air Temp. Sensor
9	White	Detonation Sensor (Turbo)
10	Dark Green/Dark Blue	Airflow Sensor
11	Red/Dark Blue	ABS Control Unit
12	Yellow/Black	Ignition Timing Adjustment
13	Not Used	Not Used
14	Dark Green	Idle Switch
15	Dark Blue/Yellow	EGR Temp. Sensor (Calif.)
16	Dark Green/Yellow	Barometric Pressure Sensor
17	Dark Green/Black	Ground Position Sensor
18	Yellow/White	Distance Sensor
19	Dark Green/White	Throttle Position Sens
20	Yellow/Dark Green	Coolant Temp. Sensor
21	Black	Crank Angle Sensor
22	White	Top Dead Center Sensor
23	Dark Green/Red	Sensor 5-Volt Power
24	Dark Green/Black	Sensor Ground
