Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

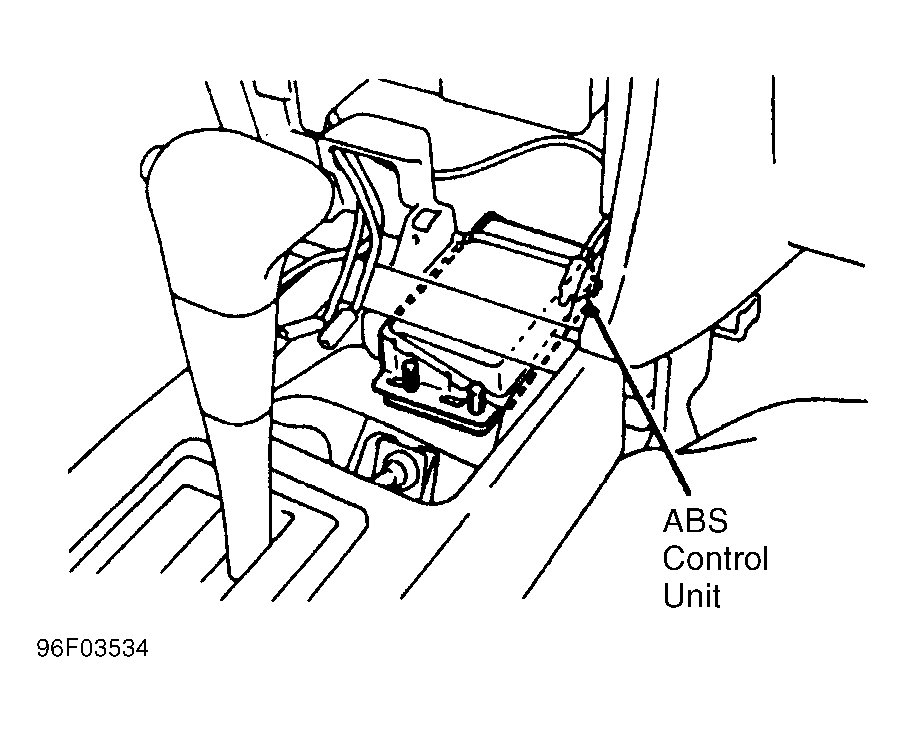

| ABS Control Unit | Below center of dash, forward of center console. See Figure . |
| ABS Hydraulic Unit | Left side of engine compartment. |
| A/C Belt Lock Controller (1.8L) | Mounted on evaporator case. |
| A/C Compressor Control Unit | Mounted on evaporator case. |

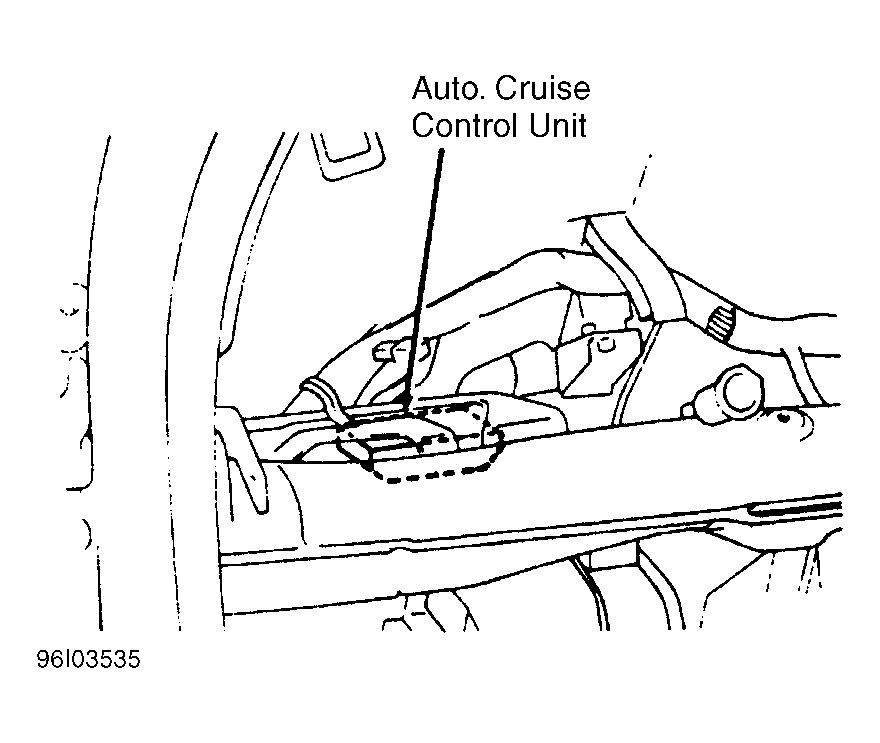

| Auto. Cruise Control Unit | On bracket, behind left side of dash. See Figure . |
| Daytime Running Lamps Control Unit (Summit Wagon) | Left rear corner of engine compartment. |
| Door Lock Control Unit | In passenger compartment fuse/relay block. |

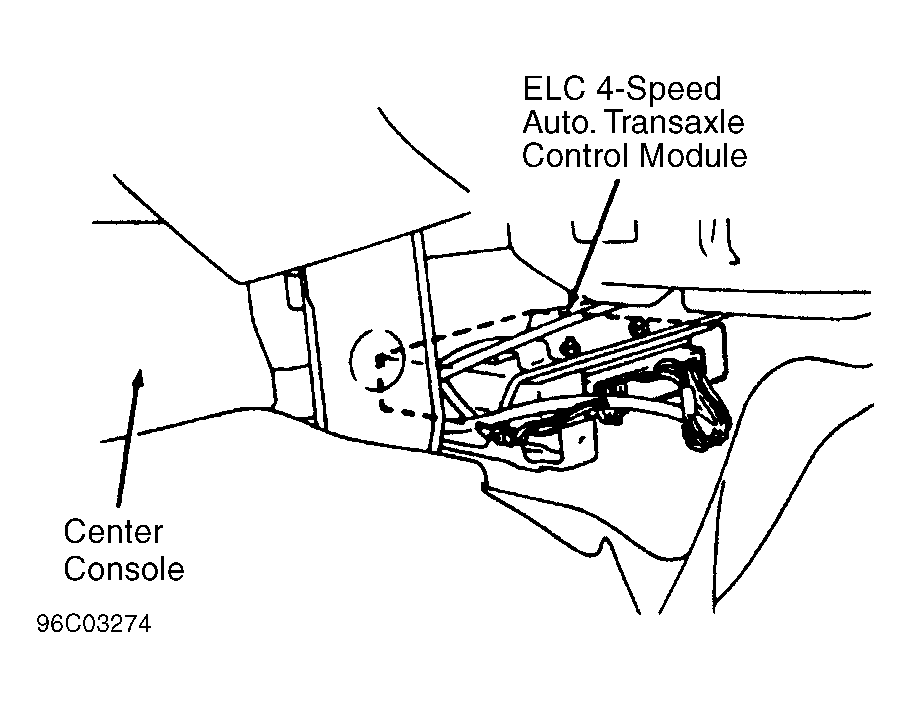

| ELC 4-Speed Auto. Transaxle Control Module | Behind center of dash. See Figure . |

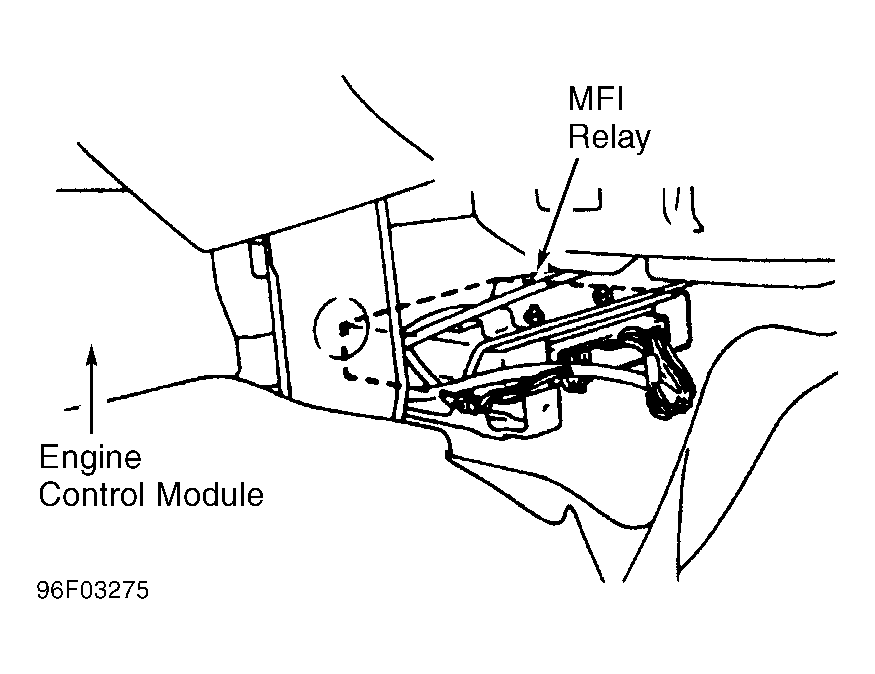

| Engine Control Module | Behind right side of dash, above kick panel. See Figure . |
| Fuel Pump Relay Module | Behind center of dash. |
| Keyless Entry Control Unit (EXPO) | Right side of cargo area. |
| Keyless Entry Control Unit (EXPO LRV/Summit Wagon) | Left side of cargo area. |
| SRS Air Bag Control Unit (Summit Wagon) | Below front of console. |
| SRS-ECU (EXPO) | Below front of console. |
