Tachometer Test: Turbo

Insert paper clip into engine revolution speed detection terminal located in engine compartment. See Fig 1 . Connect external tachometer to paper clip. Start engine and compare tachometers at specified engine speed. See TACHOMETER SPECIFICATIONS  . Replace tachometer if difference is excessive.

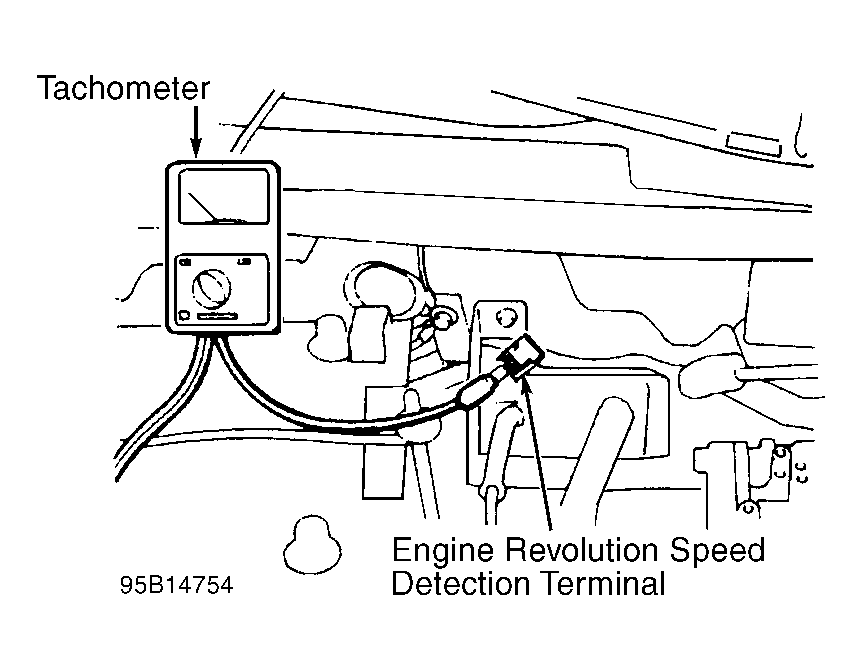

Fig 1: Testing Tachometer (Turbo)

Courtesy of CHRYSLER CORP.
