Notes
Component Disassembly & Reassembly: Notes
NOTE:
For structural view of 4EAT transaxle, see
Fig 1
.

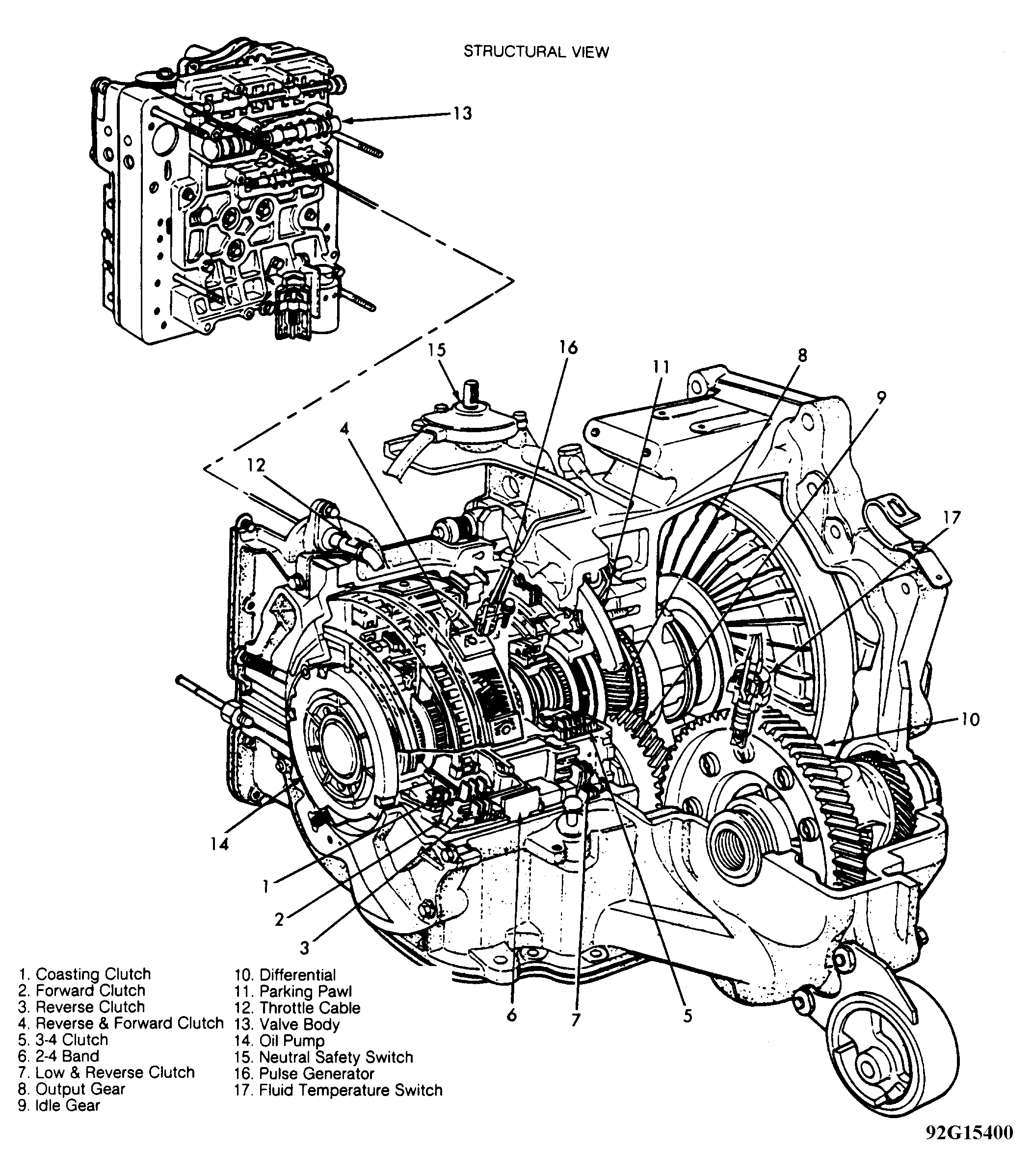

Fig 1: View of 4EAT Transaxle
Courtesy of FORD MOTOR CO.
