Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

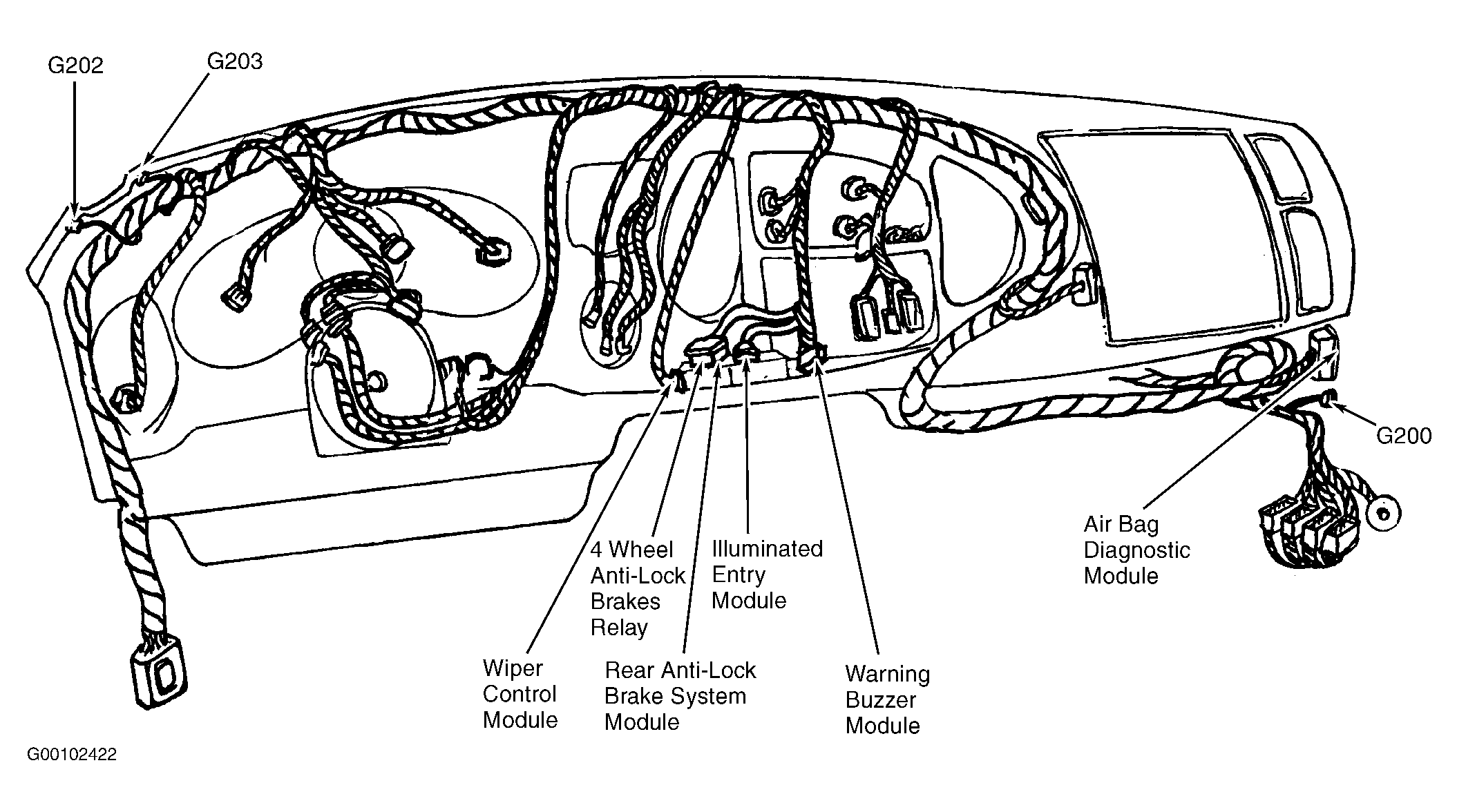

| Air Bag Diagnostic Module | Behind right side of dash. See Figure . |

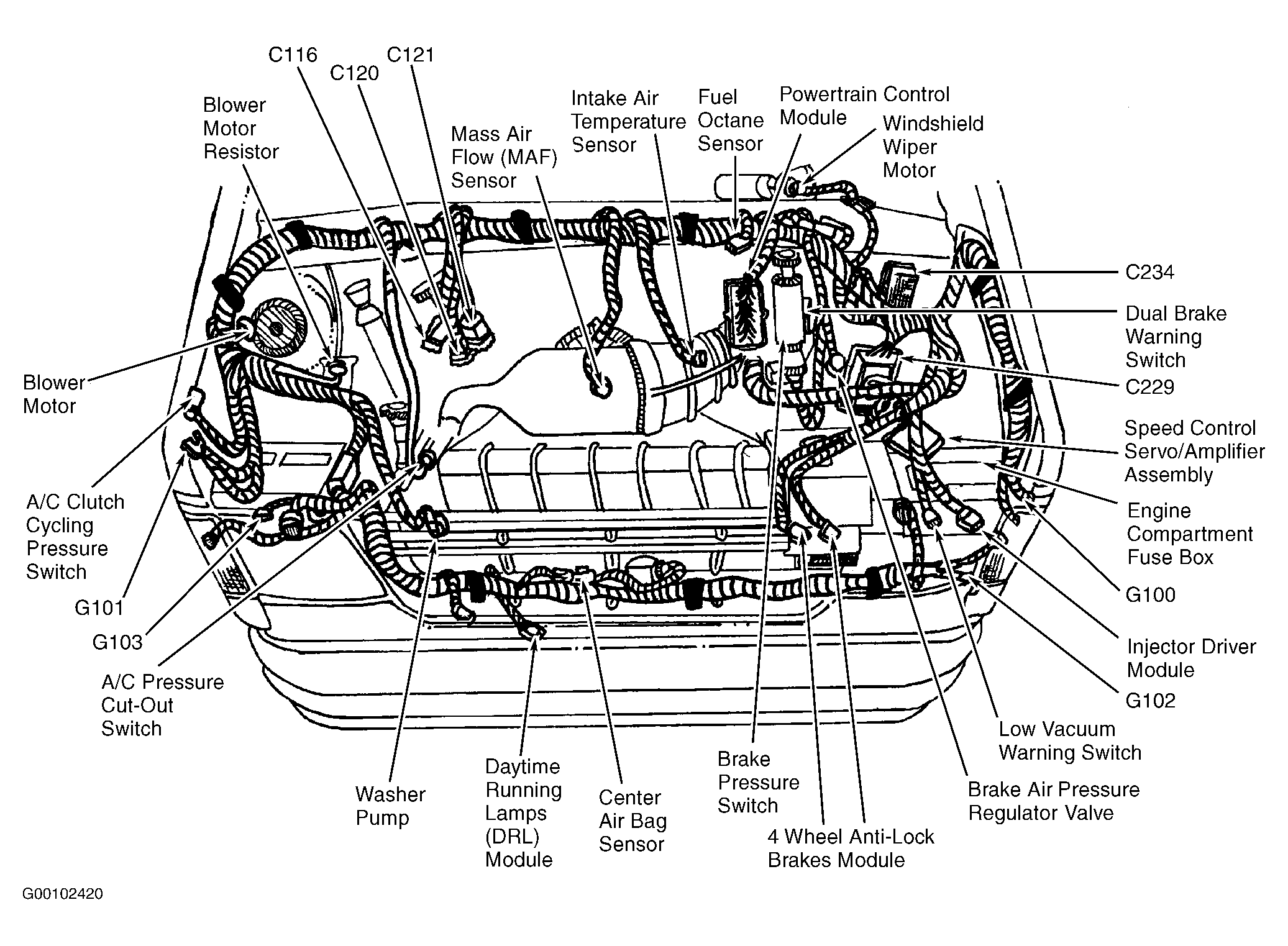

| Daytime Running Lamps (DRL) Module | In right front of engine compartment, near horns. See Figure . |

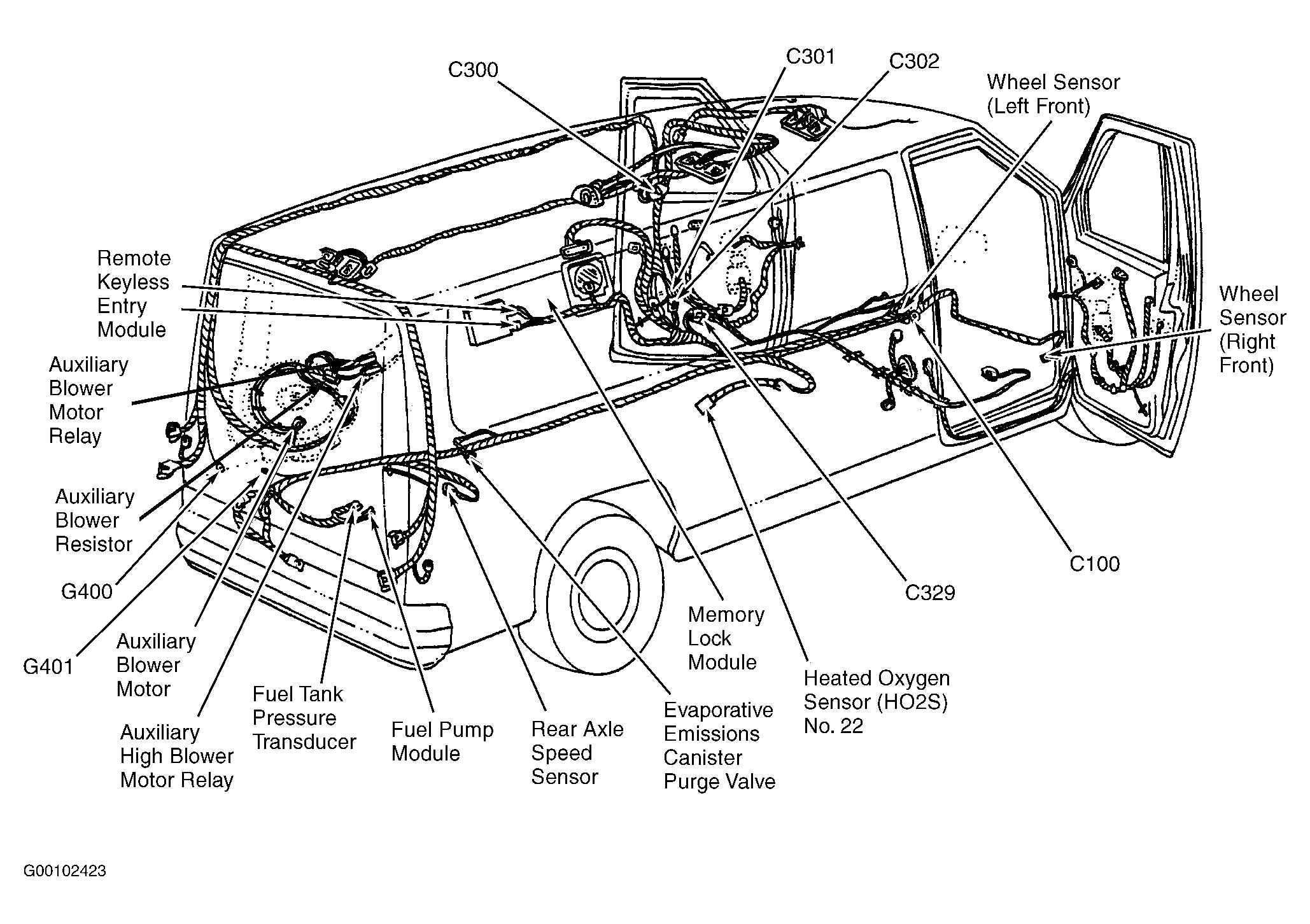

| Fuel Pump Module | Under vehicle, in fuel tank. See Figure . |
| Illuminated Entry Module | Behind center of dash. See Figure . |
| Injector Driver Module | Left front side of engine compartment. See Figure . |
| Memory Lock Module | Behind left "B" pillar. See Figure . |
| Powertrain Control Module | In left rear of engine compartment, near brake master cylinder. See Figure . |
| Rear Anti-Lock Brake System Module | Behind center of dash. See Figure . |
| Remote Keyless Entry Module | Behind left "B" pillar. See Figure . |
| Warning Buzzer Module | Behind center of dash. See Figure . |
| Wiper Control Module | Behind center of dash. See Figure . |
| 4 Wheel Anti-Lock Brakes Module | On left front frame rail. See Figure . |
