Main Control

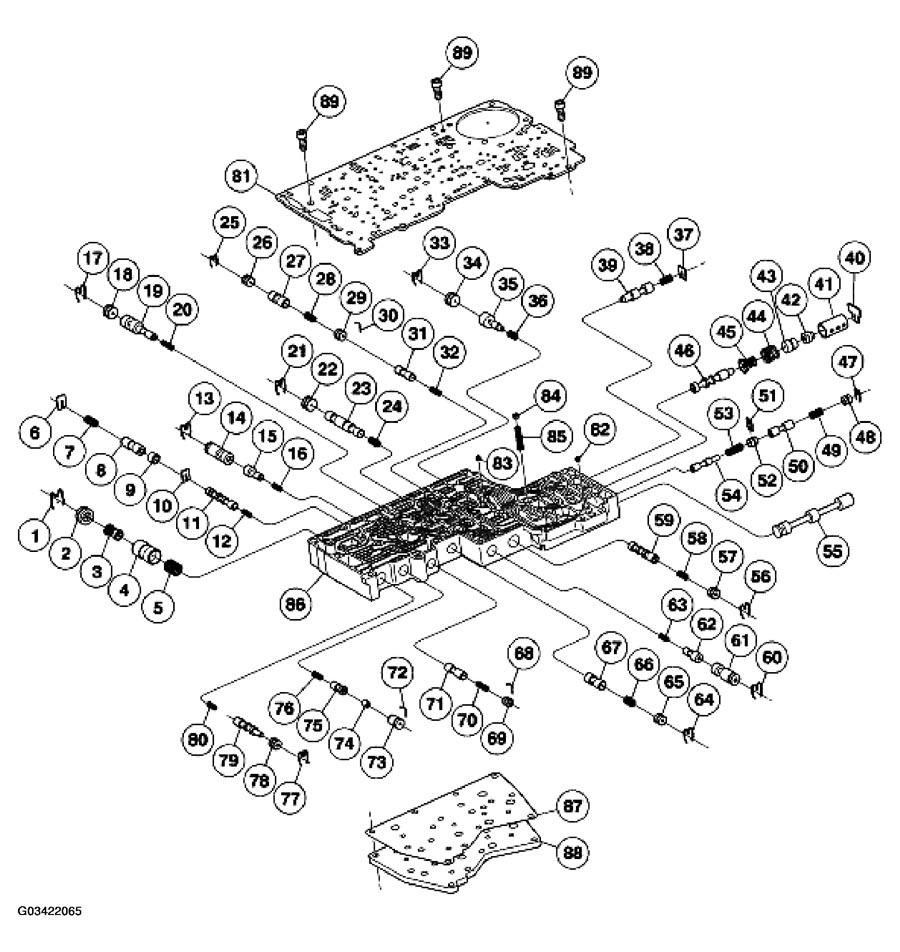

Fig 1: Fluid Pump Disassembled View

Courtesy of FORD MOTOR CO.

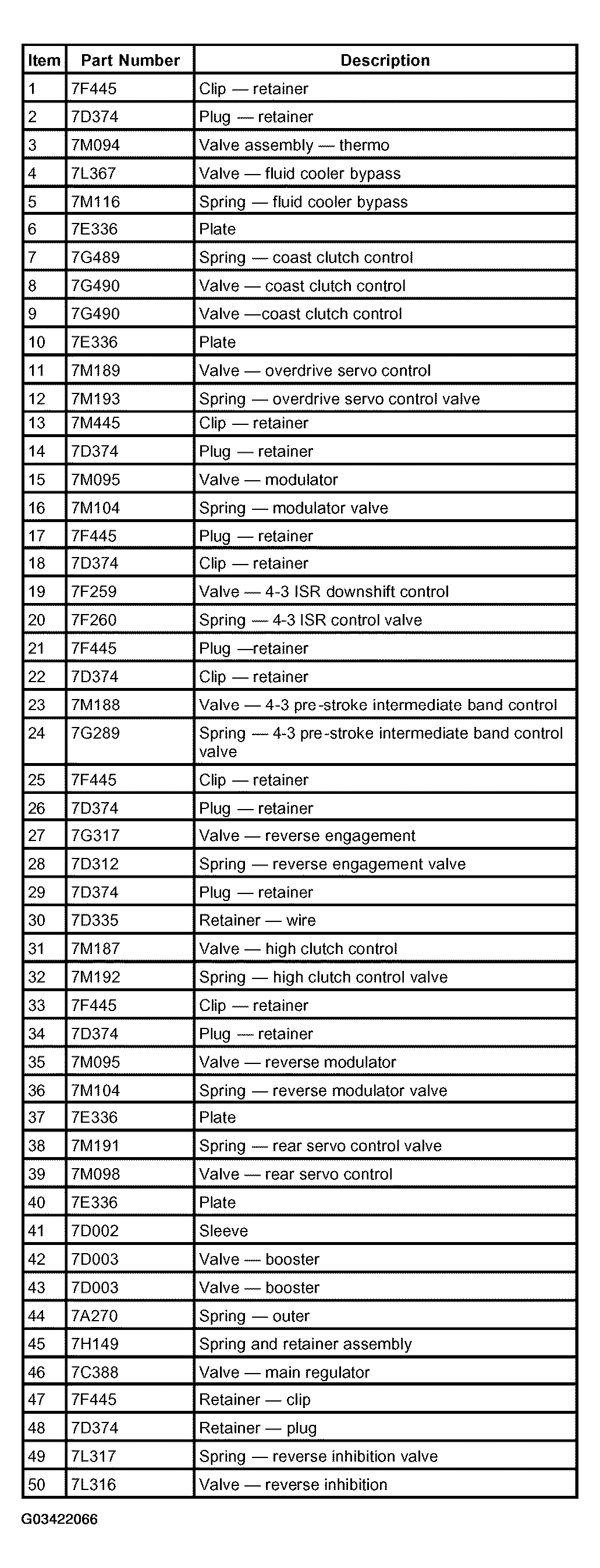

Fig 2: Fluid Pump Components Disassembled Item Description Chart (1-50)

Courtesy of FORD MOTOR CO.

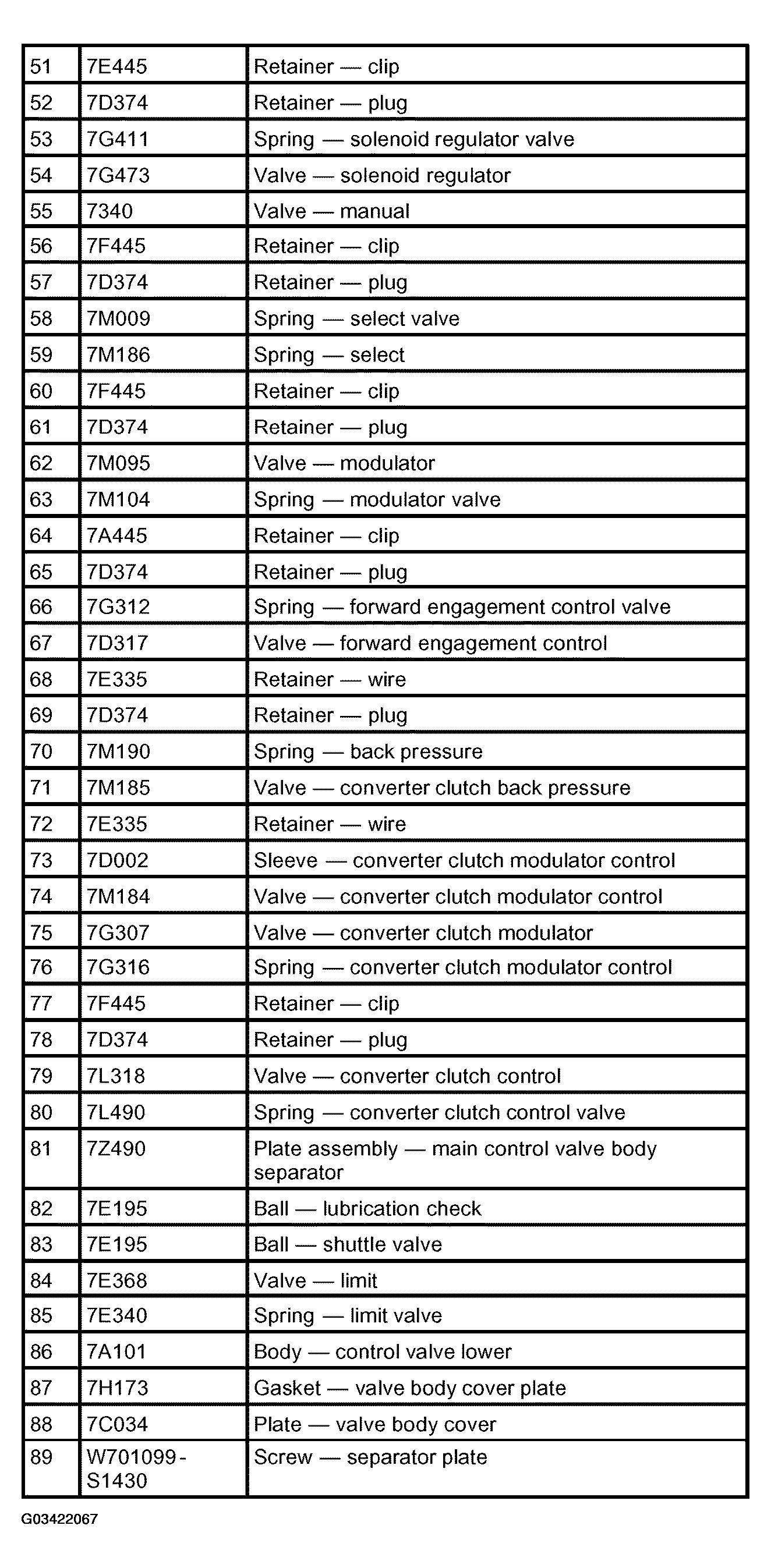

Fig 3: Fluid Pump Components Disassembled Item Description Chart (51-89)

Courtesy of FORD MOTOR CO.

The main control assembly and related components are part of the pressure side of the hydraulic system.
The main control assembly consists of the solenoids, the valve body assembly and the separator plate.
These components combine to convert electrical signals into hydraulic actions.
- All valves in the main control assembly are anodized aluminum and cannot be sanded, filed, or dressed in any other way. If there is any damage to the valves that prevents or restricts their movement, install a new main control assembly.
