Component Locations

NOTE: For component/connector locations, refer to illustrations. See Fig 1-Fig 3 .

COMPONENT LOCATIONS

Component

Location

Air Bag Diagnostic Monitor ⁽¹⁾

Under Front Of Center Console

Air Bag Sliding Contact

Top Of Steering Column, Under Steering Wheel

Anti-Lock Brake System Control Module

On Floor, Under Passenger Seat

Battery Junction Box

Left Side Of Engine Compartment, Next To battery

Central Junction Box

Under Left Side Of Instrument Panel

Data Link Connector

Under Driver's Side Of Instrument Panel, To Left Of Steering Column

Instrument Cluster

Left Side Of Instrument Panel

Instrument Cluster Gauge Amplifier

In Pocket On Back Of Instrument Cluster

Integrated Control Panel

In Center Of Dash

Multifunction Switch

Part Of Upper Steering Column

Powertrain Control Module

Under Center Console

Remote Anti-Theft Personality Module

In Luggage Compartment, Behind Right Trim Panel

Turn Signal/Hazard Flasher

Under Driver's Side Of Instrument Panel, Near Left Cowl Side Trim

⁽¹⁾	Air bag diagnostic monitor may also be referred to as electronic crash sensor module.

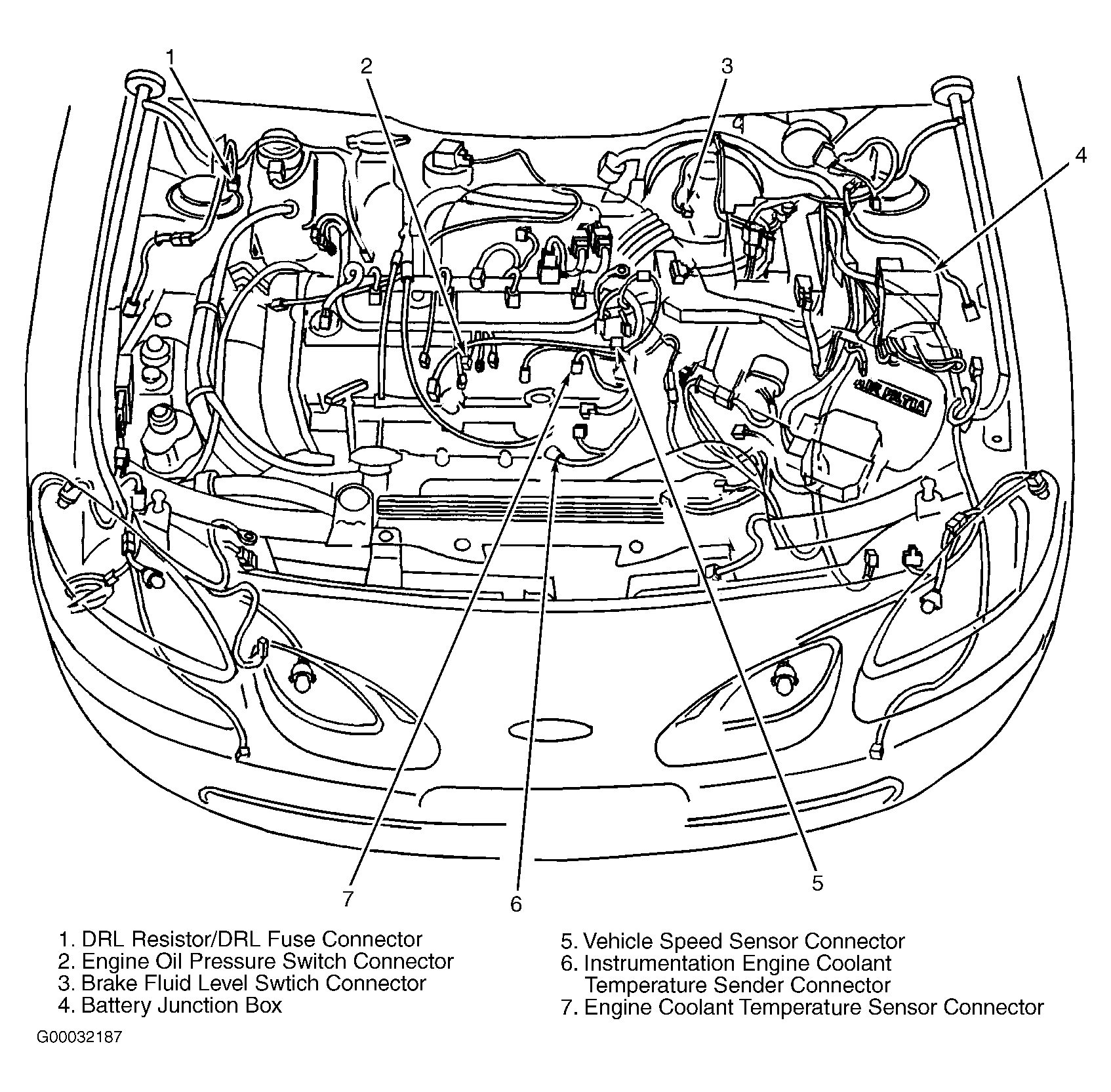

Fig 1: Locating Engine Compartment Components & Connectors (ZX2 Shown; Escort Is Similar)

Courtesy of FORD MOTOR CO.

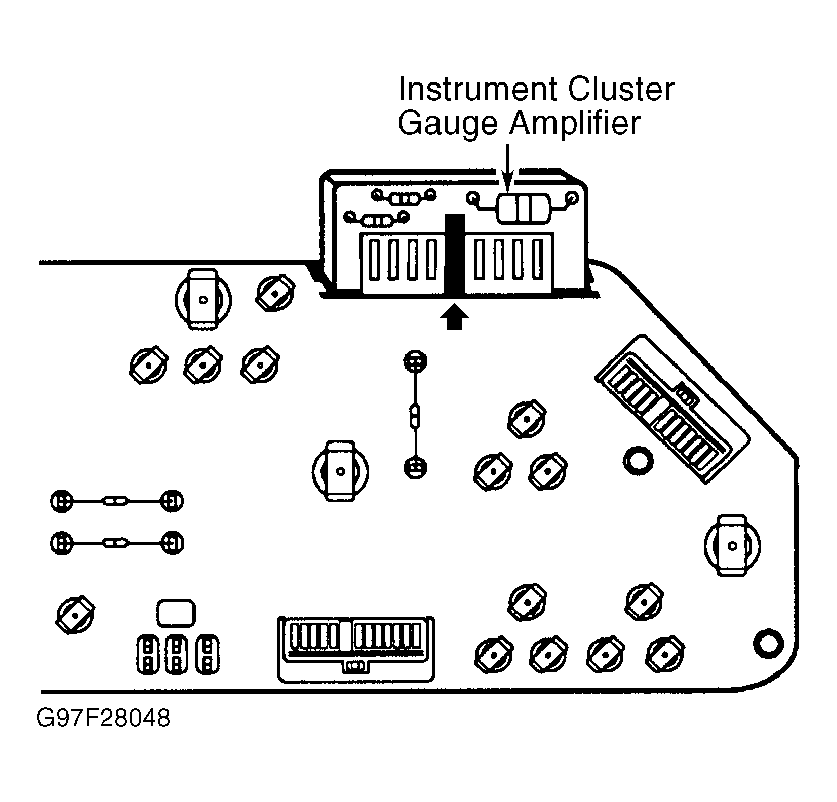

Fig 2: Locating Instrument Cluster Gauge Amplifier

Courtesy of FORD MOTOR CO.

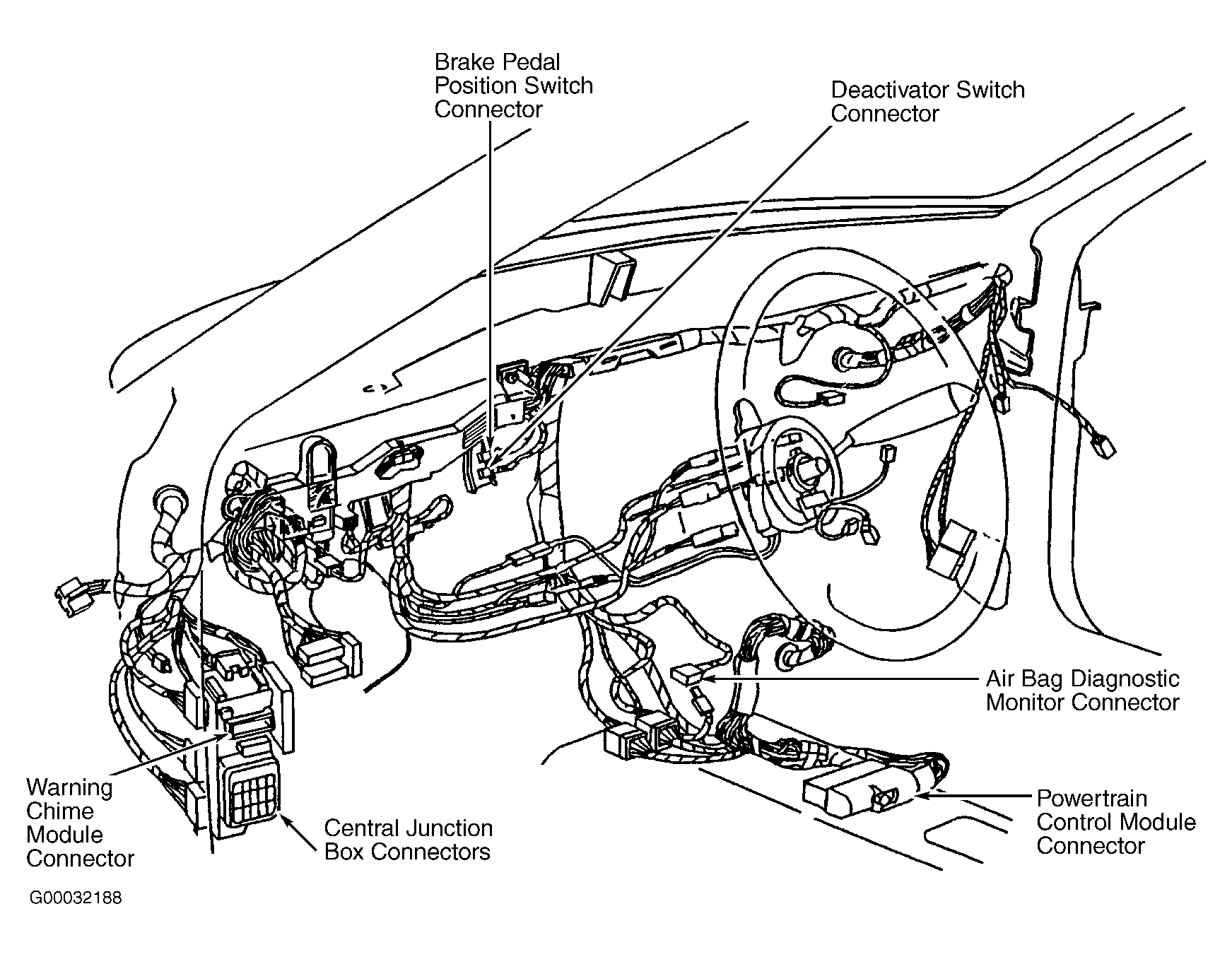

Fig 3: Locating Passenger Compartment Connectors (ZX2 Shown; Escort Is Similar)

Courtesy of FORD MOTOR CO.

Fig 4: Locating Data Link Connector and Instrument Cluster

Courtesy of FORD MOTOR CO.
