Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Blower Resistor | In left side of blower evaporator cover. See Figure. |
| ALDL Connector | Under dash to left of steering column. |
| "CHECK ENGINE" Light Driver (Calif.) | Taped on wiring harness near ECM. See Figure. |

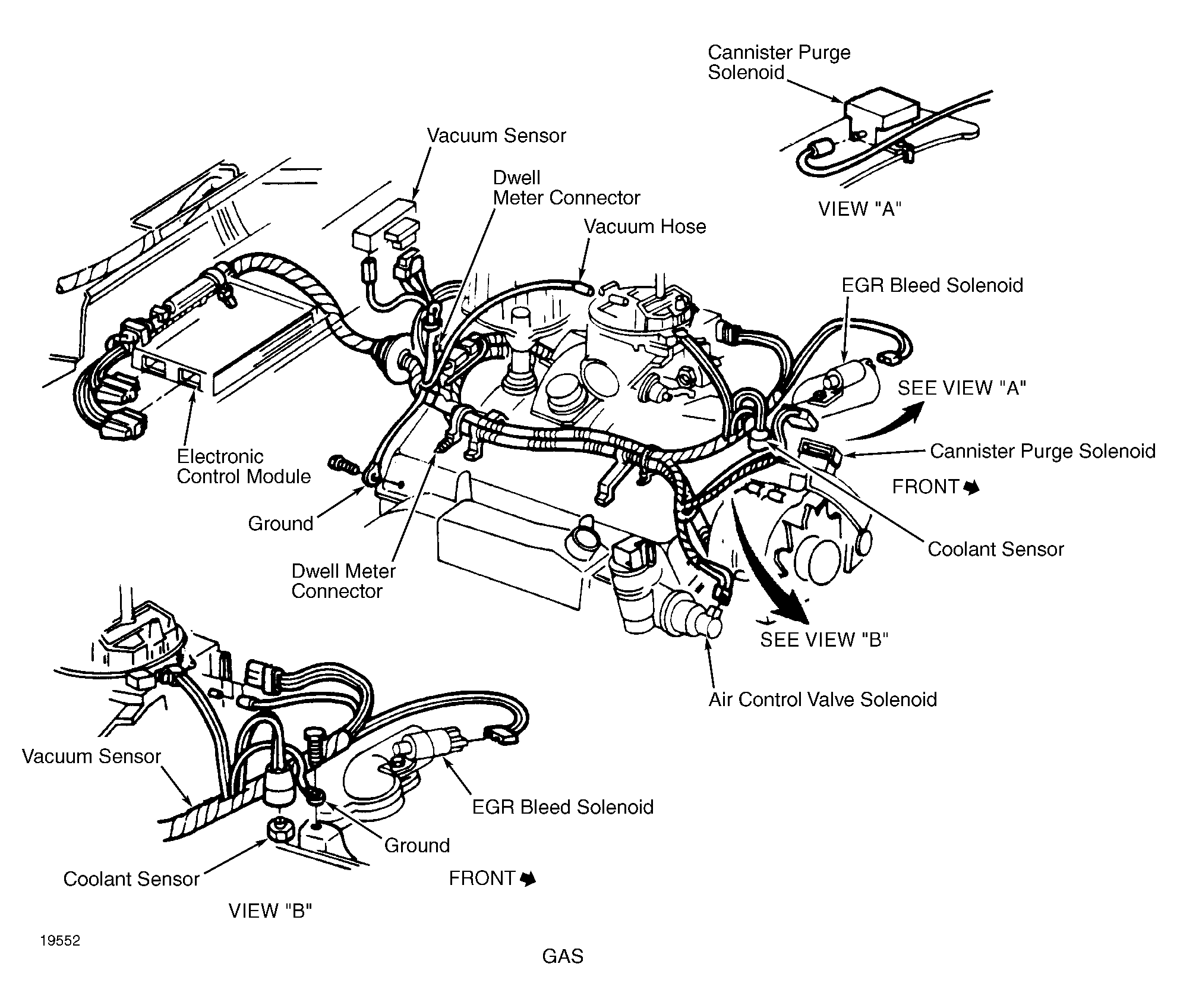

| Dwell Meter Connector (Calif.) | In wiring harness at rear of engine. See Figure. |
| Fuse Block | On inner firewall above driver's footwell. |
| Glow Plug Circuit Breaker | In glow plug thermal controller unit. |
| Headlight/Park Light Circuit Breaker | In light switch. |
| Power Window Circuit Breaker | In power window motor. |
| Tailgate Window Motor Circ. Breaker | On firewall in engine compartment. |
| Wiper Motor Circuit Breaker | In motor brush holder assembly. |
| Speed Control Servo | On bracket on right side of engine. |
