Component Locations

COMPONENT LOCATIONS

Component	Location
Busbar Ground	Behind Left Side Of Instrument Panel, Near Steering Column Fig 1
Fuse Block	Behind Left Side Of Instrument Panel Fig 1
Power Mirror	In Respective Door Fig 2
Power Mirror Switch	Below Heater-A/C Controller Fig 3
C293	Behind Left Side Of Instrument Panel Fig 4
C295	Behind Right Side Of Instrument Panel Fig 5
C296	Behind Left Side Of Instrument Panel, Near Busbar Ground Fig 6
C297	Behind Right Side Of Instrument Panel, At Kick Panel Fig 7
C298	Behind Center Of Instrument Panel Fig 7
C299	At Outside Rearview Mirror Switch Fig 7
C502	Inside Left Front Door Fig 2
C602	Inside Right Front Door Fig 2
G300	At Left Door Jamb Fig 8
G301	At Right Door Jamb Not Shown
G500	At Left Front Door Fig 9
G600	At Right Front Door Fig 9
S229	Behind Center Of Instrument Panel Fig 6
S230	Behind Right Side Of Instrument Panel, Above Kick Panel Fig 6
S501	Inside Lower Left Door Fig 10
S600	Inside Lower Right Door Fig 10

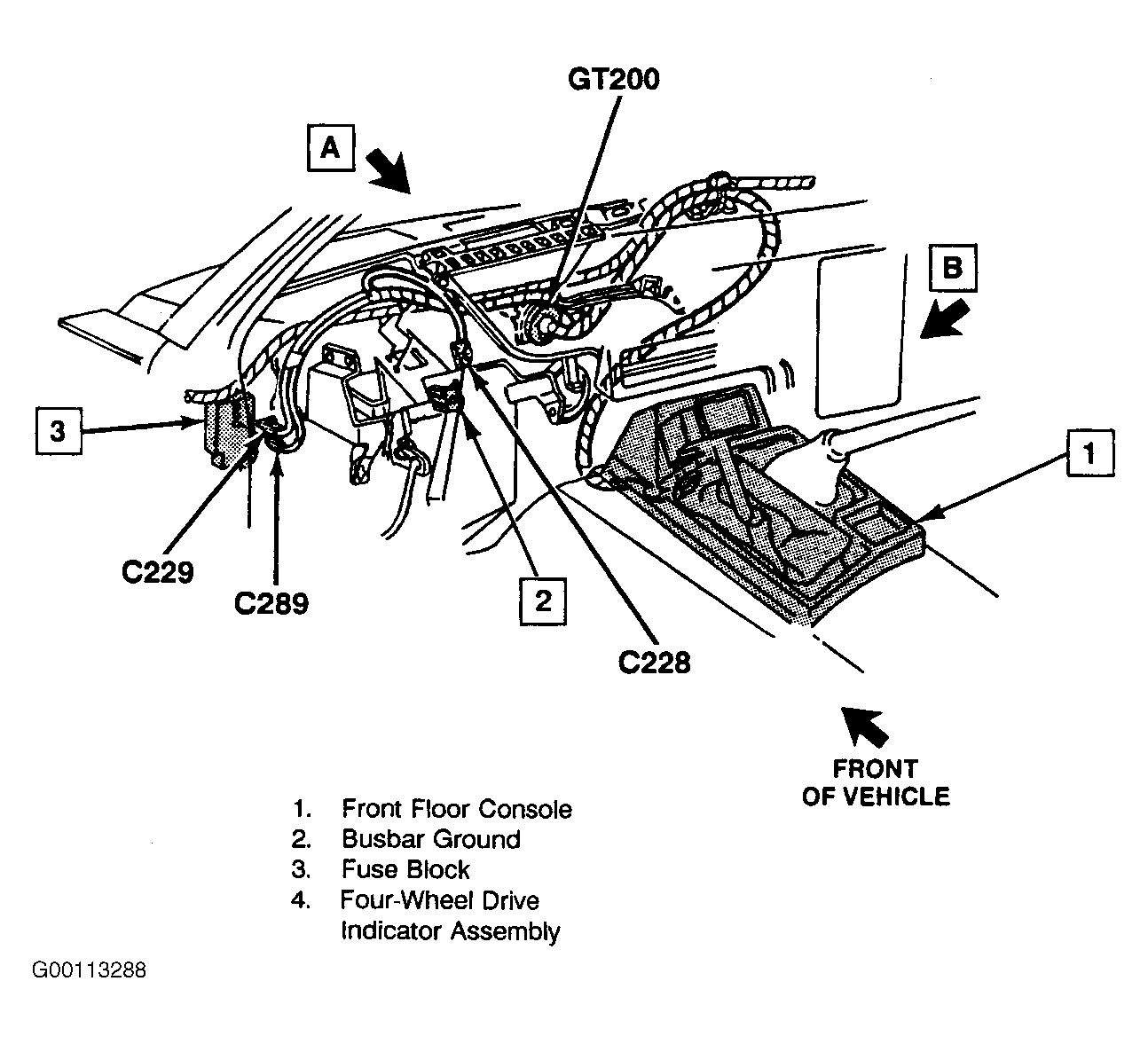

Fig 1: Locating Busbar Ground

G00113288

Courtesy of GENERAL MOTORS CORP.

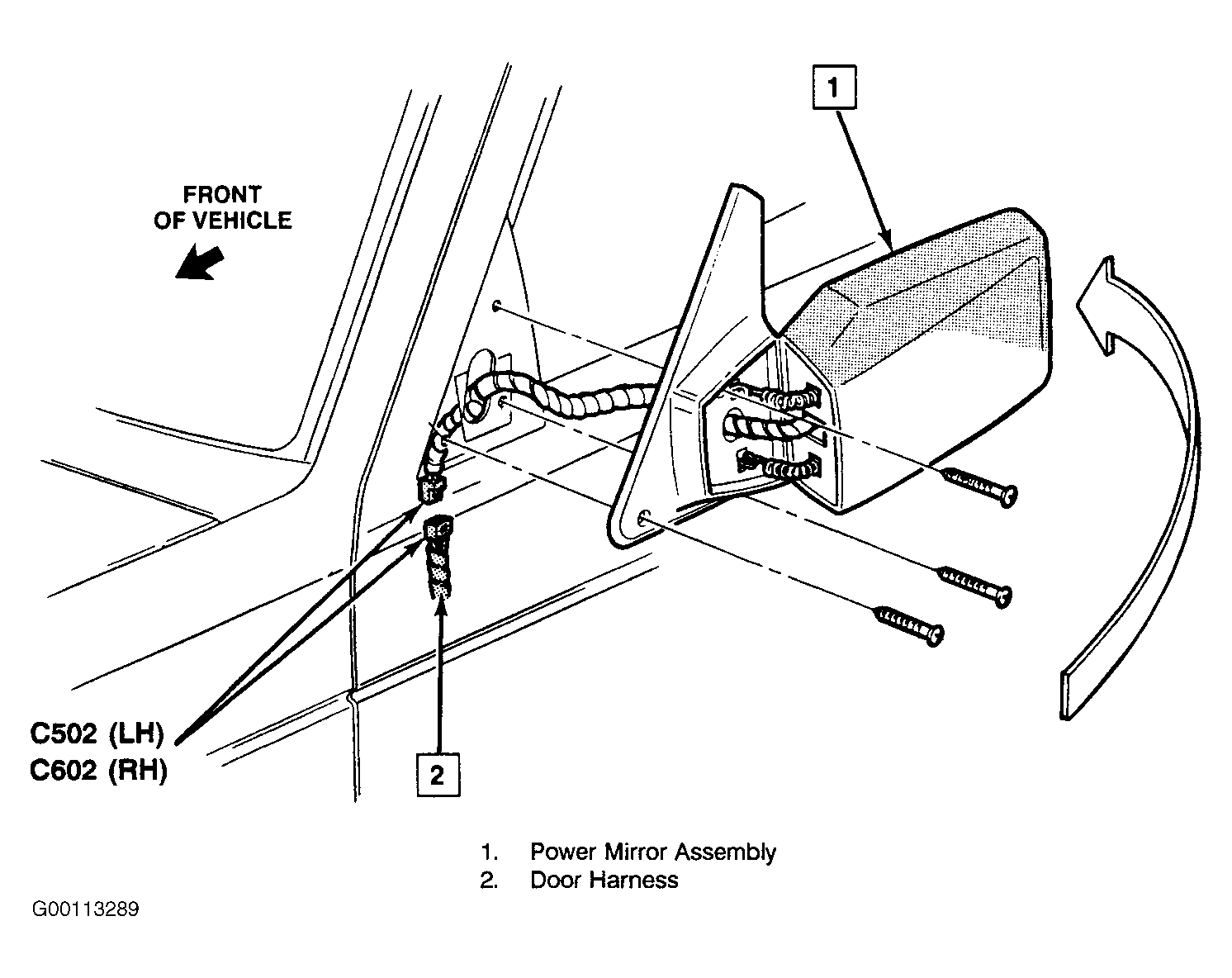

Fig 2: Identifying Outside Rearview Mirror

G00113289

Courtesy of GENERAL MOTORS CORP.

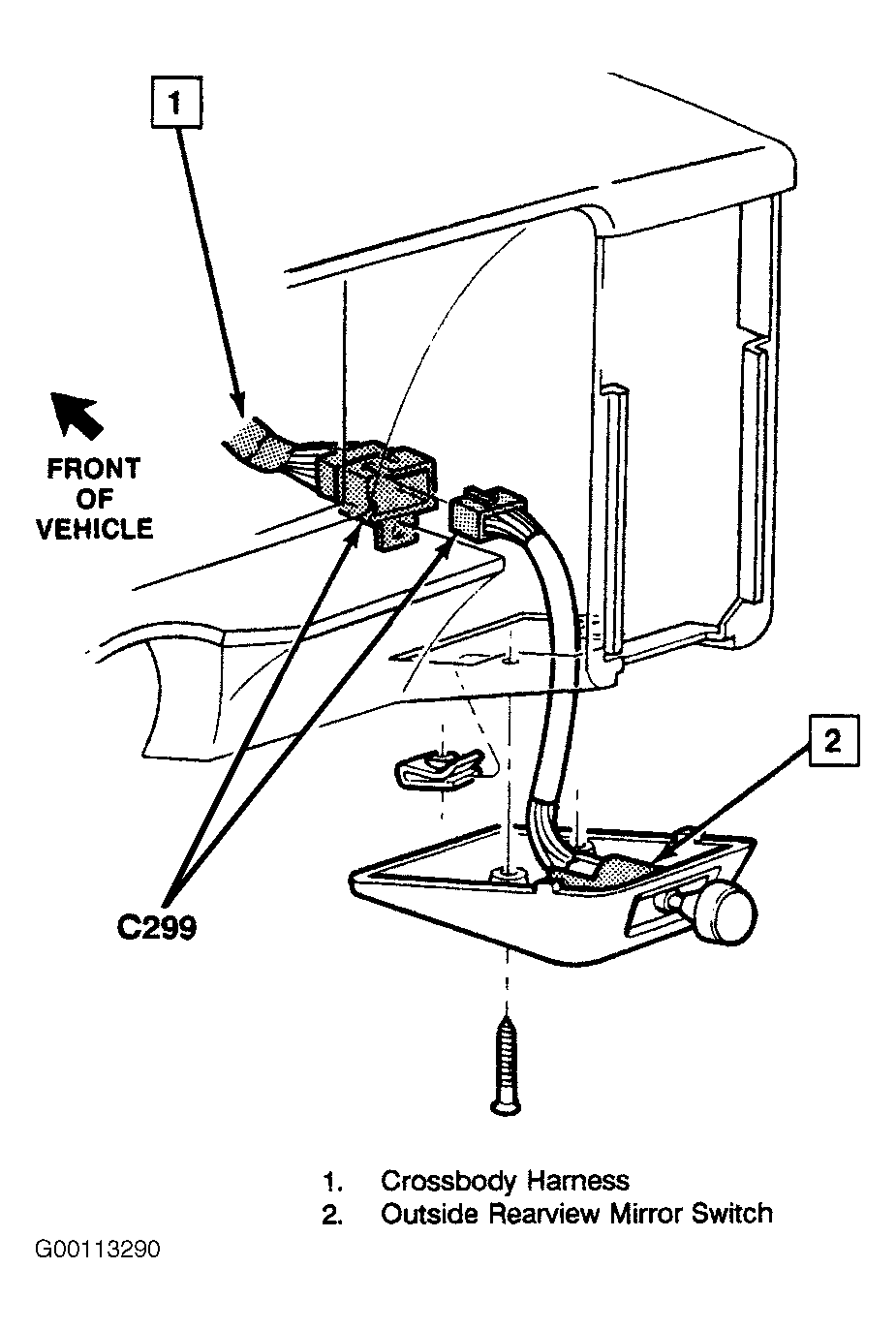

Fig 3: Locating Outside Rearview Mirror Switch Wiring

G00113290

Courtesy of GENERAL MOTORS CORP.

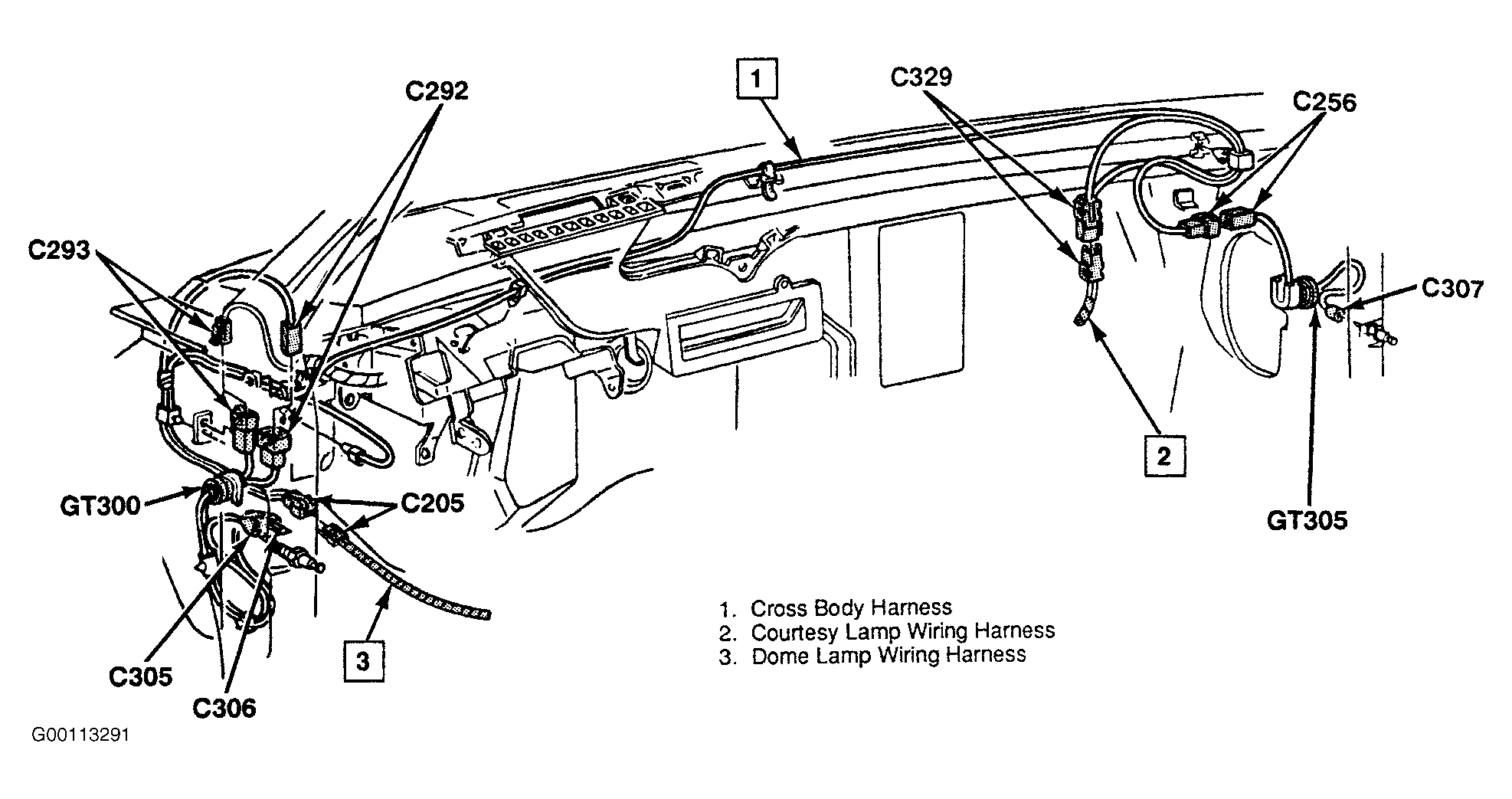

Fig 4: Identifying Cross Body Harness

G00113291

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Power Mirror Body Wiring

G00113292

Courtesy of GENERAL MOTORS CORP.

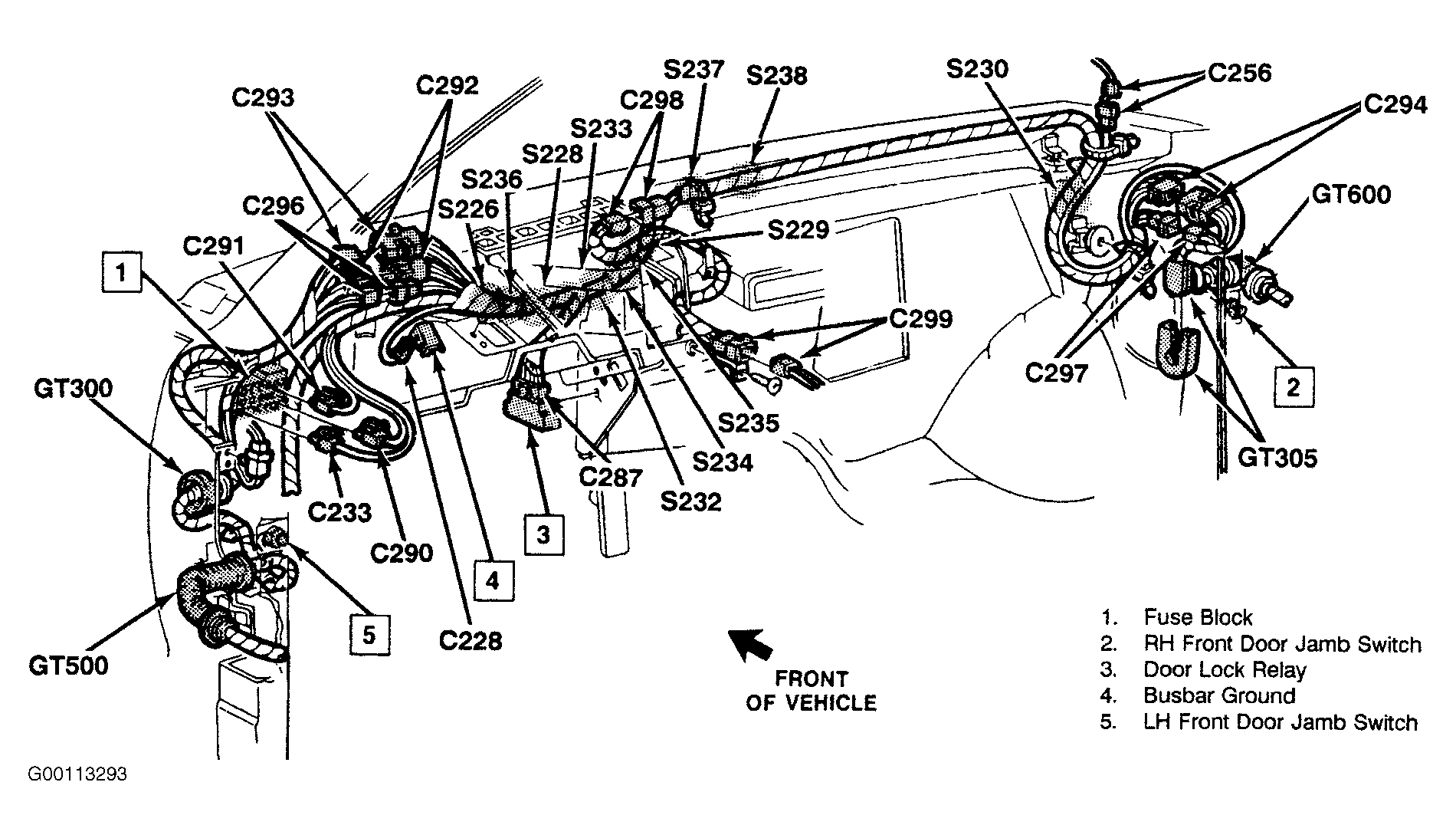

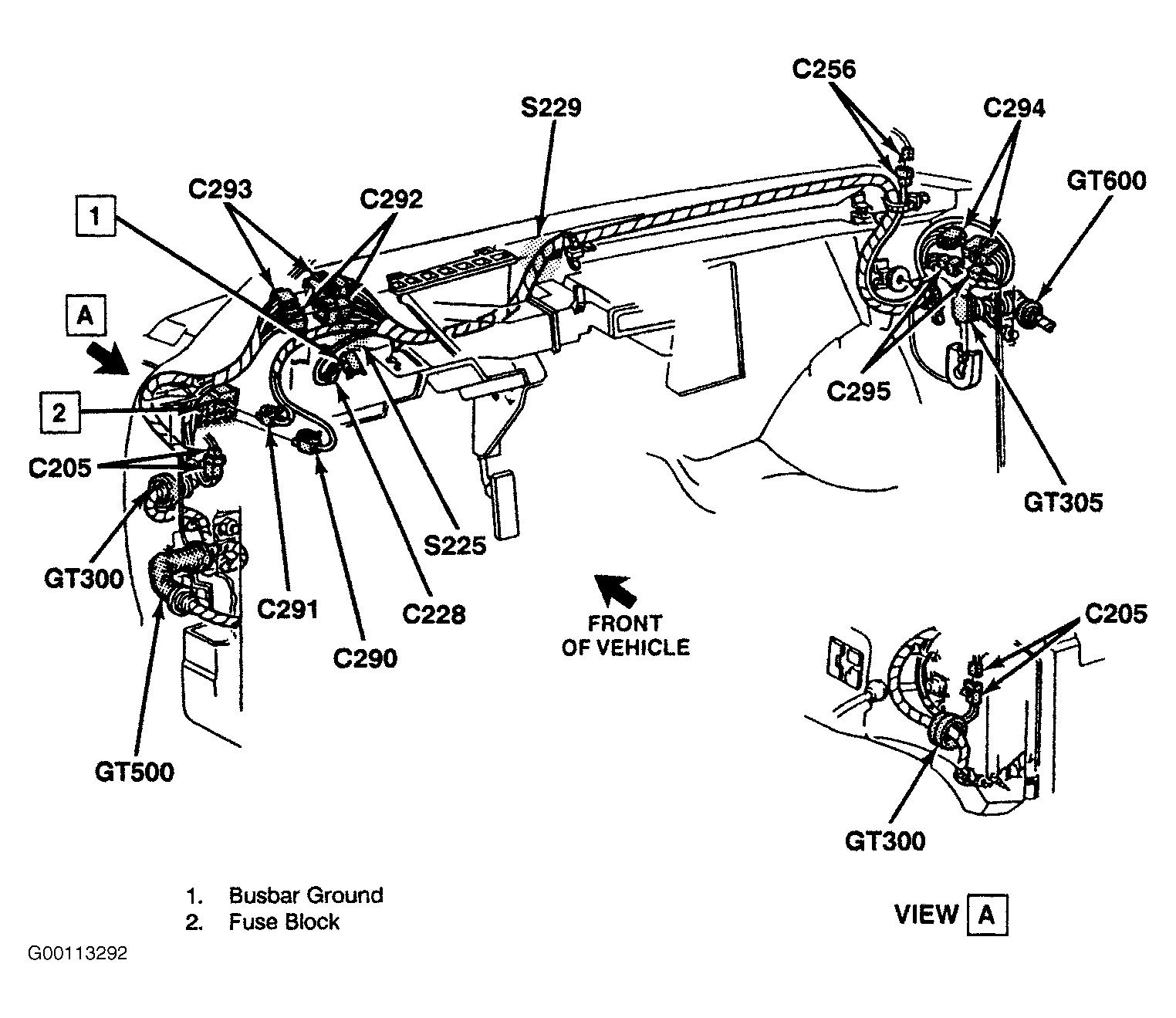

Fig 6: Locating Outside Power Mirror Wiring

G00113293

Courtesy of GENERAL MOTORS CORP.

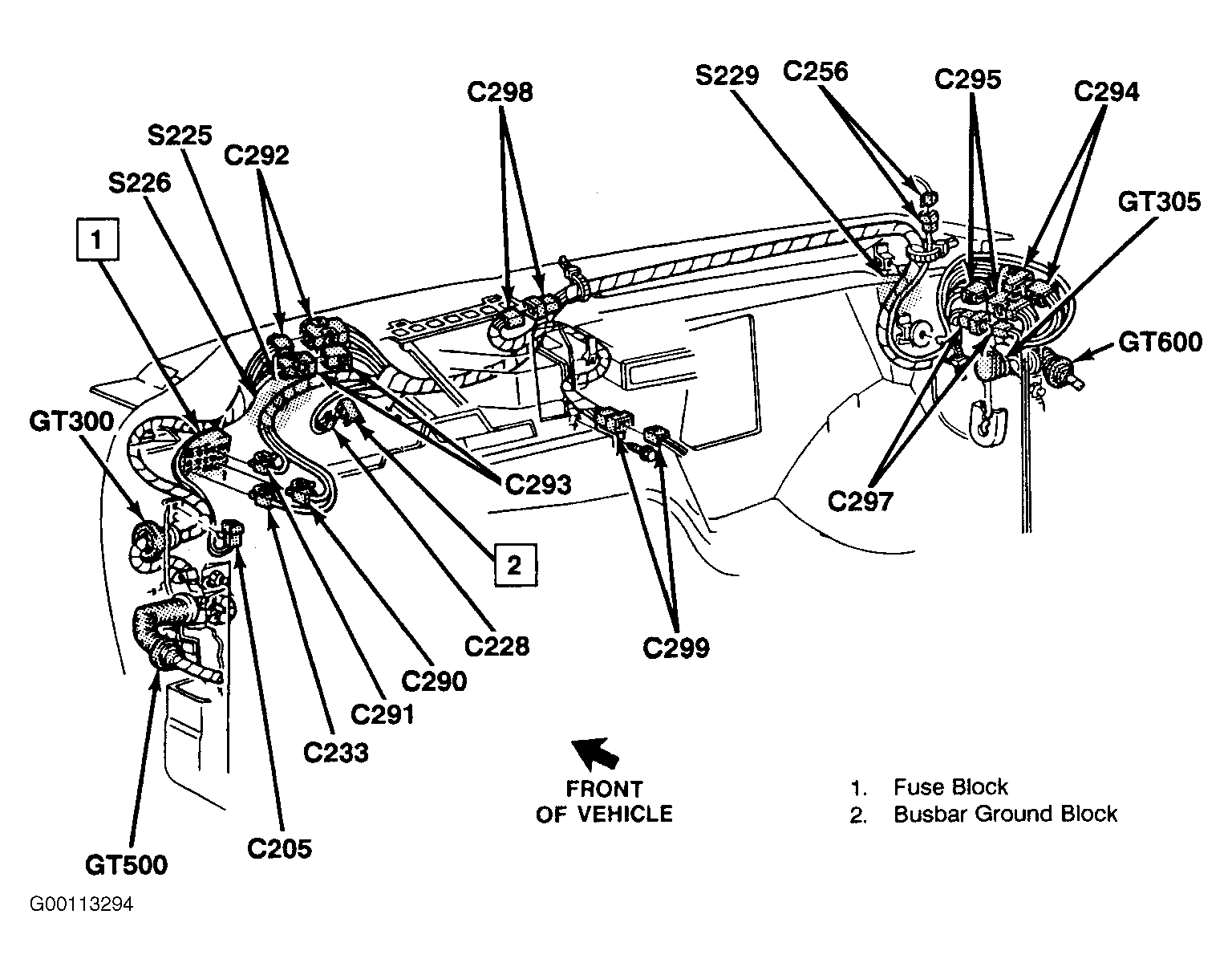

Fig 7: Locating Outside Power Mirror Wiring

G00113294

Courtesy of GENERAL MOTORS CORP.

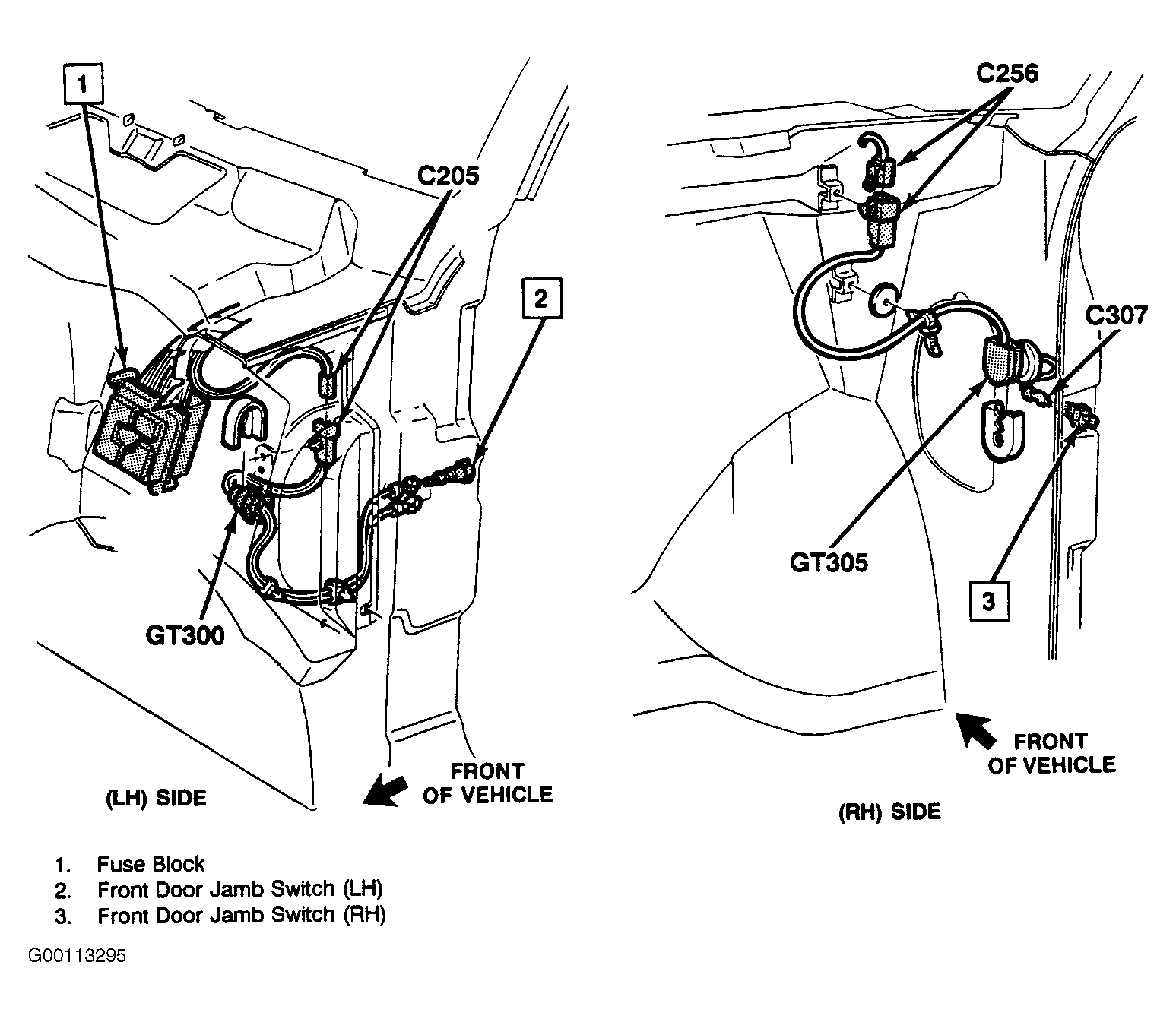

Fig 8: Identifying Door Jamb Switch Wiring

G00113295

Courtesy of GENERAL MOTORS CORP.

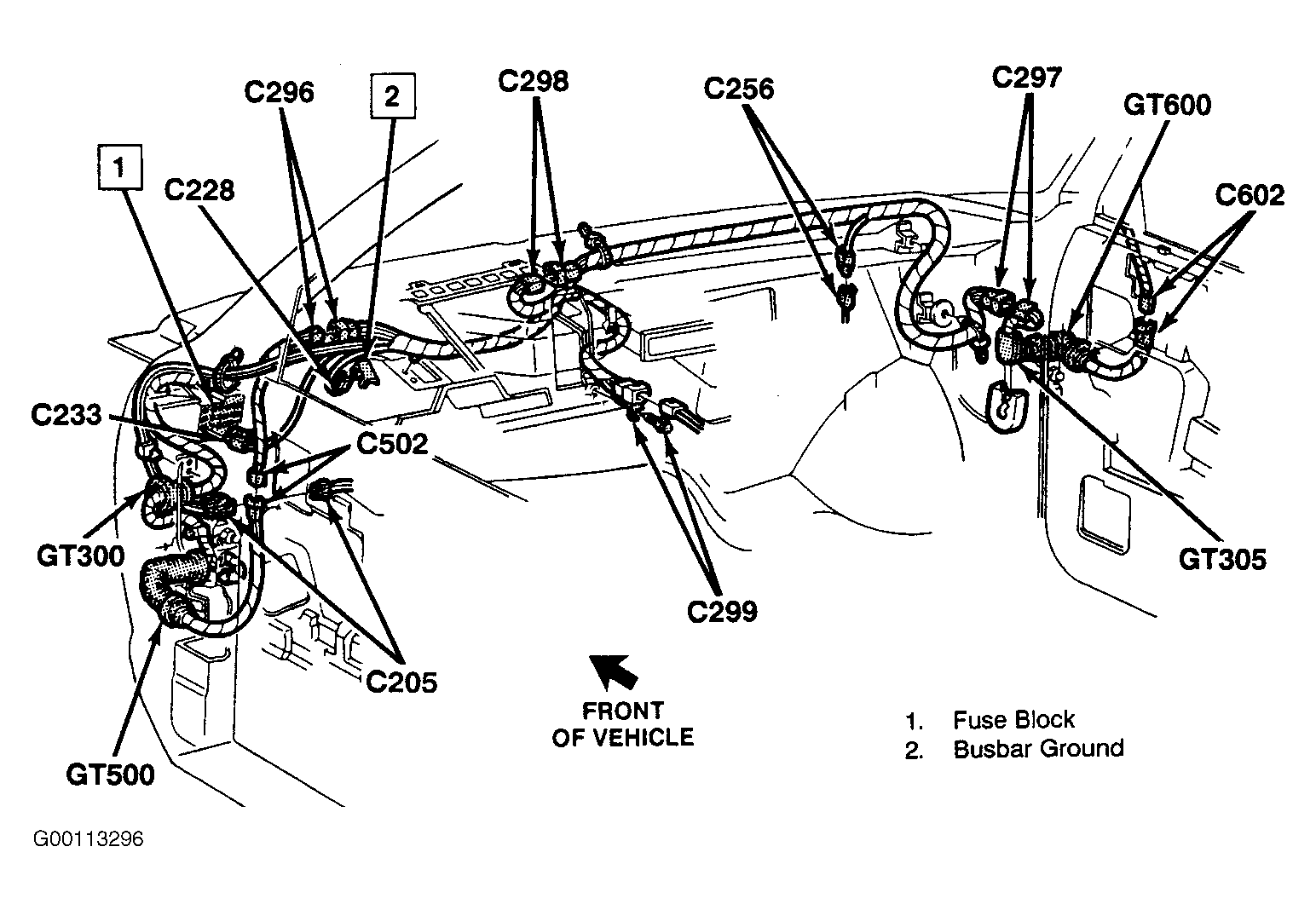

Fig 9: Locating Outside Rearview Mirror Wiring

G00113296

Courtesy of GENERAL MOTORS CORP.

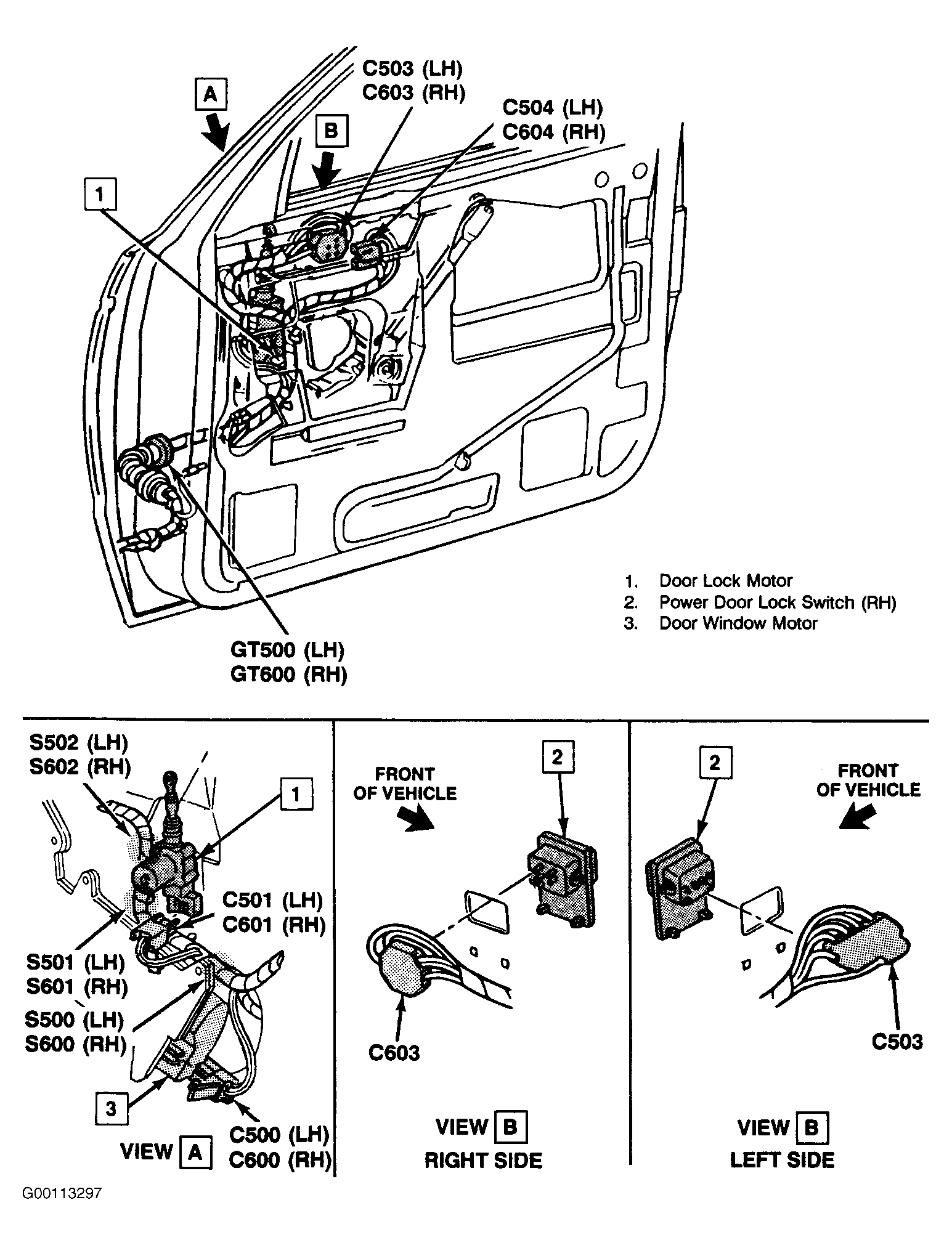

Fig 10: Identifying Door Harness

G00113297

Courtesy of GENERAL MOTORS CORP.
