Starting System: Overhaul: Cleaning

Clean all parts using a clean cloth. DO NOT clean armature, field coils, or drive assembly in any grease-dissolving solvents or damage to insulation and (starter) drive assembly will occur.

NOTE: Overhaul procedures are not available from manufacturer. See Fig 1-7 for exploded views of starters. PG-260 starters are not serviceable.

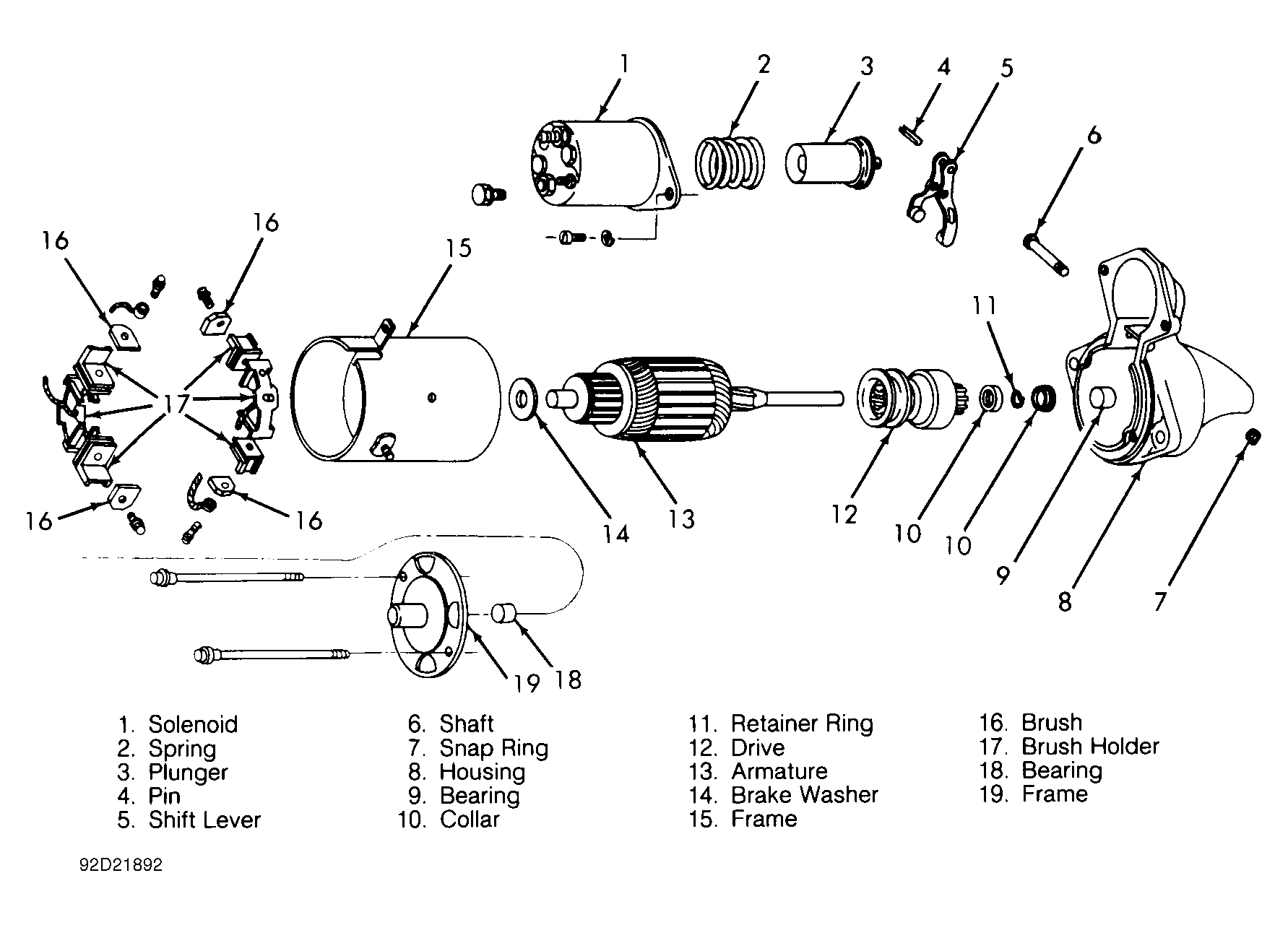

Fig 1: Exploded View Of Starter Assembly (SD-250)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View Of Starter Assembly (SD-210 & SD-260)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exploded View Of Starter Assembly (28MT)

Courtesy of GENERAL MOTORS CORP.
