Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Automatic Transmission Controller (Utility W/Floor Shift) | In center floor console. |
| Body Control Module | Under dash, on heater case. |
| Cruise Control Module | On left side of firewall. |
| Driver Information Display Module | In front overhead console. |
| Electronic Brake Control Module (EBCM) | On left front inner fender, on brake pressure modulator valve. See Figure. |
| Electronic Climate Control Module | Center of dash, below radio. |
| Heater & A/C Controller (W/Man A/C) | Under center of dash. |

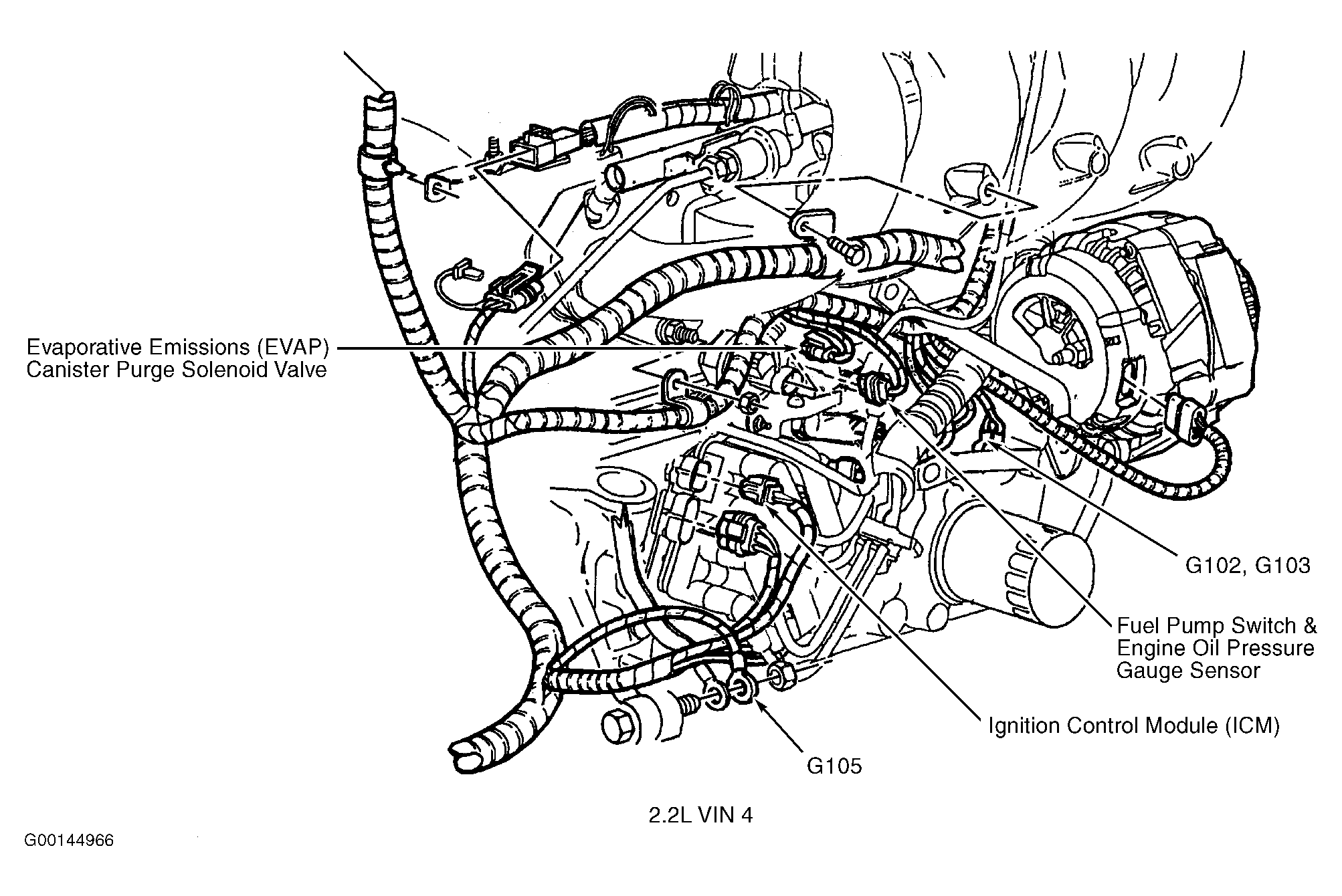

| Ignition Control Module (ICM) (2.2L VIN 4) | On right side of engine, near camshaft position sensor. Part of ignition coil assembly. See Figure. |
| Ignition Control Module (ICM) (4.3L VIN W) | On top right side of engine. Part of ignition coil assembly. |
| Ignition Control Module (ICM) (4.3L VIN X) | On top right side of engine. Part of ignition coil assembly. |
| Left Front Heated Seat Heater Module | Under left front seat. |
| Powertrain Control Module (PCM) (2.2L VIN 4) | On right front of engine compartment. |
| Remote Audio Player | In center floor console. |
| Remote Control Door Lock Receiver | Behind lower left side of dash. |
| Remote Function Actuator (RFA) Module | Behind left side of dash. |
| Right Front Heated Seat Heater Module | Under right front seat. |
| Seat Memory Module | Under each front seat. |
| Sun Roof Module | At front of sun roof. |
| Supplemental Inflatable Restraint Sensing & Diagnostic Module | Under console & carpet, between front seats. |
| Transfer Case Shift Control Module | Behind right front kick panel. |
| Vehicle Control Module (VCM) (4.3L VIN W) | On right front of engine compartment. |
| Vehicle Control Module (VCM) (4.3L VIN X) | On right front of engine compartment. |
| Windshield Wiper Pulse Control Module | On center of firewall. |
