Installation Procedure

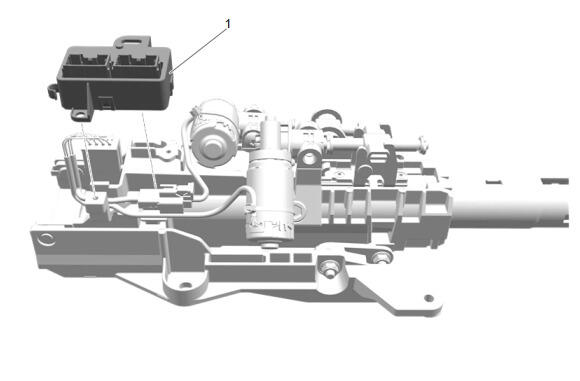

  1. GM5832346Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module (1) - Install

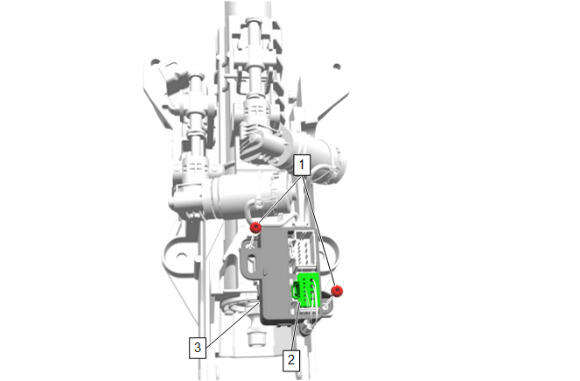

  2. GM5832345Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (2)

  3. Steering Column Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

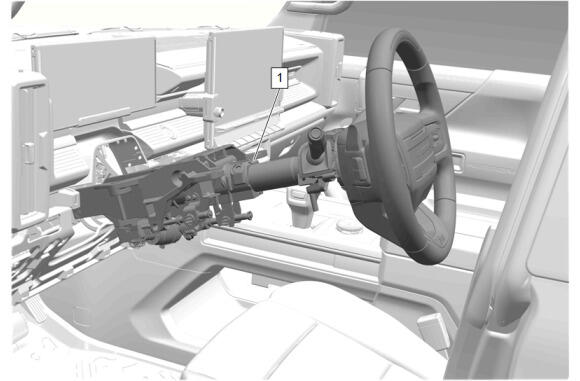

  4. GM5821310Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Removal and Installation

  5. Program the steering column control module. Control Module References
