Installation Procedure

  1. GM6159826Courtesy of GENERAL MOTORS COMPANY

    Automatic Level Control Module (1) - Install

  2. GM6159821Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Automatic Level Control Air Compressor Nut (1) - Install and tighten [2x] - Fastener Specifications

  3. Automatic Level Control Air Compressor Bolt (2) - Install and tighten - Fastener Specifications
  4. GM6159818Courtesy of GENERAL MOTORS COMPANY

    Install the air intake line into the body grommet (1) and install the 2 air line retainers (2).

  5. GM6159814Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The air lines and air suspension controller are color coded to aid with installation.

    Install and tighten the 5 automatic level control air compressor tube fitting (1) in the air suspension controller. Fastener Specifications

  6. GM6159796Courtesy of GENERAL MOTORS COMPANY

    Install the wire harness retainer (2).

  7. Install the 3 wire harness connectors (1).

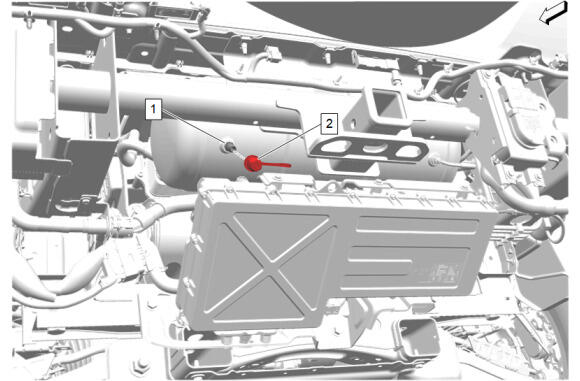

  8. GM6152537Courtesy of GENERAL MOTORS COMPANY

    Remove the automatic level control air supply reservoir coupling cap (2).

  9. Install CH-52667  Air Spring Inflator to the automatic level control air supply reservoir air valve (1) and set the regulator on the nitrogen tank to 16 Bar (232 PSI).
  10. Using CH-52667  Air Spring Inflator, open the valve on the pressure gage to fill the automatic level control air supply reservoir.
  11. Using CH-52667  Air Spring Inflator and the shop nitrogen tank, fill the automatic level control air supply reservoir to 16 Bar (232 PSI).
  12. Close the pressure gauge valve and remove CH-52667  Air Spring Inflator from the automatic level control air supply reservoir.
  13. Install the automatic level control air supply reservoir coupling cap (2) and tighten. Fastener Specifications .
  14. Partially lower the vehicle, but DO NOT let the wheels touch the ground.
  15. Using GDS2 tool, use short-term inflate to increase pressure to the air springs:
    • Front: 6 Bar (87 PSI)
    • Rear: 5 Bar (73 PSI)
  16. Using GDS2, verify automatic level control air supply tank pressure is at 16 Bar (232 PSI), if not repeat steps 8 - 13.
  17. Remove the support and lower the vehicle.
  18. GM6126883Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)

  19. After installation, program the automatic level control module. K5 Automatic Level Control Module: Programming and Setup
  20. Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
