Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind right quarter trim panel. |
| ABS Modulator Unit | In right rear of engine compartment. |

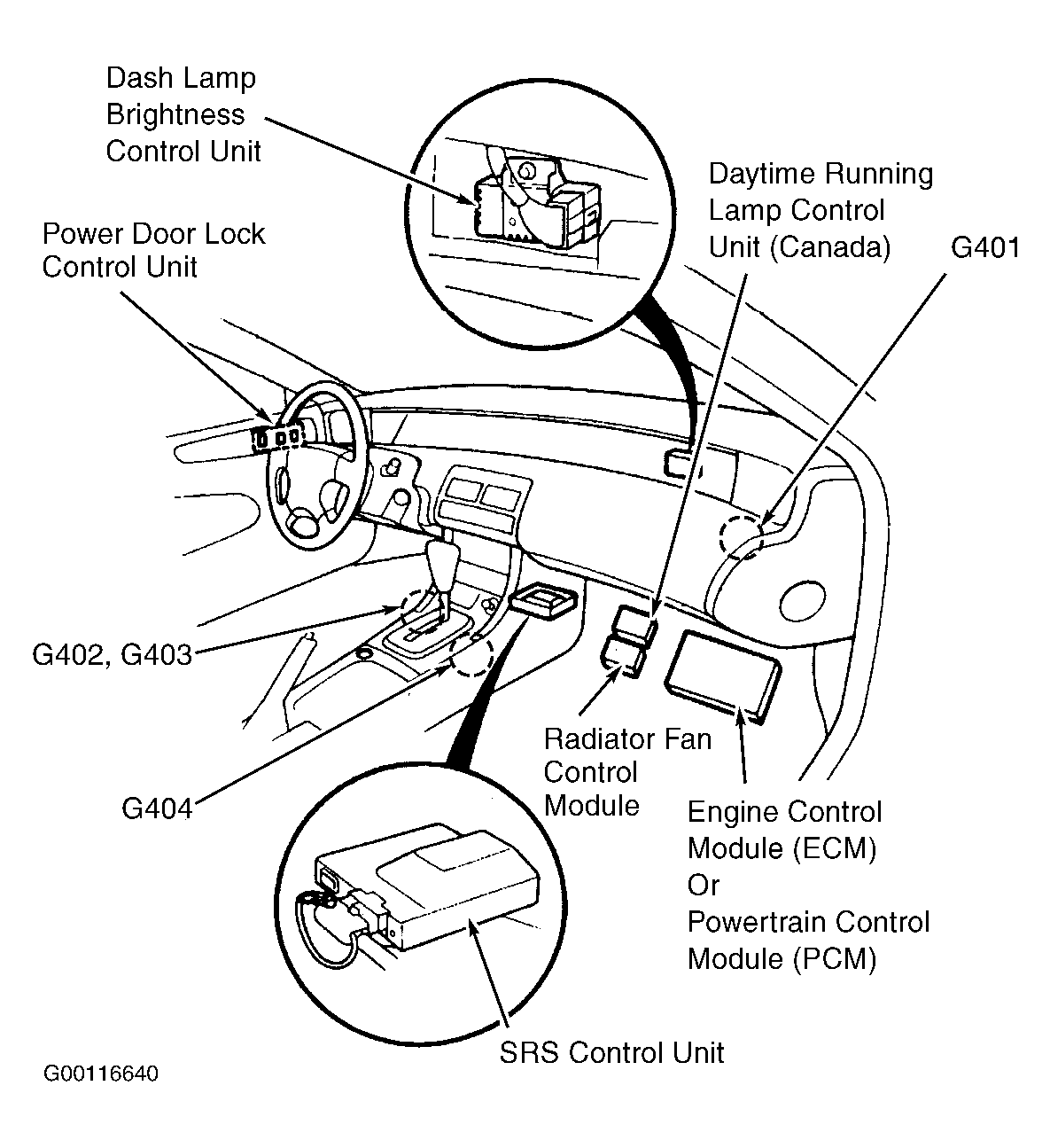

| Daytime Running Lamp (DRL) Control Unit (Canada) | On passenger-side footwell, under carpet. See Figure . |
| Cruise Control Unit | Behind left side of dash, above accelerator pedal bracket. |
| Dash Lamp Brightness Control Unit | Behind right side of dash. See Figure . |

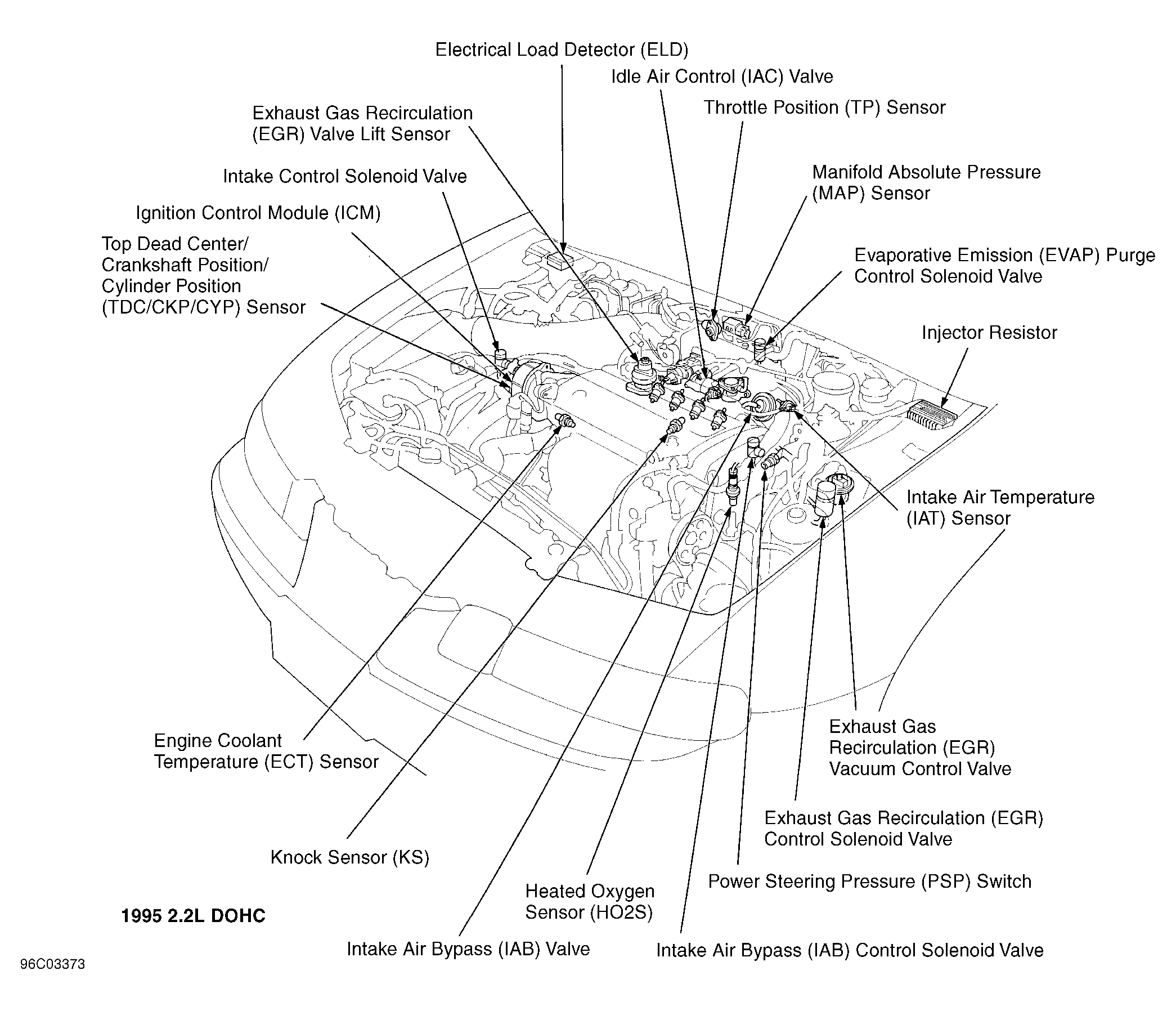

| Electrical Load Detector (ELD) (1995 2.2L DOHC) | On bottom of under-hood fuse/relay box. See Figure . |

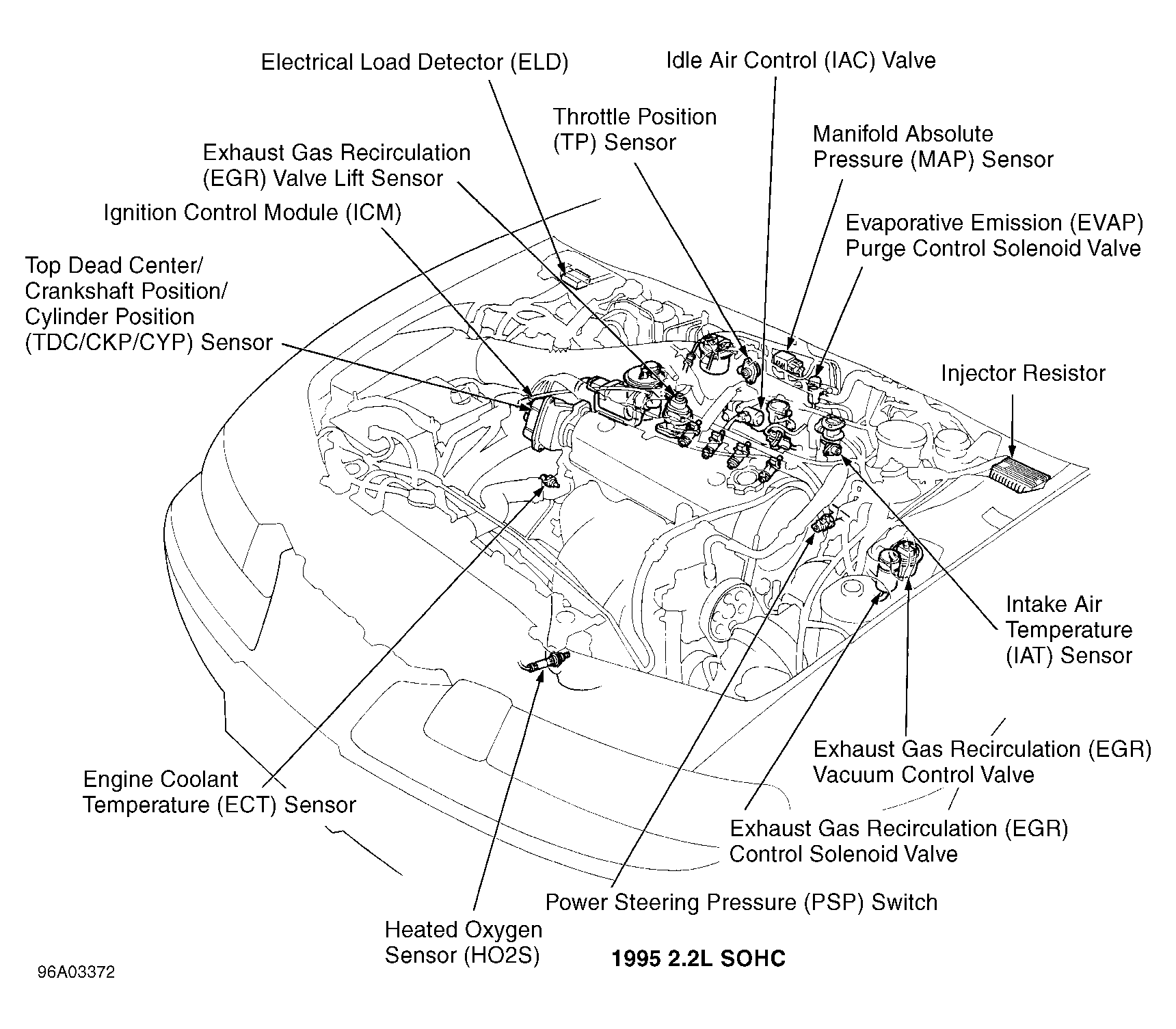

| Electrical Load Detector (ELD) (1995 2.2L SOHC) | On bottom of under-hood fuse/relay box. See Figure . |

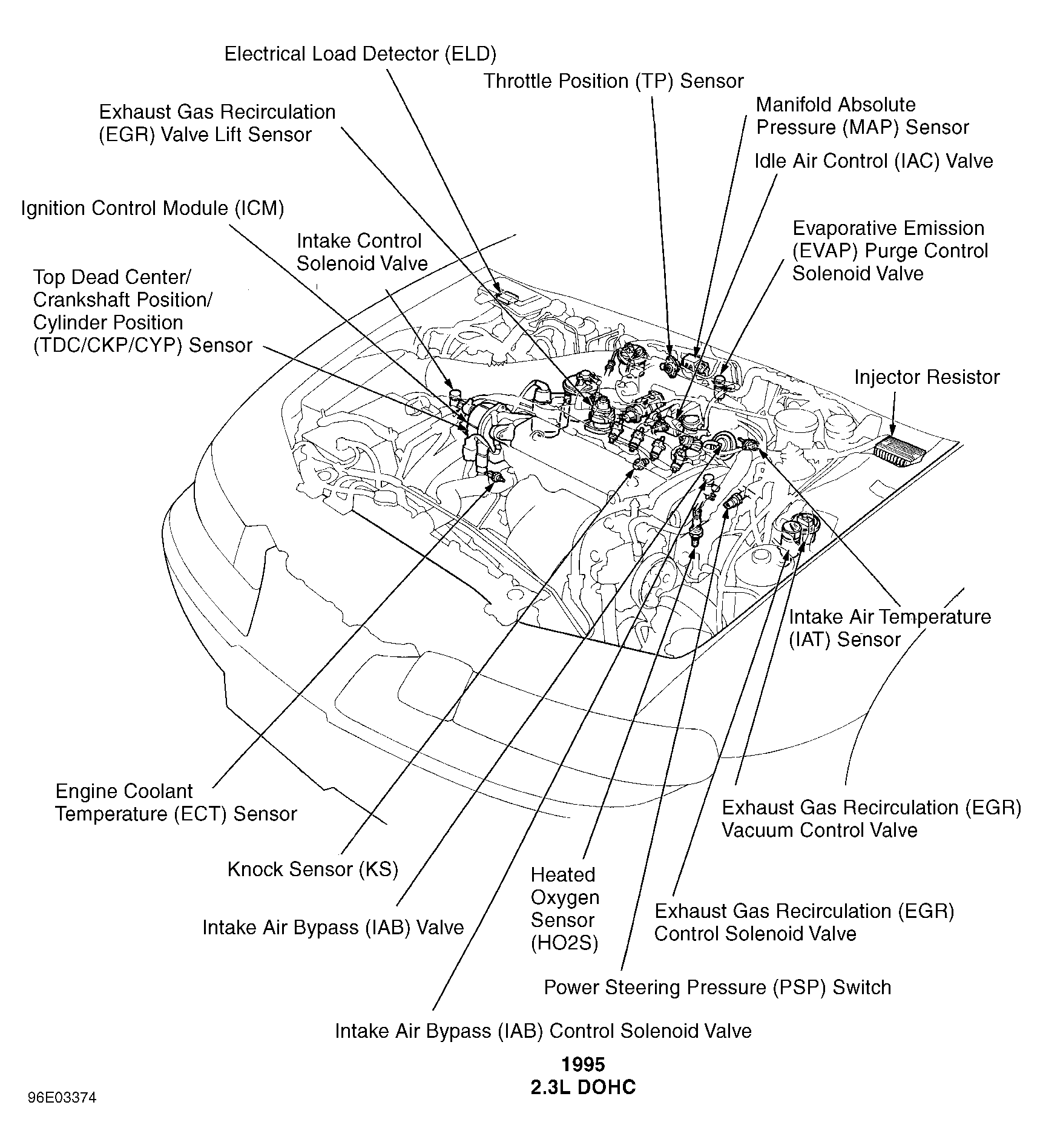

| Electrical Load Detector (ELD) (1995 2.3L DOHC) | On bottom of under-hood fuse/relay box. See Figure . |

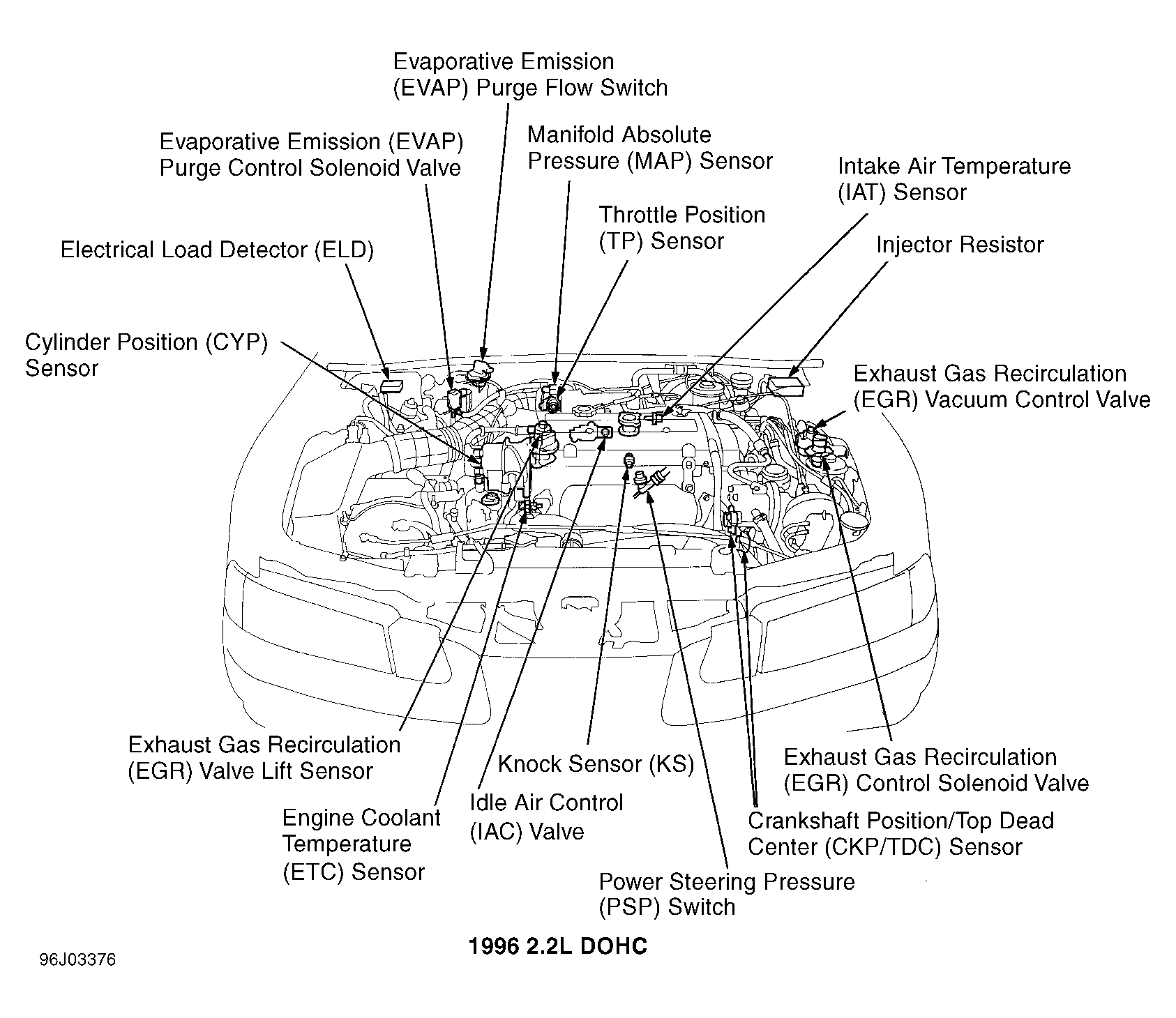

| Electrical Load Detector (ELD) (1996 2.2L DOHC) | On bottom of under-hood fuse/relay box. See Figure . |

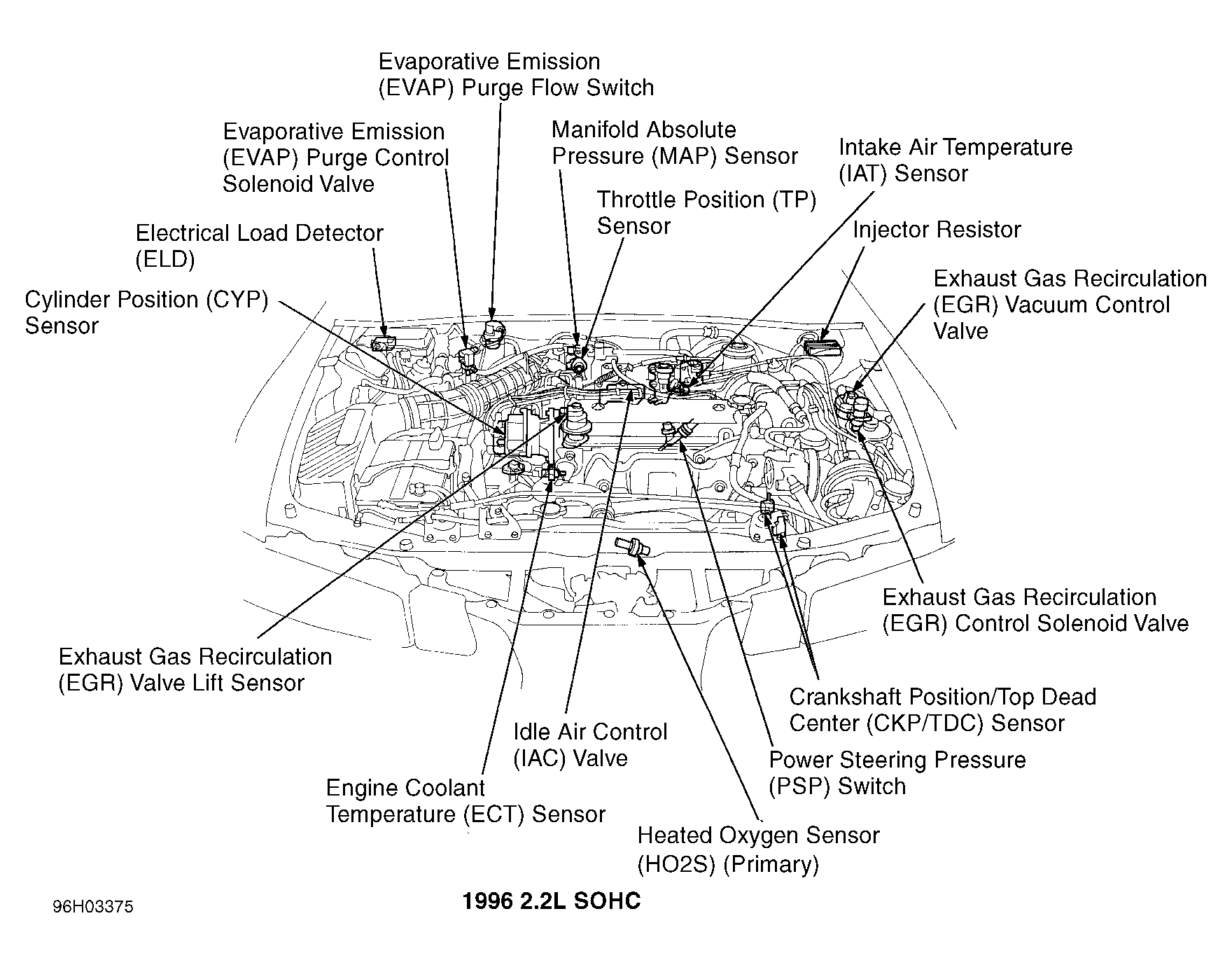

| Electrical Load Detector (ELD) (1996 2.2L SOHC) | On bottom of under-hood fuse/relay box. See Figure . |

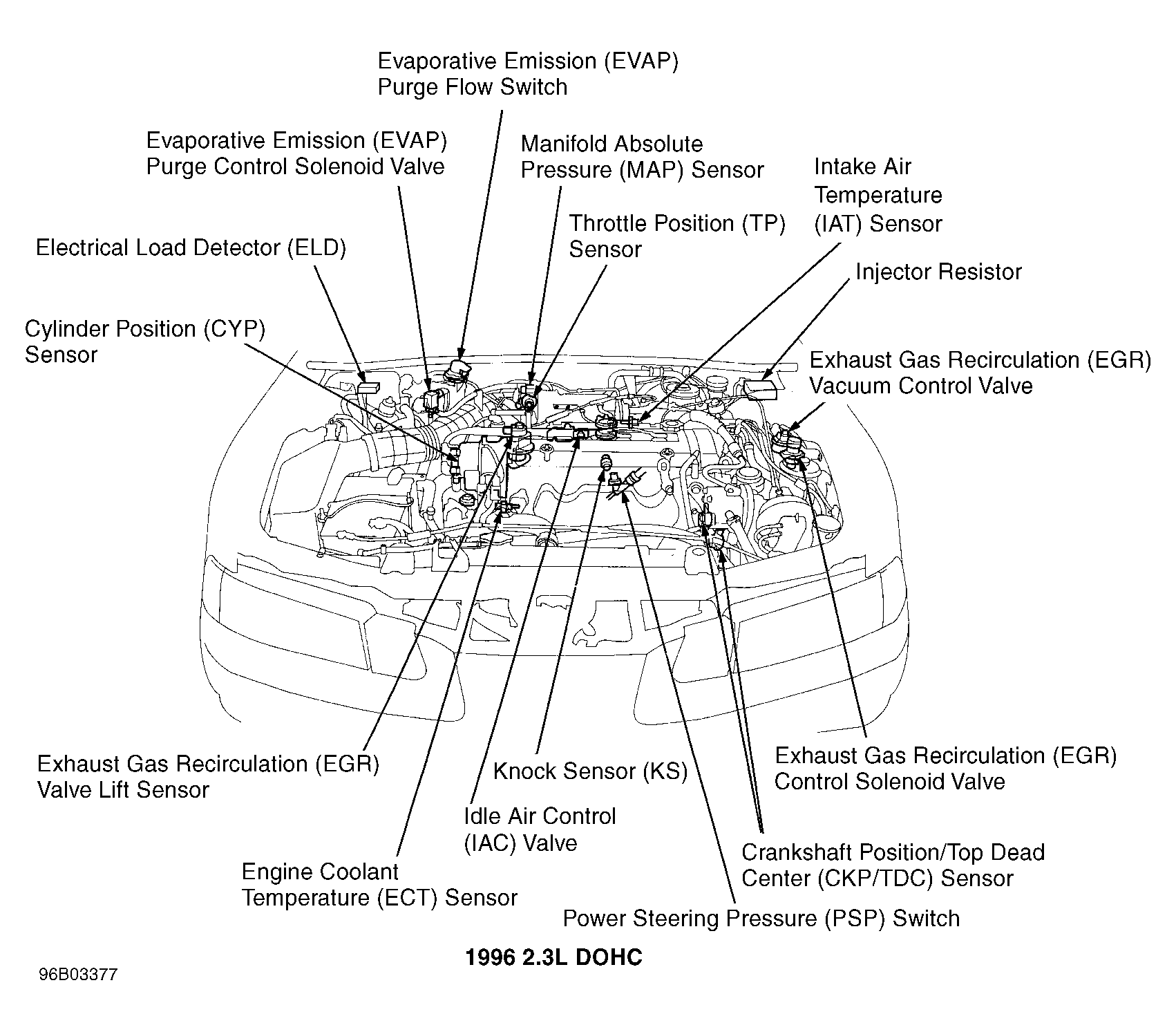

| Electrical Load Detector (ELD) (1996 2.3L DOHC) | On bottom of under-hood fuse/relay box. See Figure . |
| Engine Control Module (ECM) | On passenger-side footwell, under carpet. See Figure . |
| Ignition Control Module (ICM) (1995 2.2L DOHC) | In distributor assembly. See Figure . |
| Ignition Control Module (ICM) (1995 2.2L SOHC) | In distributor assembly. See Figure . |
| Ignition Control Module (ICM) (1995 2.3L DOHC) | In distributor assembly. See Figure . |

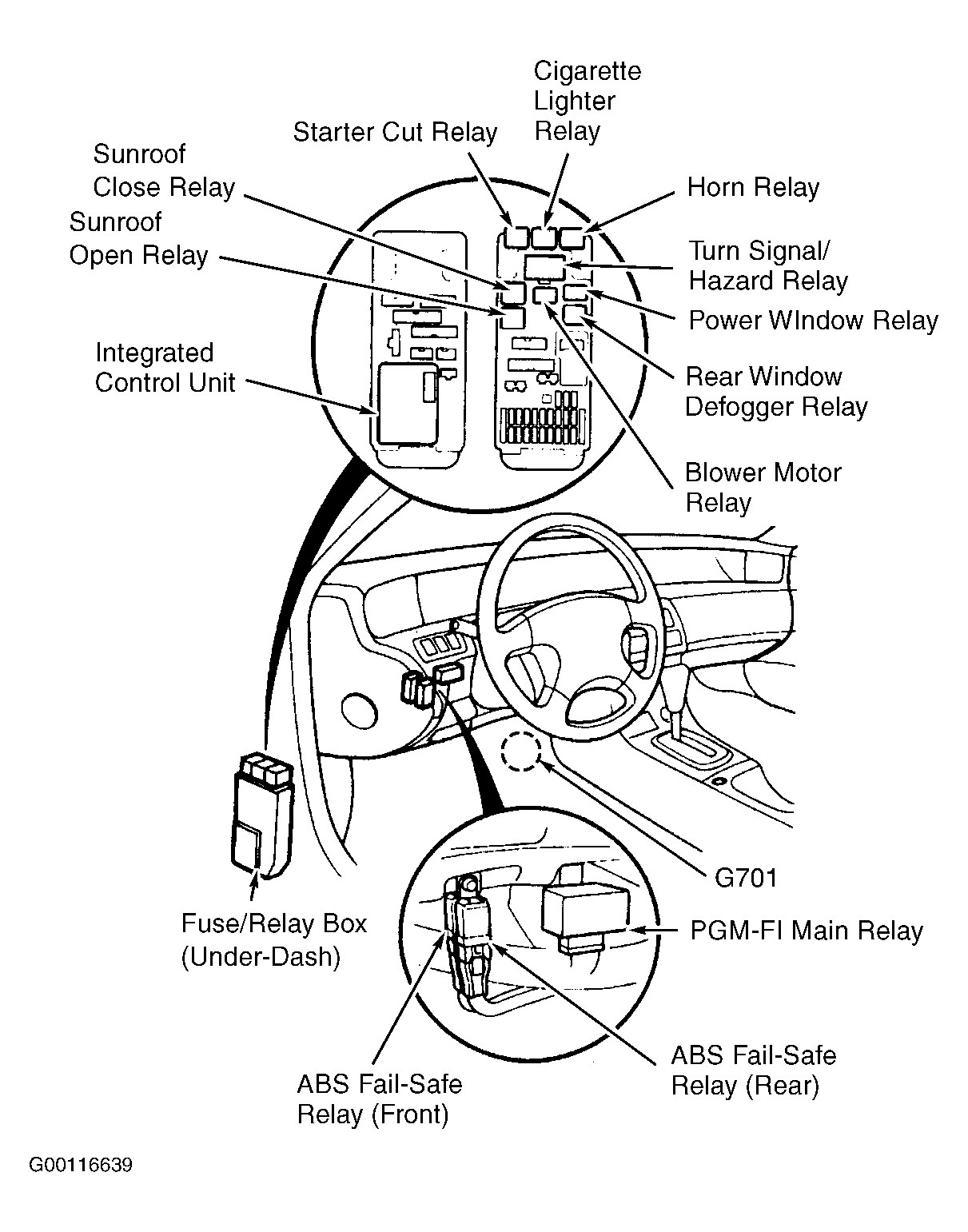

| Integrated Control Unit | Behind under-dash fuse/relay box. See Figure . |
| Interlock Control Unit (A/T) | Behind left side of dash, above kick panel. |
| Power Door Lock Control Unit | In driver's door, behind door panel. See Figure . |
| Powertrain Control Module (PCM) | On passenger-side footwell, under carpet. See Figure . |
| Radiator Fan Control Module | On passenger-side footwell, under carpet. See Figure . |
| SRS Control Unit | Under center of dash, forward of floor console. See Figure . |
| Transmission Control Module | Behind right kick panel. |
