Fuel Consumption Display Select Switch Test/Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the switch (B).

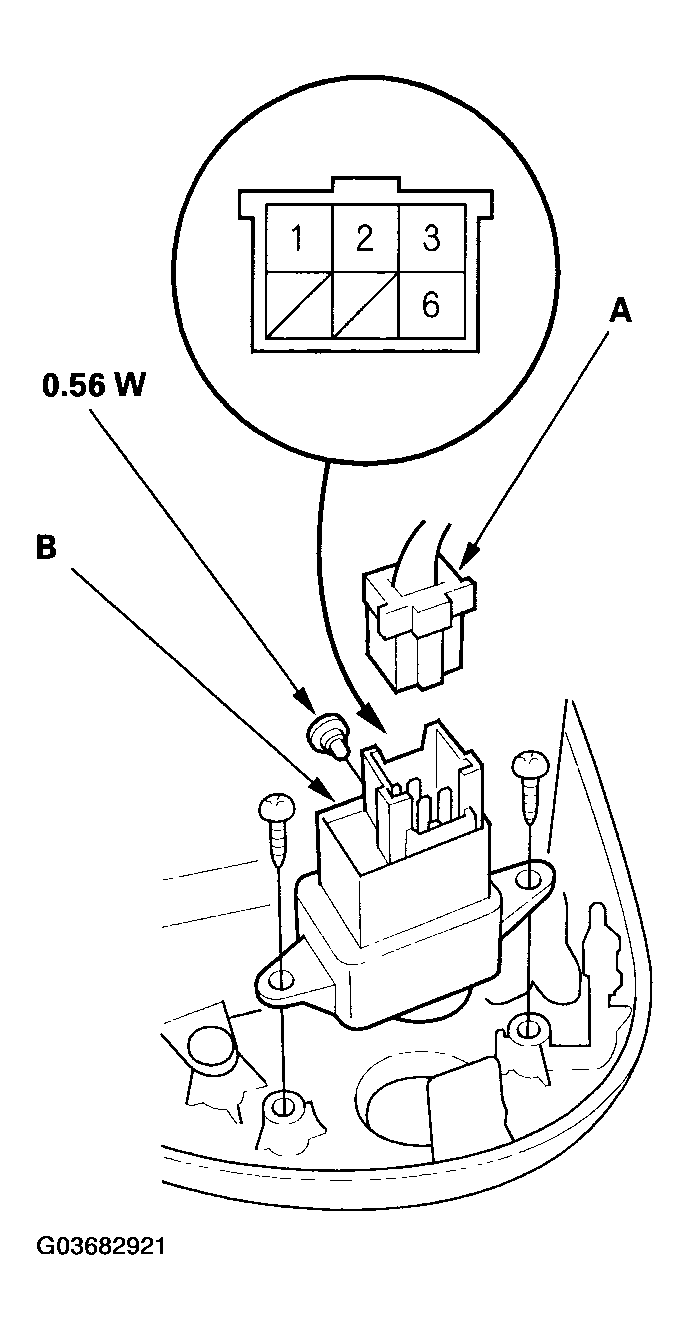

    Fig 1: Disconnecting 6P Connector From Switch
    G03682921Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws and the switch.
  4. Check for continuity between the No. 6 and No. 1 terminals when the switch is pushed. There should be continuity.
  5. If the continuity check is not as specified, replace the switch.
