Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit (2.3L) | Behind left kick panel. See Figure. |
| ABS Control Unit (3.0L) | Behind right kick panel. |
| ABS-TCS Control Unit | Behind right kick panel. |
| Climate Control Unit | Behind center of dash. |

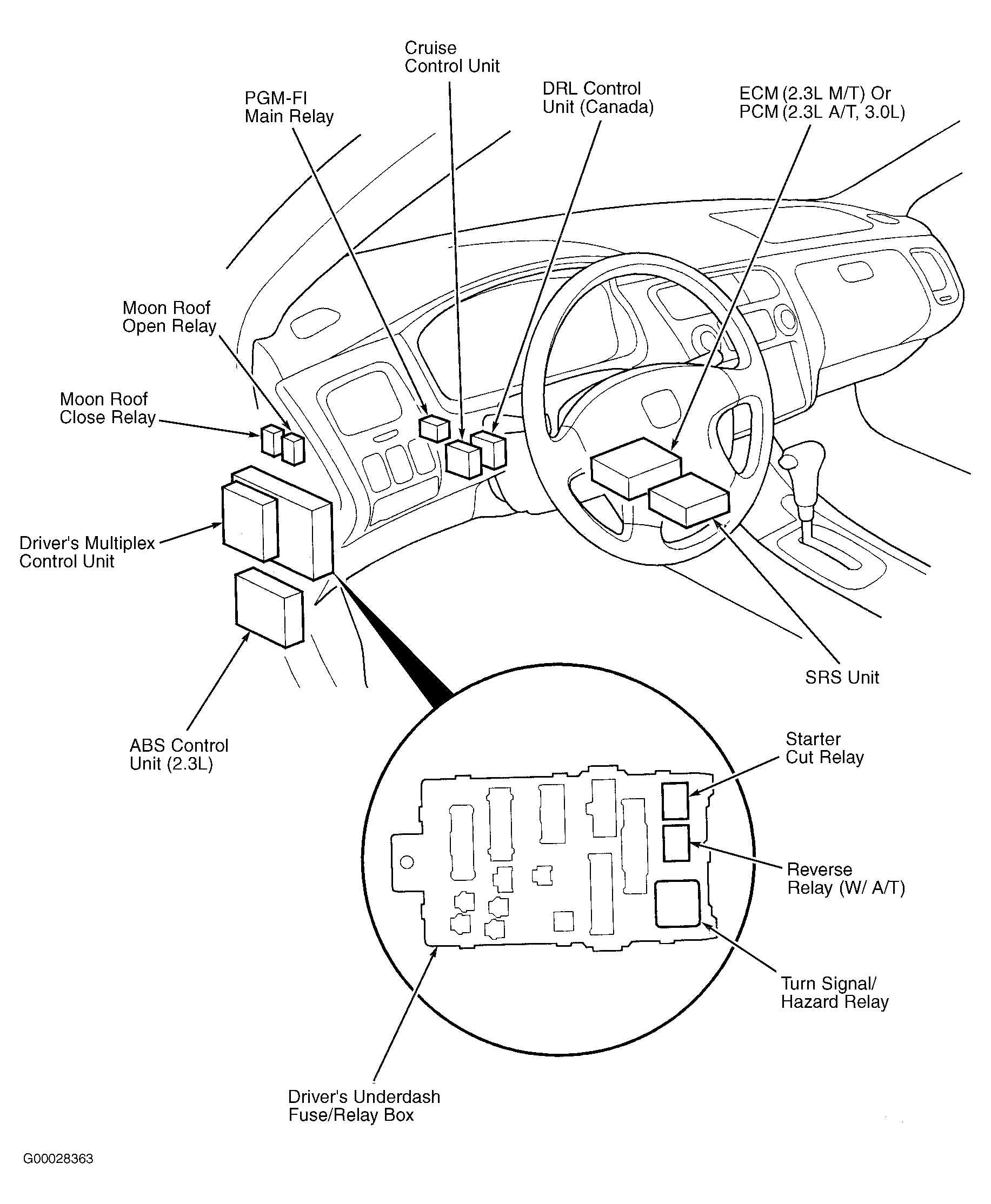

| Cruise Control Unit | Behind left side of dash, left of steering column. See Figure. |
| Door Multiplex Control Unit | In master power window switch. |
| Driver's Multiplex Control Unit | Behind left fuse box cover. See Figure. |
| DRL Control Unit (Canada) | Behind left side of dash, left of steering column. See Figure. |
| ECM (2.3L M/T) | Behind center of dash, forward of floor console. See Figure. |

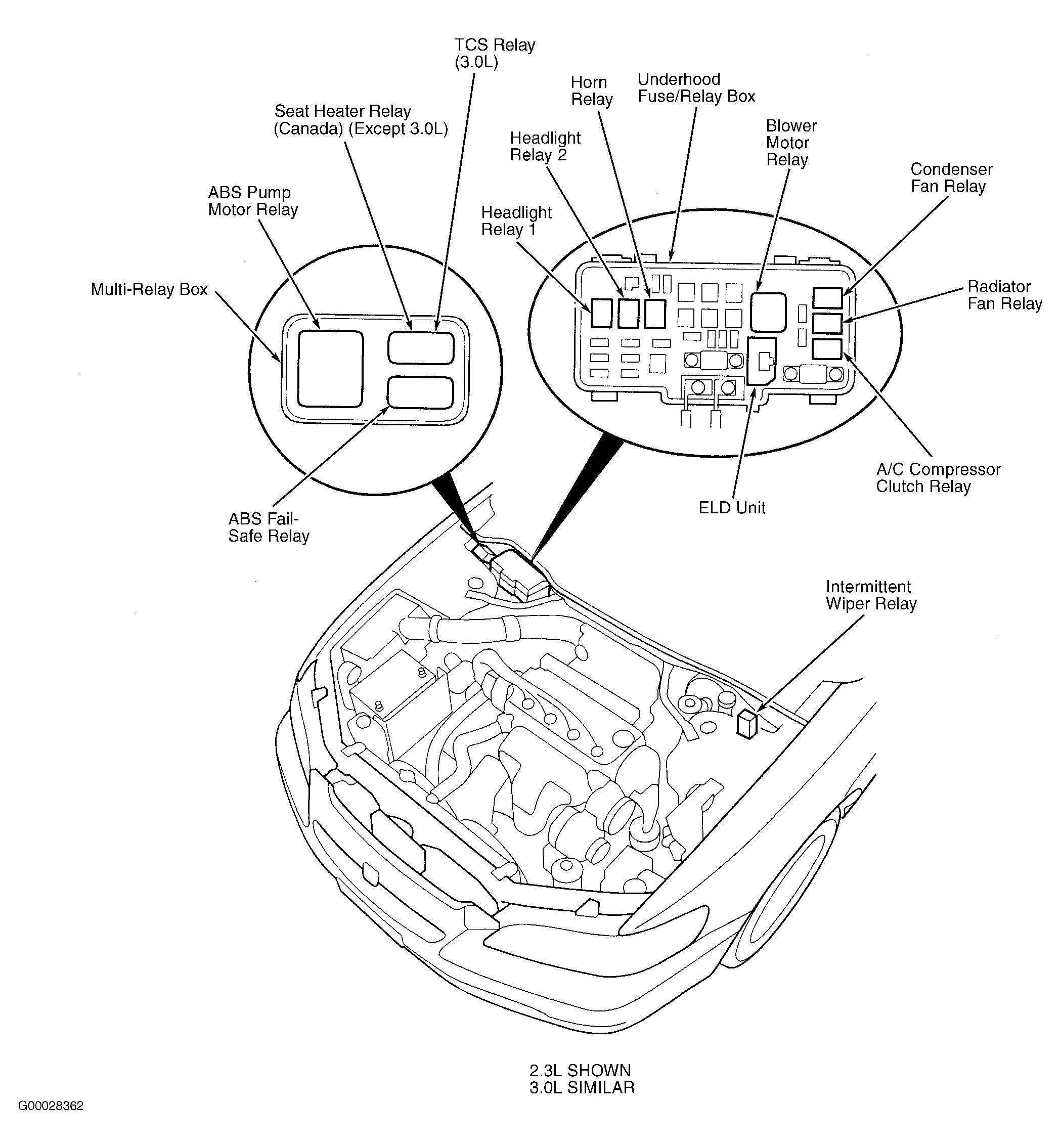

| ELD Unit | In underhood fuse/relay box. See Figure. |

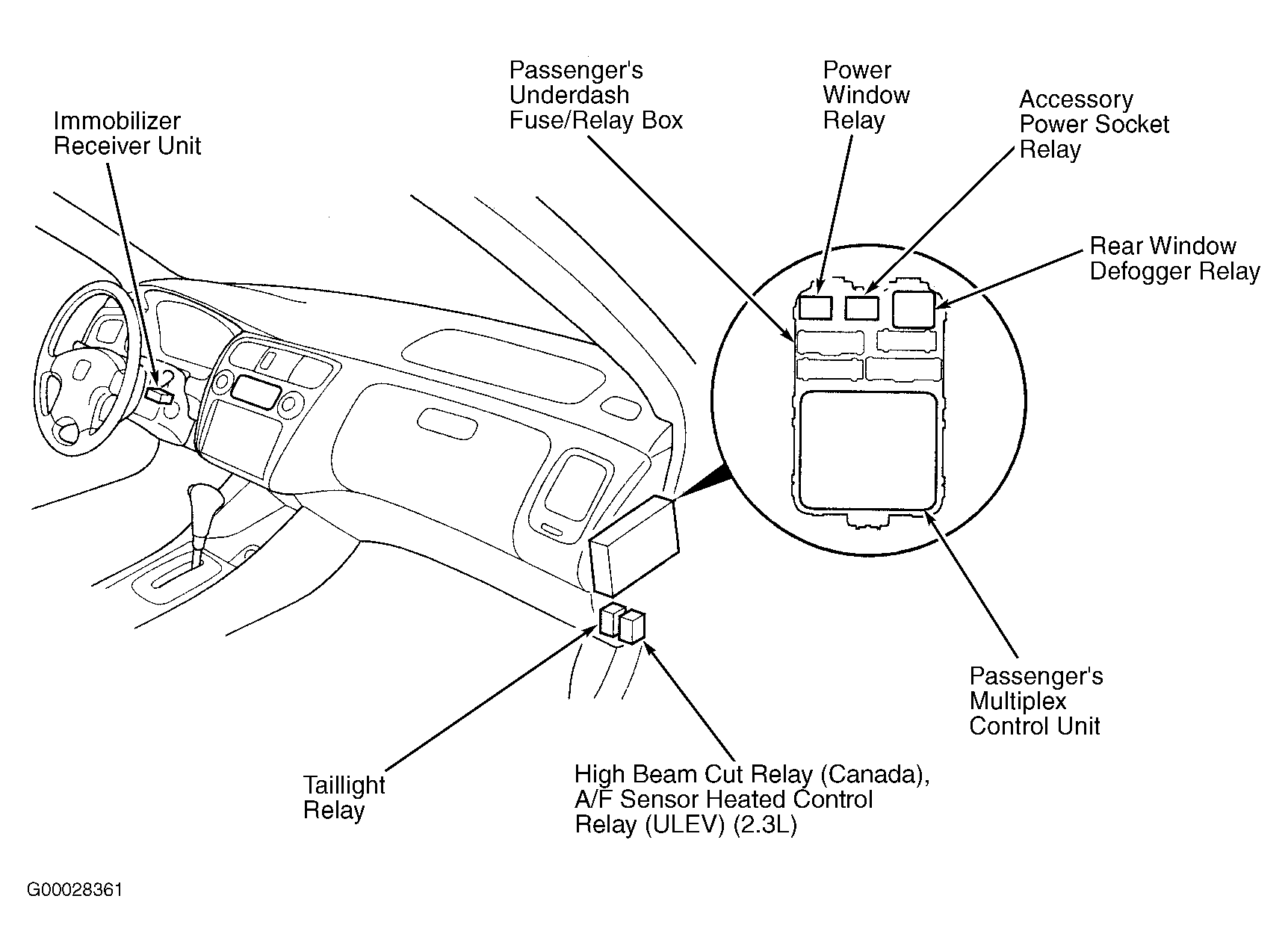

| Immobilizer Receiver Unit | On ignition lock. See Figure. |

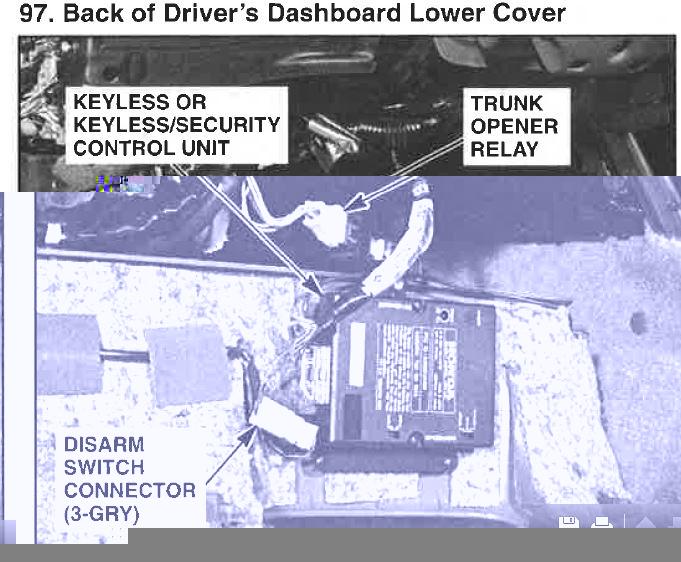

| Keyless or Keyless/Security Control Unit | Behind lower left dash. See Figure. |
| OPDS Unit | In front passenger's seat back. |
| Passenger's Multiplex Control Unit | Behind right fuse box cover. See Figure. |
| PCM (2.3L A/T) | Behind center of dash, forward of floor console. See Figure. |
| PCM (3.0L) | Behind center of dash, forward of floor console. See Figure. |
| Radiator Fan Control Module | Behind glove box. |
| SRS Unit | Behind center of dash, forward of floor console. See Figure. |
