Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Modulator Control Unit | On right rear of engine compartment. |

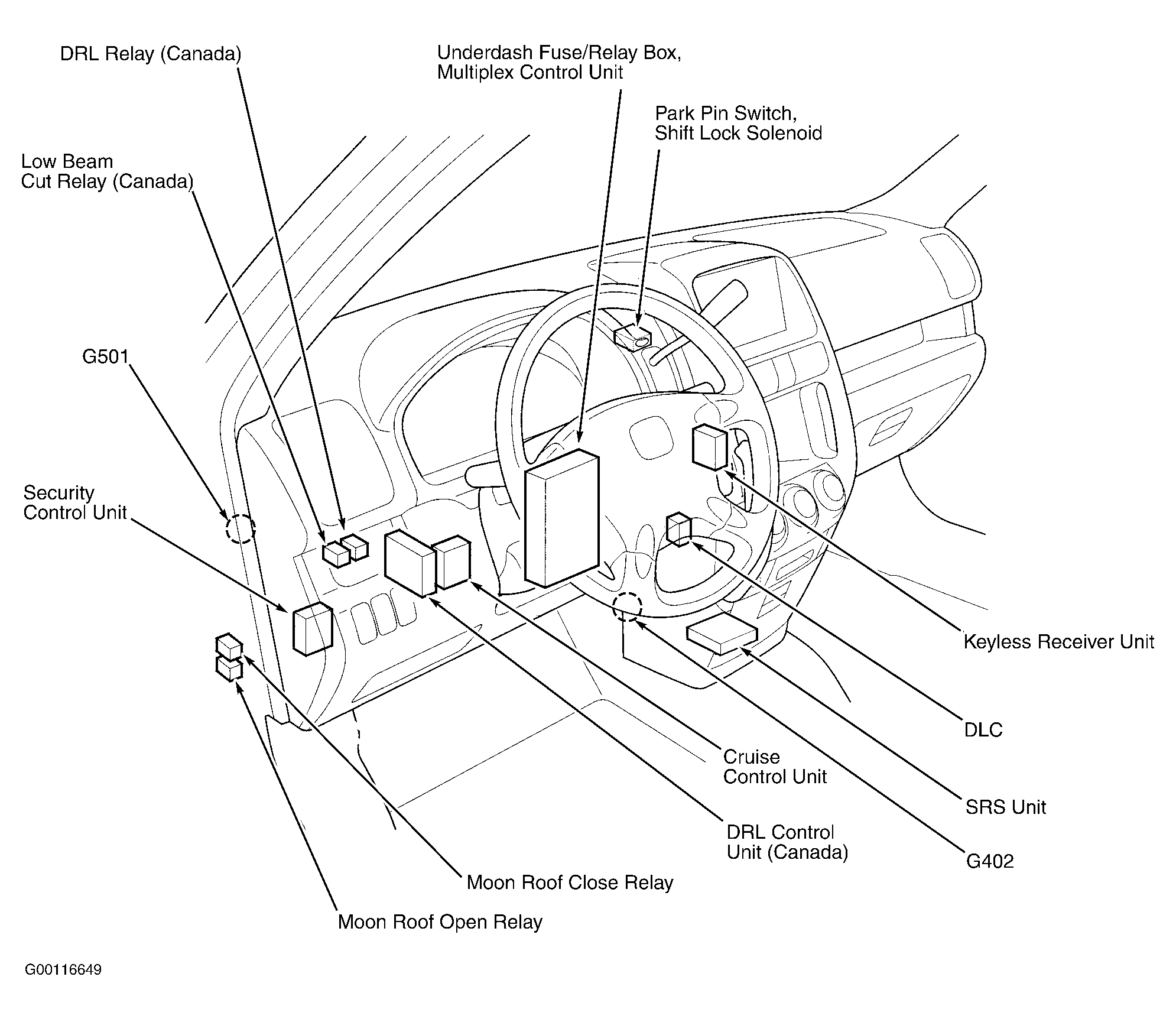

| Cruise Control Unit | Below left side of dash. See Figure . |
| DRL Control Unit (Canada) | Below left side of dash. See Figure . |

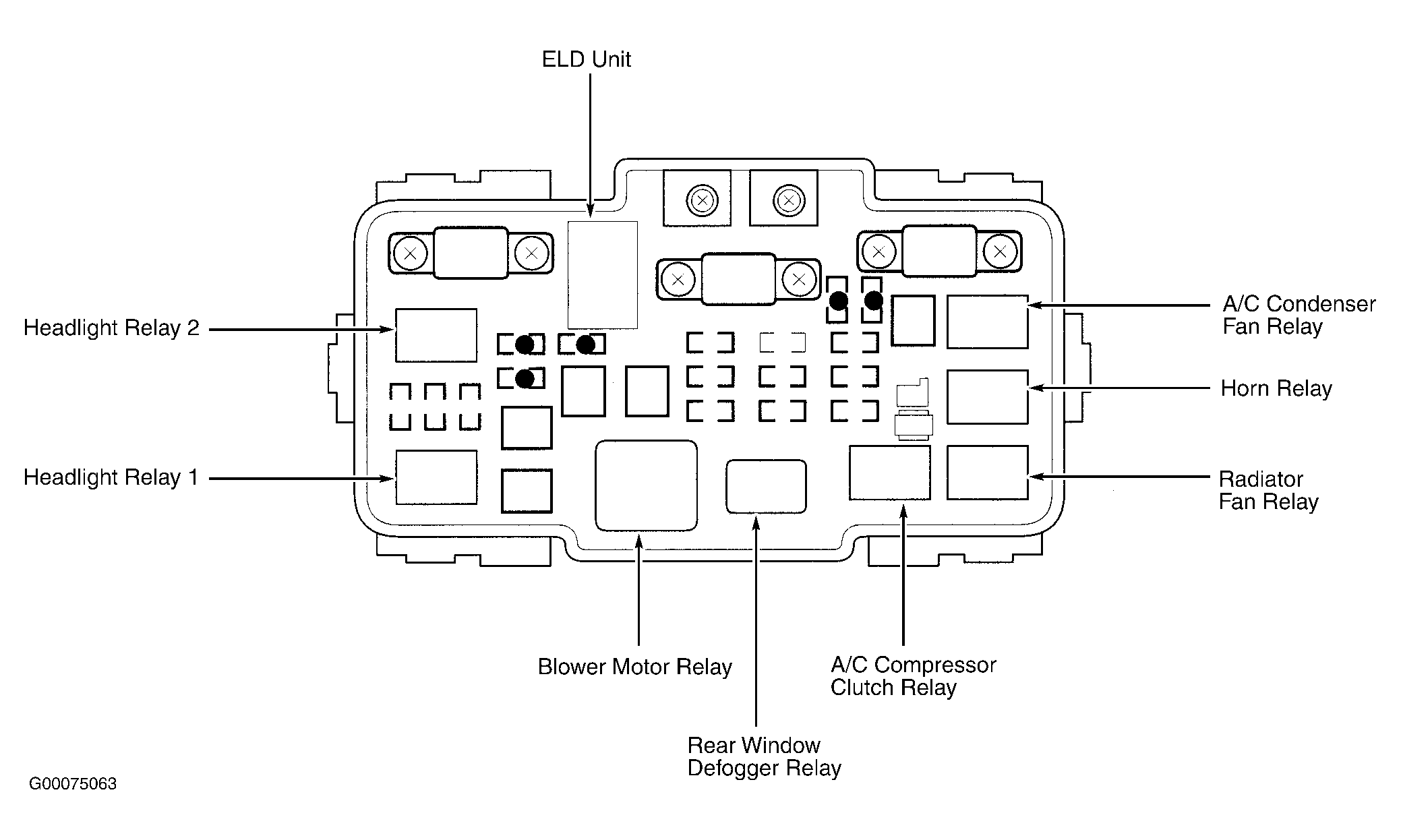

| ELD Unit | In underhood fuse/relay box. See Figure . |

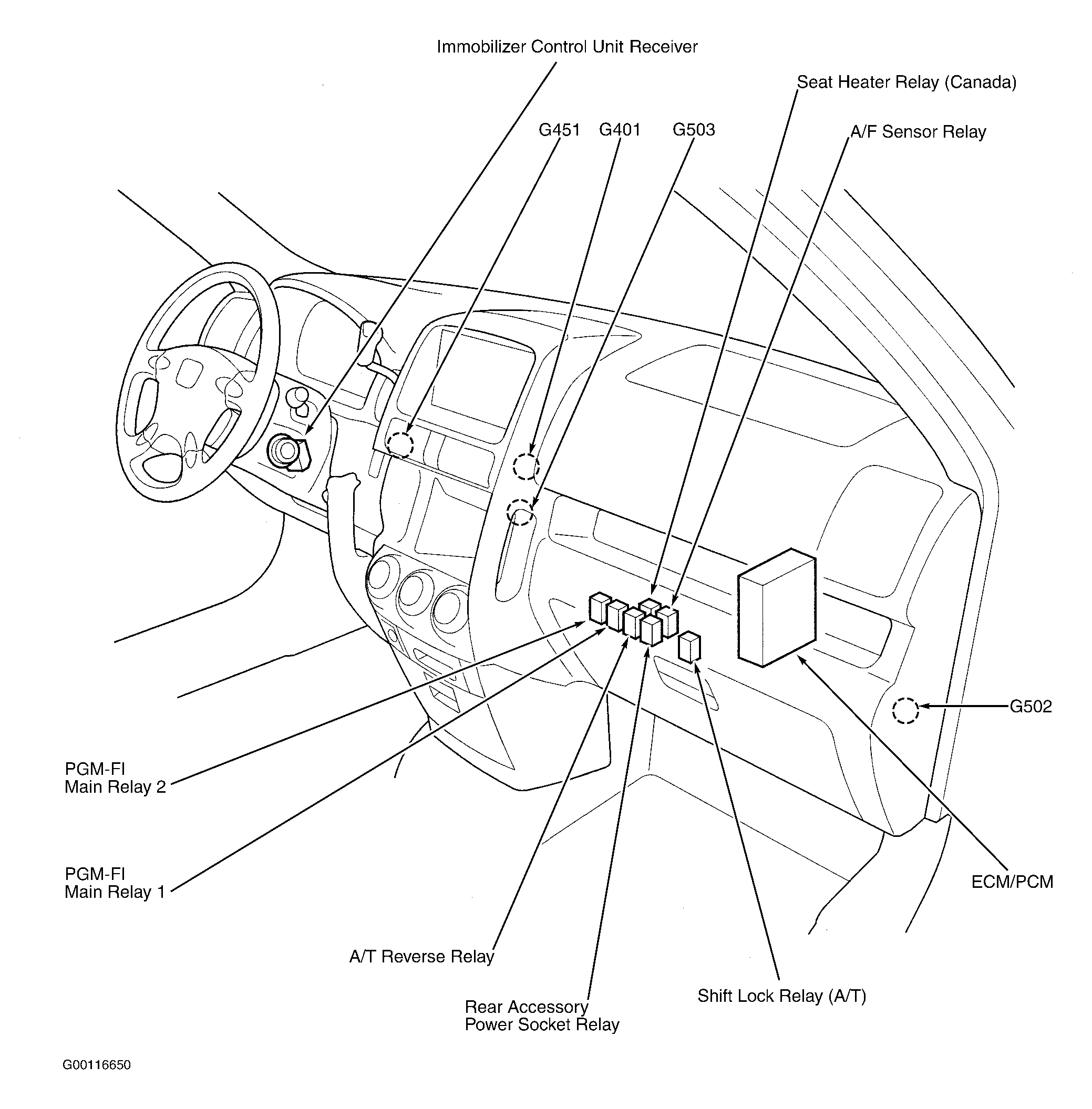

| ECM/PCM | Behind right side of dash. See Figure . |
| Immobilizer Control Unit-Receiver | On steering column, integral to ignition switch. See Figure . |
| Multiplex Control Unit | In underdash fuse/relay box. See Figure . |
| Rear Wiper Control Unit | Behind right rear quarterpanel. |
| Security Control Unit | Behind left side of dash. See Figure . |
| SRS Unit | Below center of dash. See Figure . |
