Home >> Honda >> 2002 >> Civic Si >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Circuit Protection Devices

Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

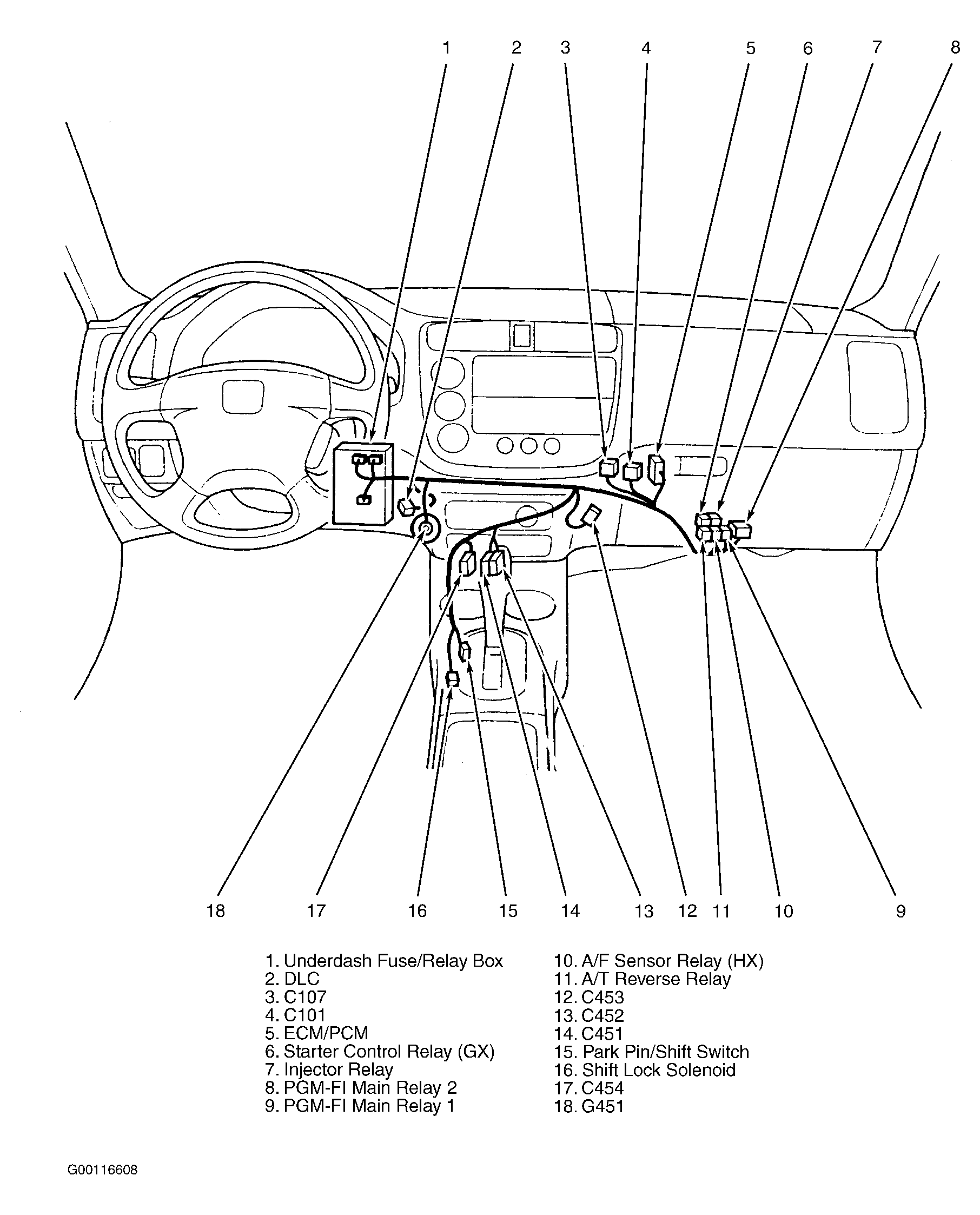

Underdash Fuse/Relay Box Under left side of dash. See Figure.

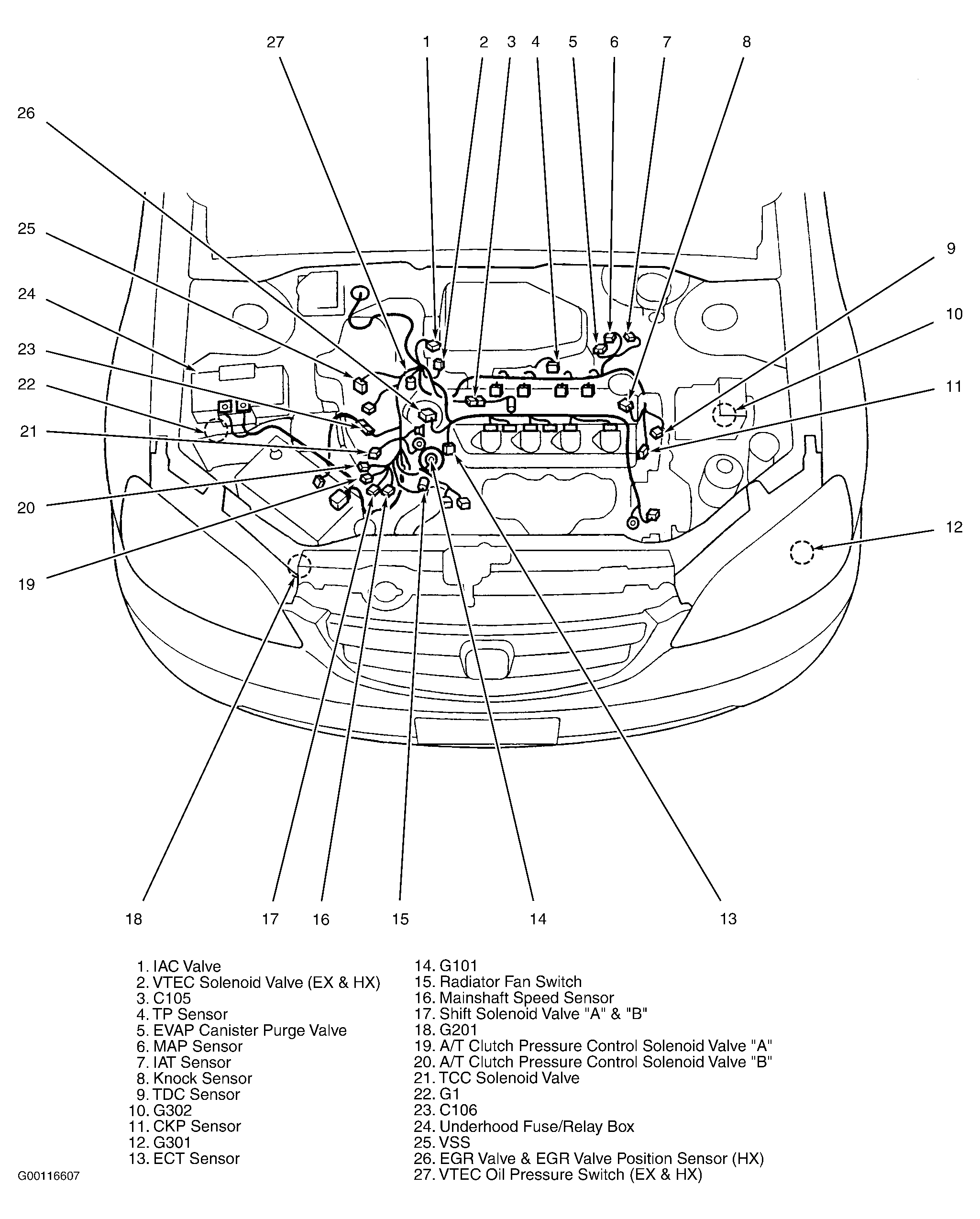

Underhood Fuse/Relay Box Right side of engine compartment. See Figure.
