Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS/TCS Control Unit | Below left side of dash. |
| ABS/TCS Modulator Unit | Left side of engine compartment. |
| Cruise Control Unit | Under dash, right of steering column. |
| Door Multiplex Control Unit | In driver door. |

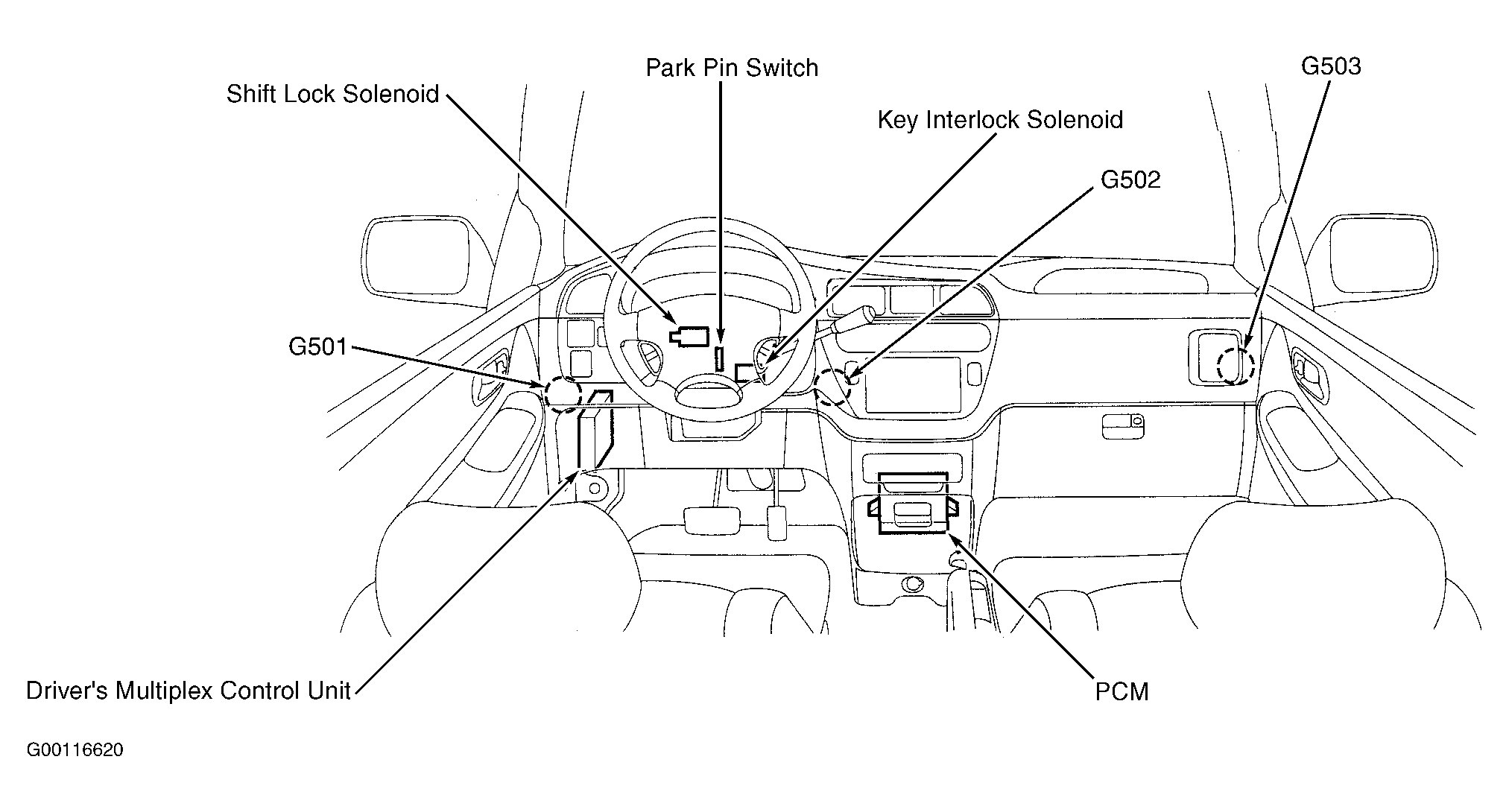

| Driver's Multiplex Control Unit | In driver underdash fuse/relay box. See Figure. |
| DRL Control Unit | Behind center of dash. |

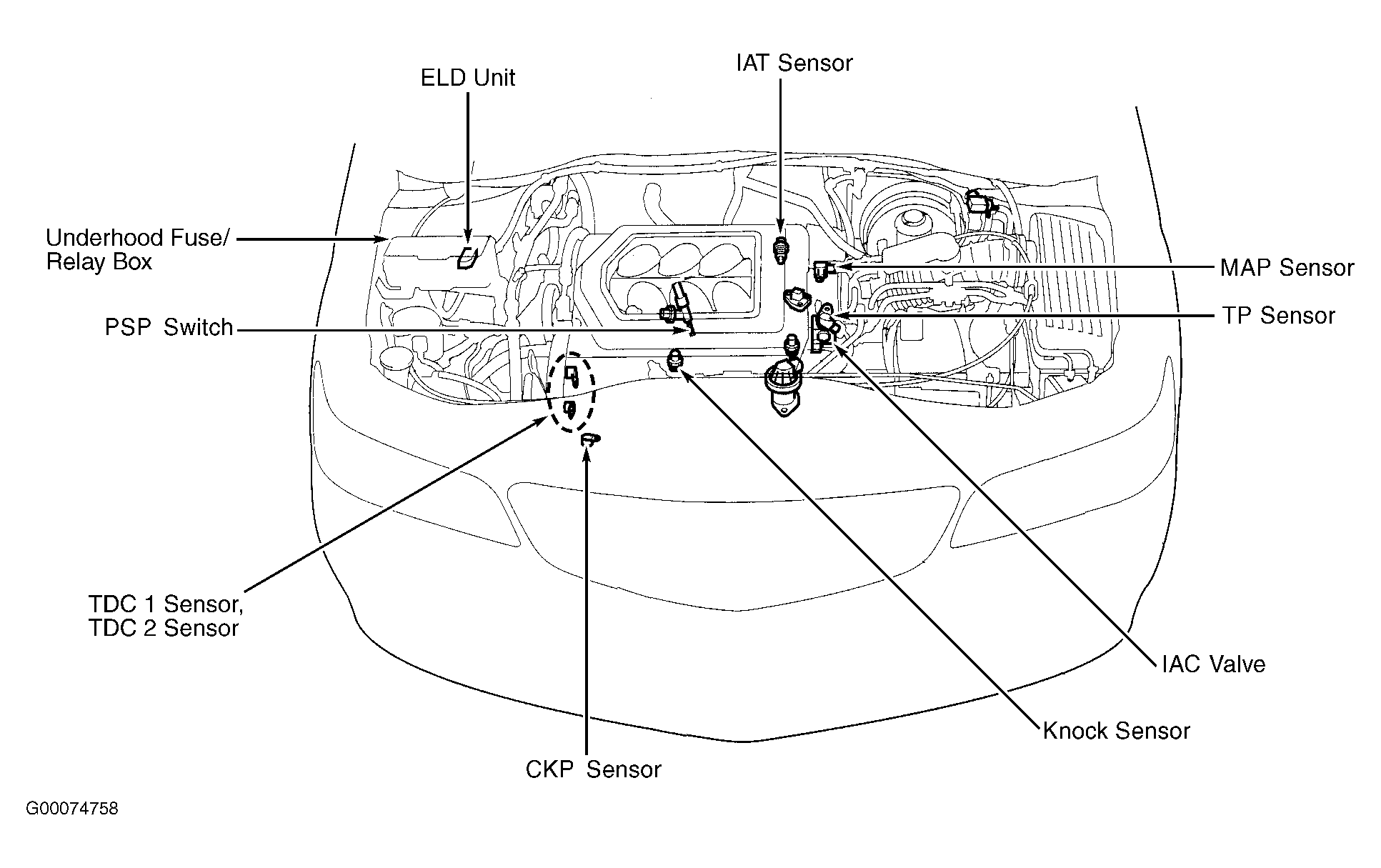

| ELD Unit | In underhood fuse/relay box. See Figure. |
| Immobilizer Receiver Unit | On steering column, near steering lock. |
| Keyless Control Unit | Behind dash, right of steering column. |
| Keyless Receiver Unit | Behind right end of dash. |
| Keyless & Security Control Unit | Behind dash, right of steering column. |
| OPDS Unit | Inside passenger seat. |
| Passenger Multiplex Control Unit | In passenger underdash fuse/relay box. |
| PCM | Behind lower center of dash. See Figure. |
| Power Sliding Door Control Unit (Left) | Behind left rear side trim panel. |
| Power Sliding Door Control Unit (Right) | Behind right rear side trim panel. |
| Rear Window Wiper Intermittent Control Unit | On left rear fenderwell, in cargo area. |
| Sliding Door Lock Control Unit | In left sliding door. |
| SRS Unit | Behind lower center of dash. |
