Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

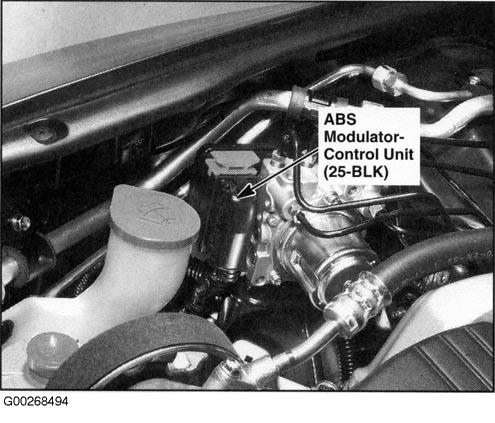

| ABS Modulator-Control Unit | At right side of engine compartment. See Figure. |

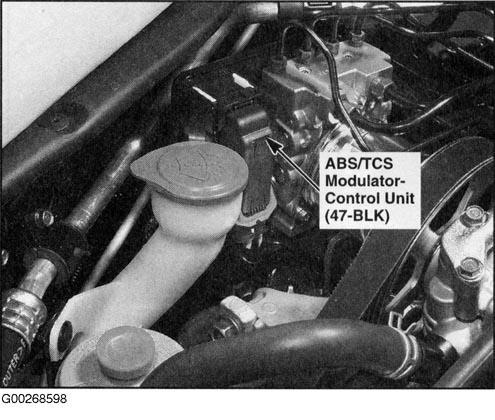

| ABS/TCS Modulator-Control Unit (3.0L) | At right side of engine compartment. See Figure. |

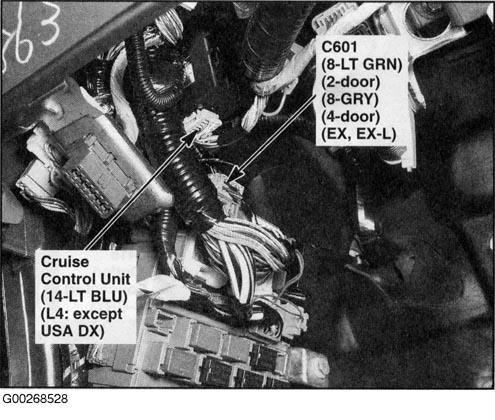

| Cruise Control Unit (L4) (Except USA DX) | Behind left side of dash. See Figure. |

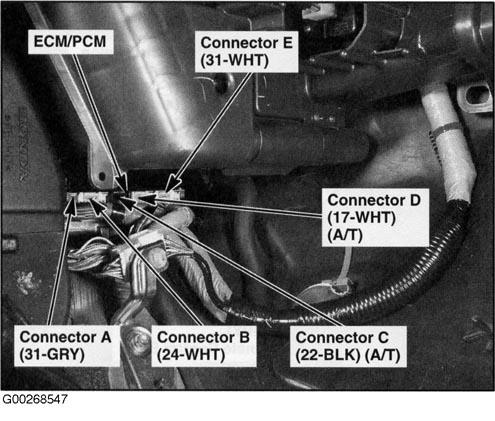

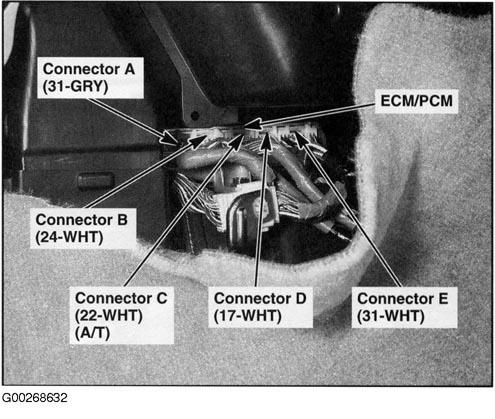

| ECM/PCM (2.4L) | Under middle of dash. See Figure. |
| ECM/PCM (3.0L) | Under middle of dash. See Figure. |

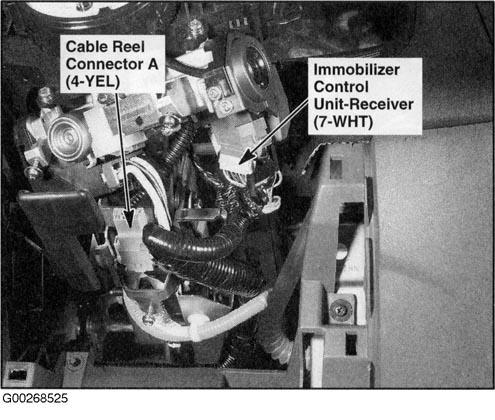

| Immobilizer Control Unit-Receiver | In steering column cover. See Figure. |

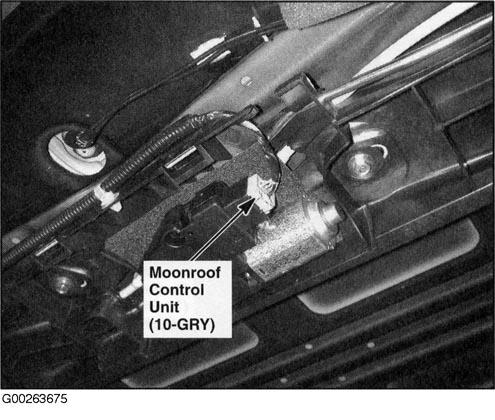

| Moon Roof Control Unit (EX & EX-L) (Coupe) | At rear of roof. See Figure. |

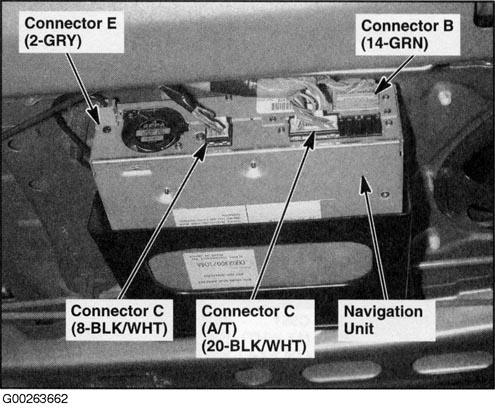

| Navigation Unit (EX-L) | In trunk, under middle of rear shelf. See Figure. |

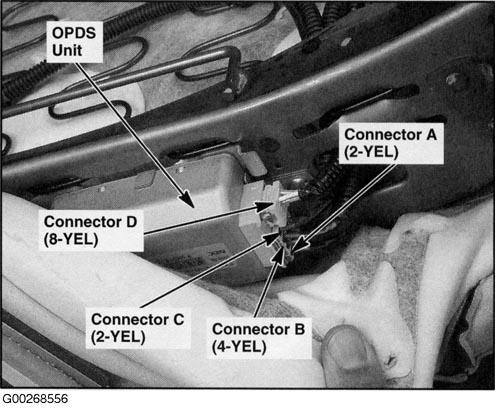

| OPDS Unit (Except DX) | In front passenger's seat back. See Figure. |

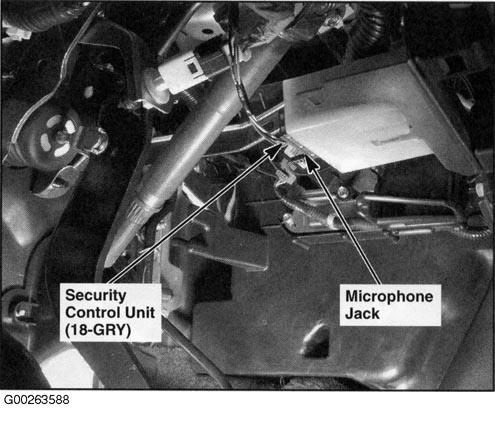

| Security Control Unit (DX & LX) (Honda Accessory) | Under left side of dash. See Figure. |

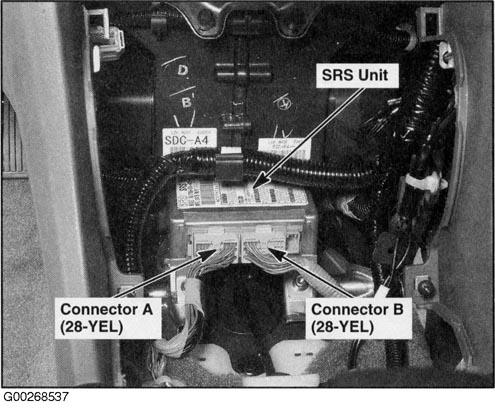

| SRS Unit (2.4L Shown) | Under middle of dash. See Figure. |

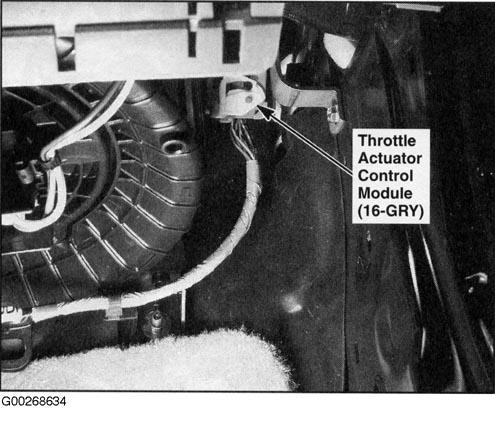

| Throttle Actuator Control Module (3.0L) | Under right side of dash. See Figure. |
