Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

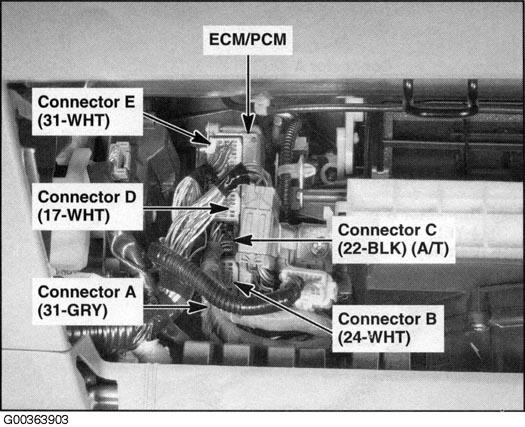

| ECM/PCM | Behind right side of dash. See Figure . |
| ELD Unit | In underhood fuse/relay box. See Figure . |

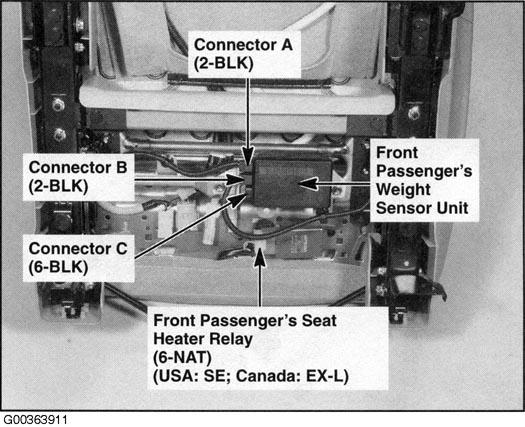

| Front Passenger's Weight Sensor Unit | Under front passenger's seat. See Figure . |

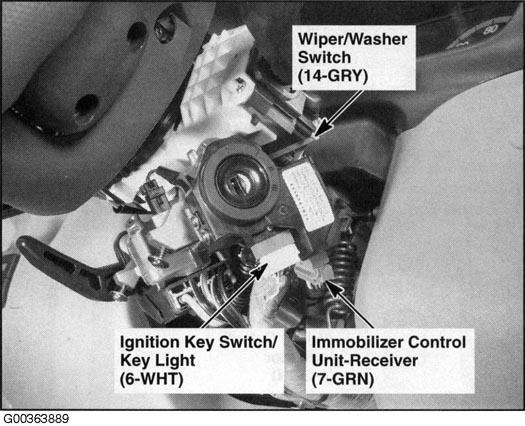

| Immobilizer Control Unit Receiver | On steering column, integral to ignition switch. See Figure . |

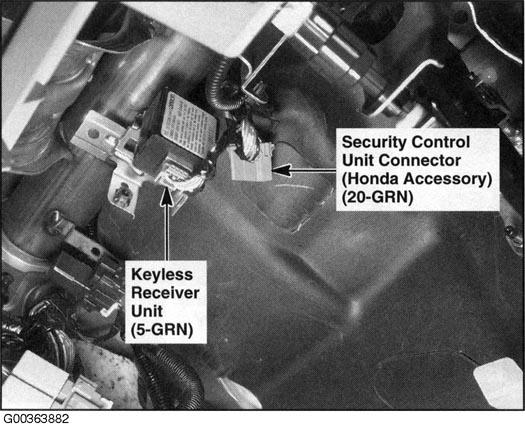

| Keyless Receiver Unit | Under middle of dash. See Figure . |

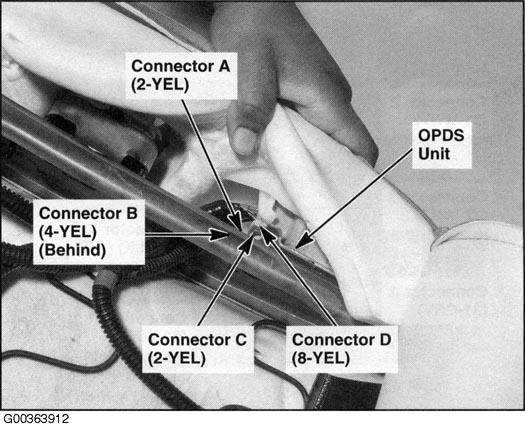

| OPDS Unit | In front passenger's seat. See Figure . |

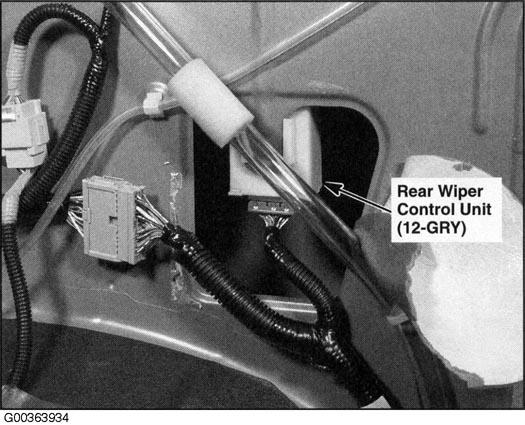

| Rear Wiper Control Unit | Behind right rear quarter panel. See Figure . |
| Security Control Unit Connector | Behind left side of dash. See Figure . |

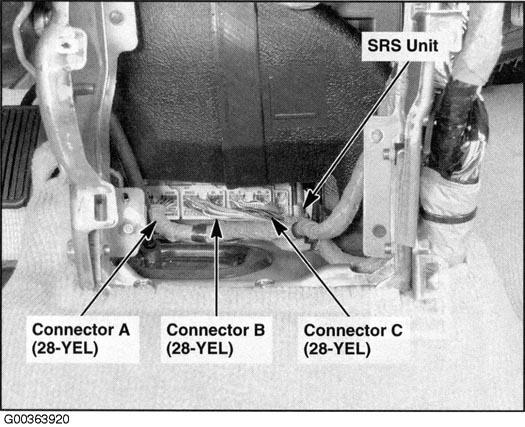

| SRS Unit | Below center of dash. See Figure . |

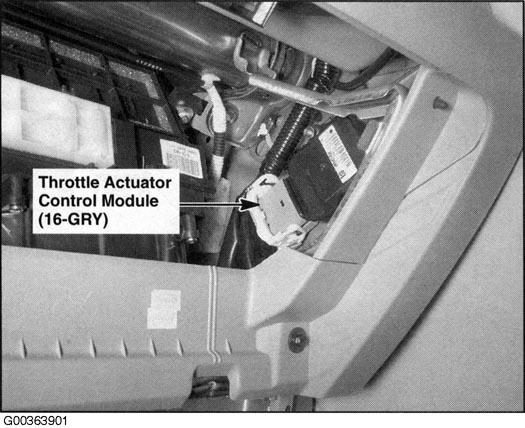

| Throttle Actuator Control Module | Behind right side of dash. See Figure . |

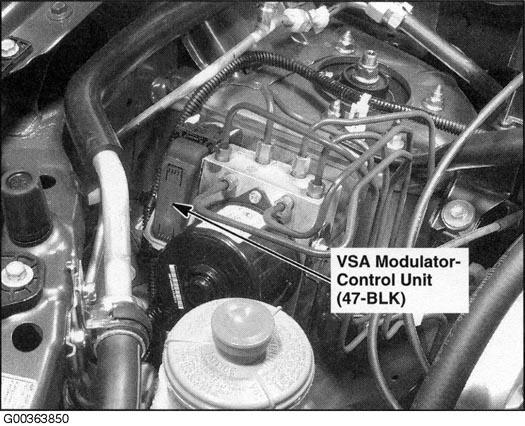

| VSA Modulator Control Unit | On right side of engine compartment. See Figure . |
