MAP Sensor Replacement

  1. Remove the engine cover (see step 7 under ENGINE REMOVAL ).
  2. Disconnect the MAP sensor 3P connector (A).

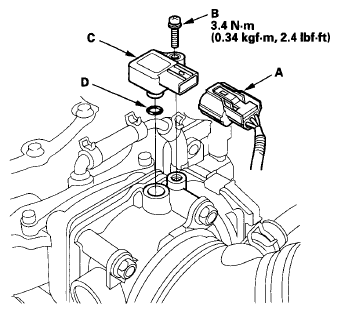

    Fig 1: Identifying MAP Sensor 3P Connector, MAP Sensor And O-Ring
    G06276794Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
