For Some Models

NOTE:
  • Take care not to scratch the center console.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION  ).
  2. Gently pull out the center console rear trim (A) to detach the hooks (B) and clip.

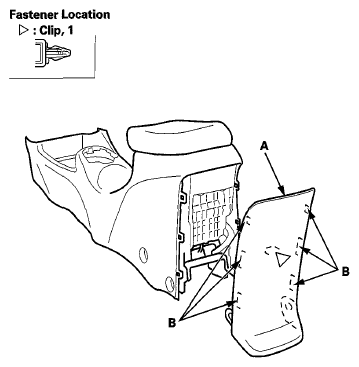

    Fig 1: Identifying Center Console Rear Trim And Hooks
    G06431057Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws (A, B), then remove the center console armrest (C).

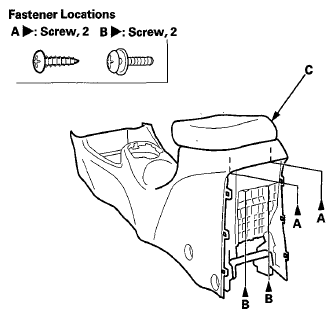

    Fig 2: Identifying Center Console Armrest And Screws
    G06431058Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Console box replacement

  4. If equipped, disconnect the USB unit connector (A), detach the harness clips (B), and remove the screws, then remove the console box (C).

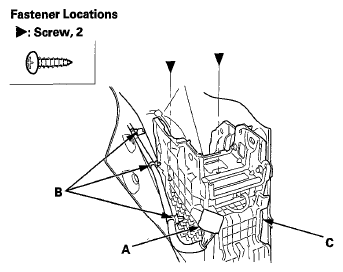

    Fig 3: Identifying USB Unit Connector And Harness Clips
    G06431059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the armrest in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
    • Make sure the USB unit connector is plugged in properly.
