USB Adapter Control Unit Replacement

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the center console armrest (see CENTER CONSOLE ARMREST REPLACEMENT ).
  3. Remove the console box (see COMPONENT LOCATION INDEX ).
  4. Disconnect the connector (A) from the USB adapter control unit (B).

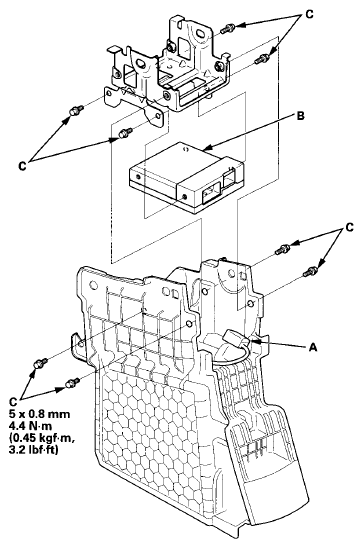

    Fig 1: Connector, USB Adapter Control And Unit Mounting Bolts With Torque Specifications
    G08095046Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the mounting bolts (C) and the USB adapter control unit.
  6. Install the USB adapter control unit in the reverse order of removal.
