Instrument Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center panel:
- with audio (see AUDIO UNIT REMOVAL/INSTALLATION )
- with audio-navigation (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
Tilt the steering column down.
Remove the instrument panel (A).
1. Remove the screw.
2. While carefully lifting the panel with the appropriate trim tool, insert the trim tool into the right edge (B) between the dashboard and the panel.
3. Use the trim tool to gently pry the panel up partially to release the clips (C, D), then pull the panel up to release the panel.
4. Disconnect the power mirror switch connector (E), the ECON switch connector (F) and the climate control unit connectors (G, H).

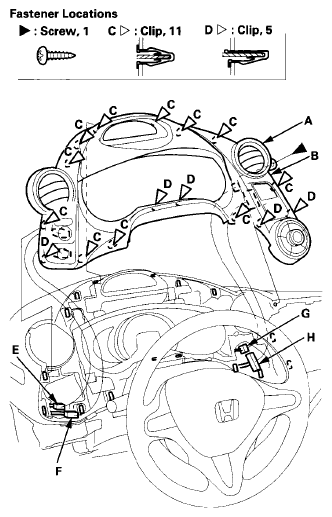

  Fig 1: Identifying Power Mirror Switch, ECON Switch, Climate Control Unit Connectors, Screw And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure each connector is plugged in properly.
