Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Anti-Lock Brake Control Module | In truck compartment, right side panel. |
| Cruise Control Module (1995) | Behind right side of dash, at kick panel. |
| Cruise Control Module (1996) | In center of dash, under radio. |
| Daytime Running Lamp (DRL) Control Module | On left front inner fender panel. |
| Electronic Time & Alarm Control Module (ETACS) (1995) | Under driver's seat. |
| Electronic Time & Alarm Control Module (ETACS) (1996) | Under center of dash, below radio. |

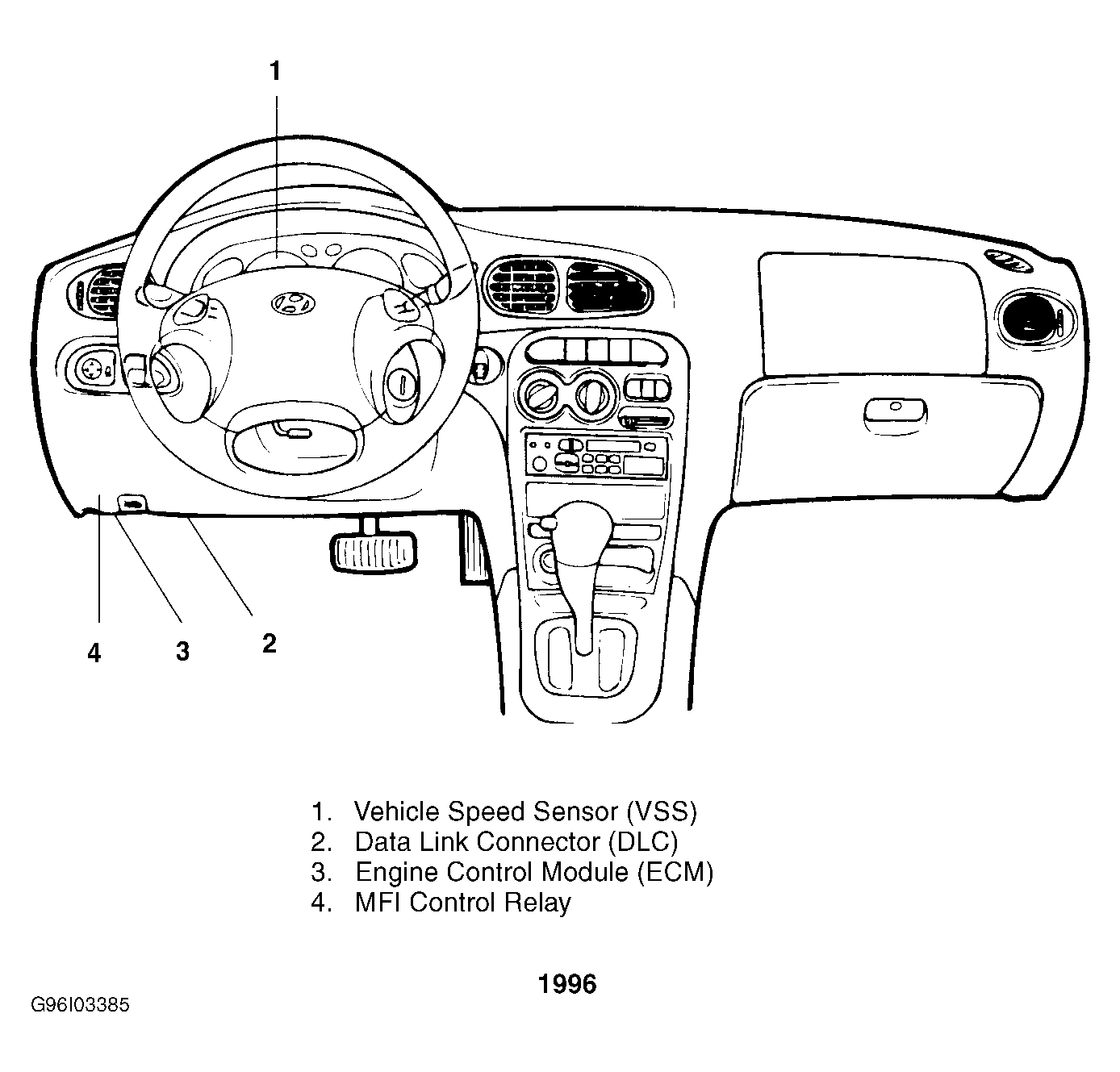

| Engine Control Module (ECM) (1996) | Behind dash, left of steering column. See Figure . |
| Engine Control Module (ECM) (1995) | Behind left side of dash. |
| Passive Restraint Control Module | On bottom of right "B" pillar. |
| SRS Control Module | Under rear console. |
| Transmission Control Module (TCM) (1995) | Below right front seat. |
| Transmission Control Module (TCM) (1996) | Under left side of dash. |
| Transmission & Key Lock Control Module | Under center of dash, forward of center console. |
