Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | In right side of trunk, behind trim. |
| ABS Modulator | In right front corner of engine compartment. |
| A/T & Key Lock Control Module | Behind right side of dash, above kick panel. |
| Cruise Control Module | Below center of dash, in front of console. |
| DRL Control Module | In left front corner of engine compartment, behind left headlamp assembly. |

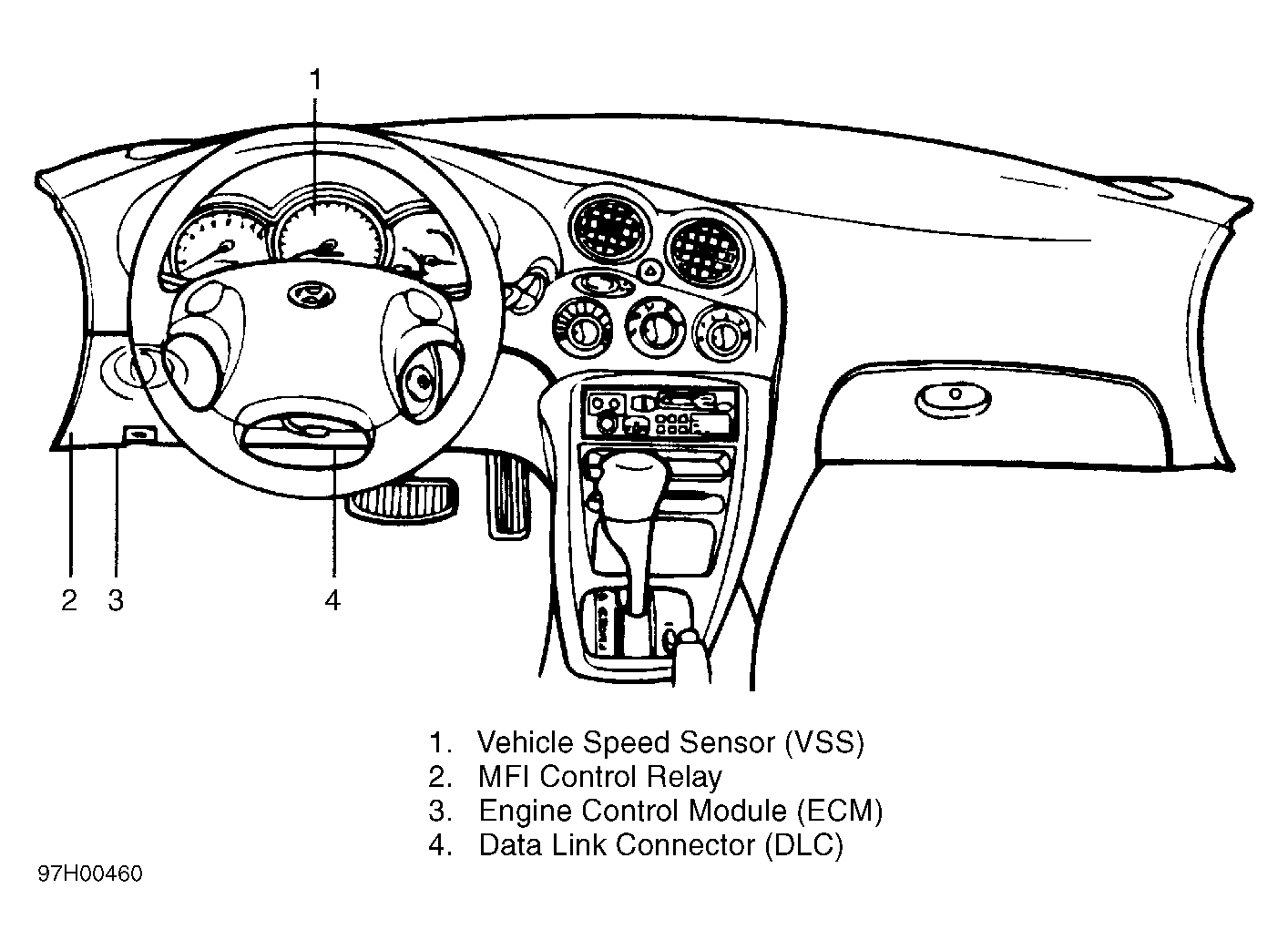

| Engine Control Module (ECM) | Behind left side of dash. See Figure . |
| Electronic Time and Control (ETAC) Module | Below center of dash, in front of console. |
| SRS (Air Bag) Control Module | Below rear of center console. |
| Transaxle Control Module | Behind left side of dash. |
