CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

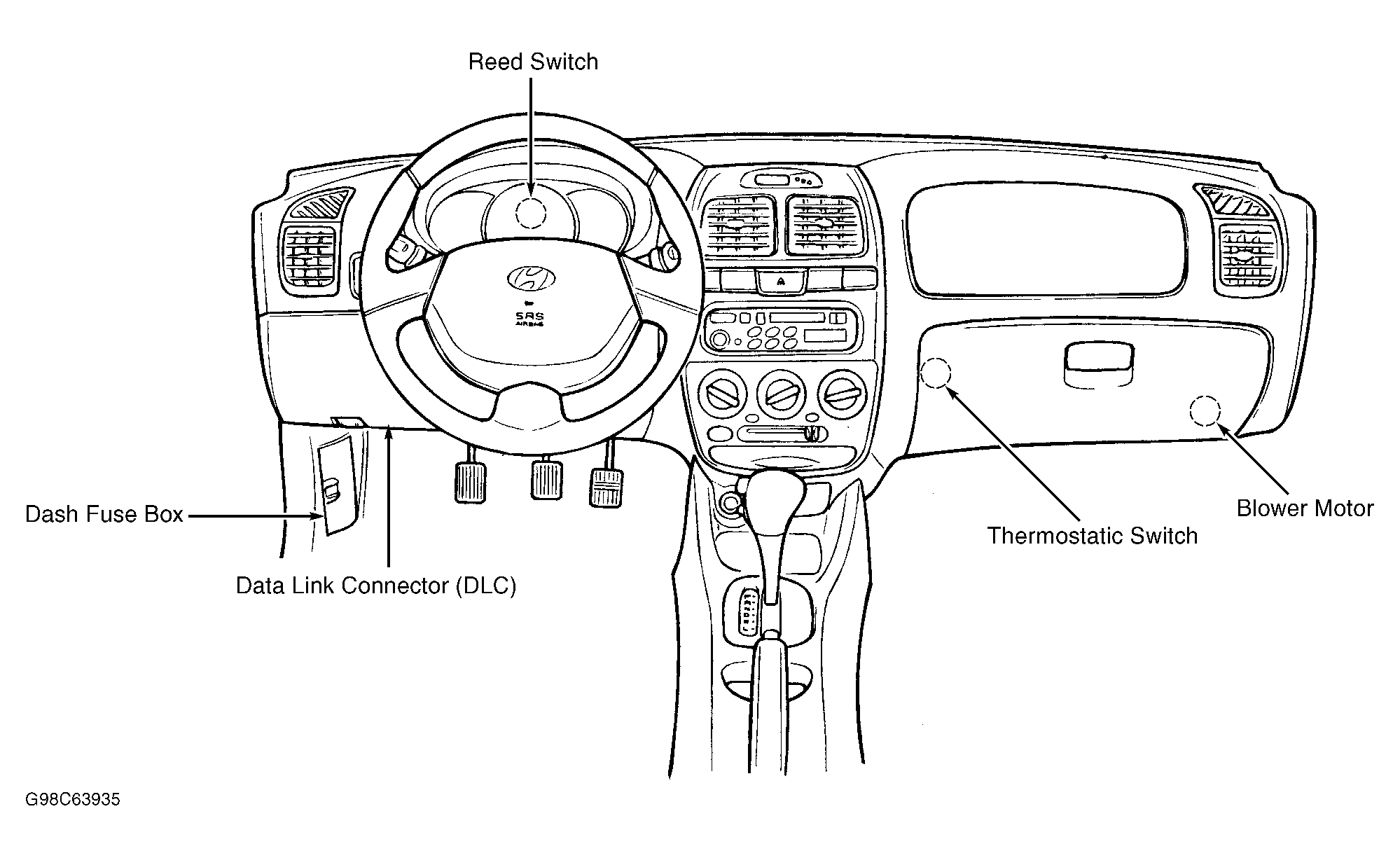

| Dash Fuse Box | Behind left kick panel. See Figure . |
| Diode (Z02) | In dash fuse box. |
| Diode (Z04, Z05) | In engine compartment relay & fuse box. |
| Diode (Z07) | Behind center of dash. |

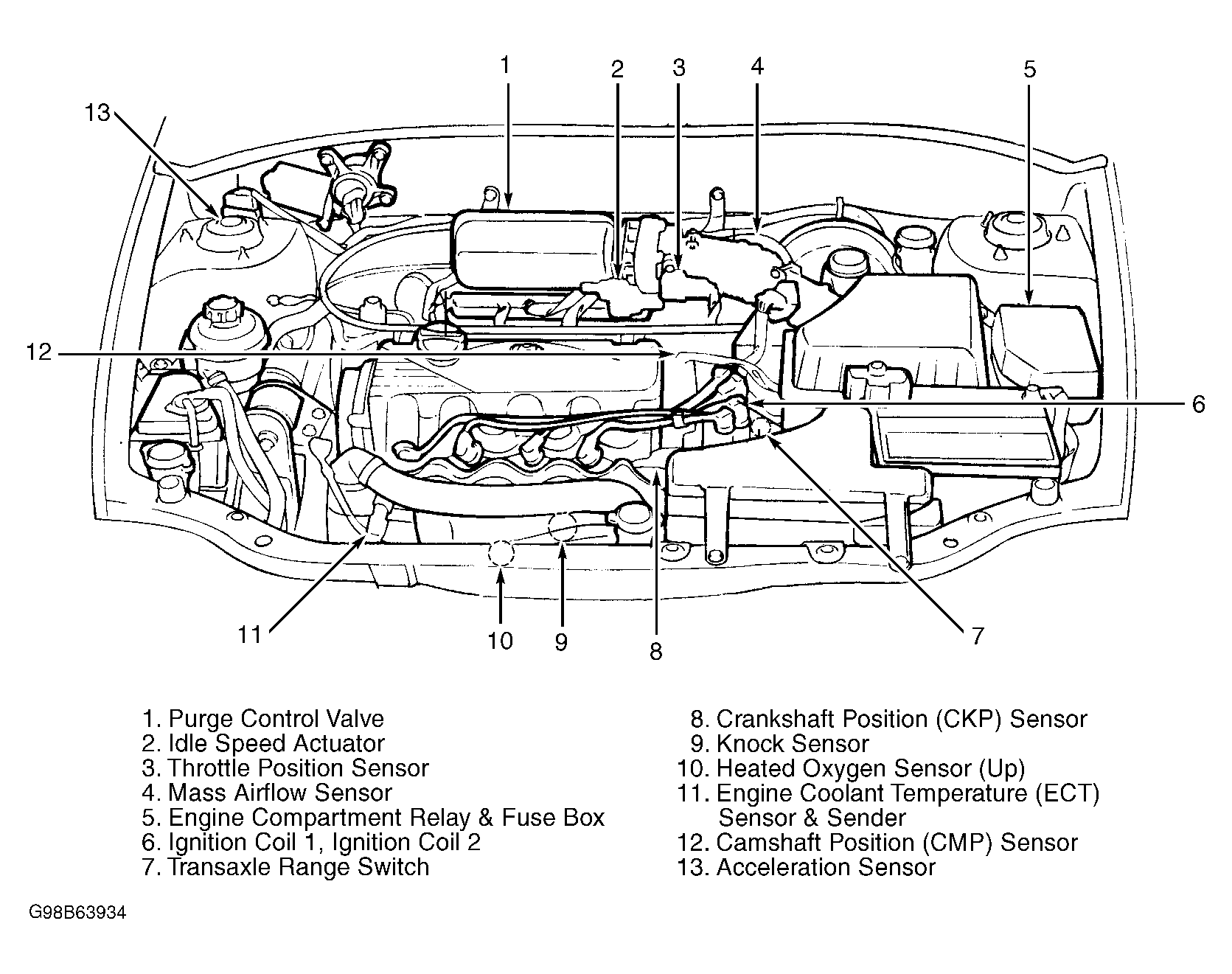

| Engine Compartment Relay & Fuse Box | On left side of engine compartment, in front of strut tower. See Figure . |
| Passenger Compartment Relay Box | Behind left side of dash. |
