Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Dash Fuse Box | Behind left kick panel. See Figure. |
| Diode (Z01, Z02) | In dash fuse box. |
| Diode (Z03) | Taped to rear of dash fuse box. |
| Diode (Z04, Z05) | In engine compartment relay & fuse box. |
| Diode (Z06) | Taped to harness, beside passenger compartment relay box. |
| Diode (Z07) | Behind center of dash. |

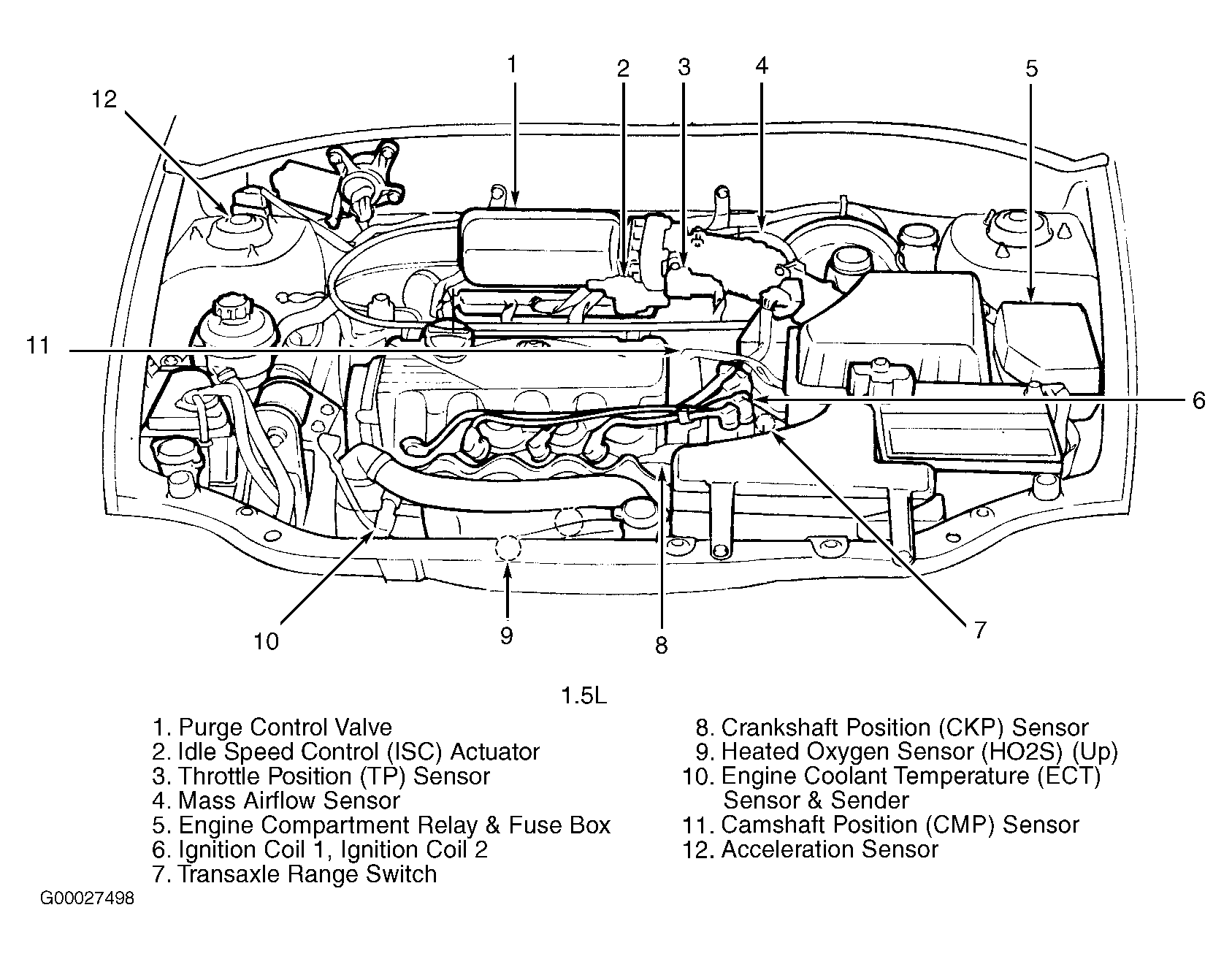

| Engine Compartment Relay & Fuse Box (1.5L) | On left side of engine compartment, in front of strut tower. See Figure. |

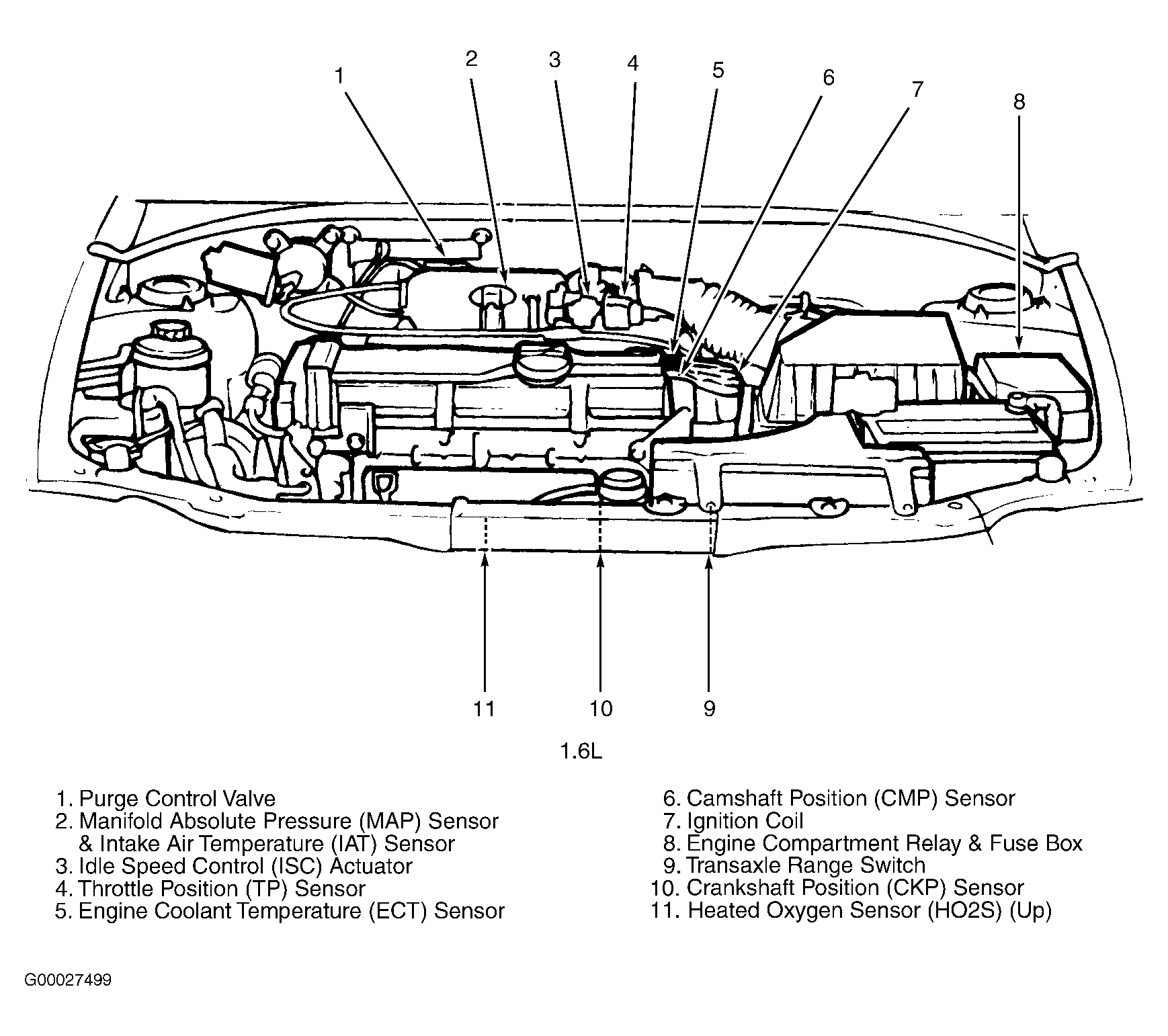

| Engine Compartment Relay & Fuse Box (1.6L) | On left side of engine compartment, in front of strut tower. See Figure. |
| Passenger Compartment Relay Box | Behind left side of dash. |
