Home >> Hyundai >> 2003 >> Accent Base >> Repair and Diagnosis >> Electrical >> Starters >> Overhaul >> Starter Assembly

Starter Assembly

NOTE: Use illustration for exploded view of starter. See Fig 1

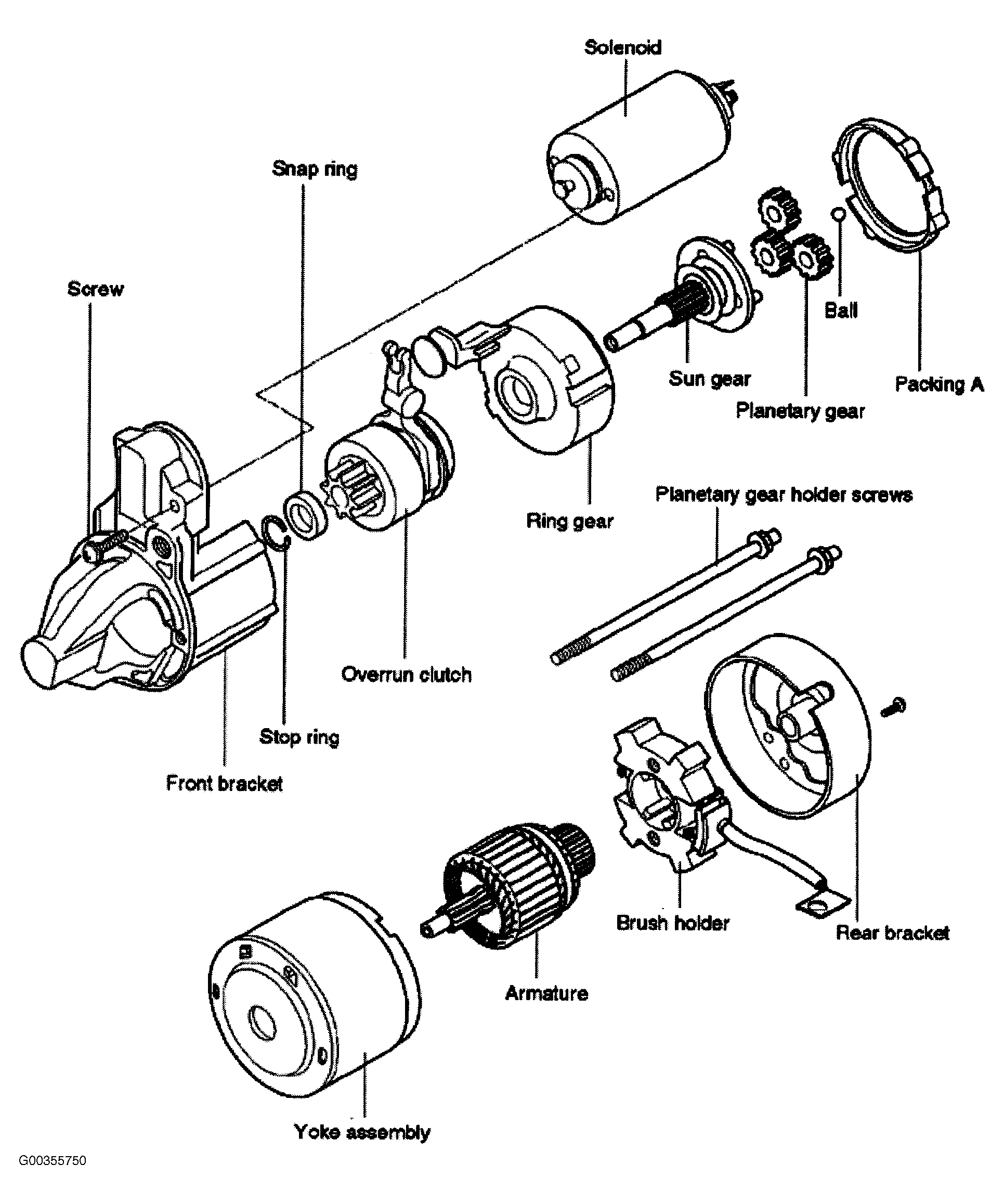

Fig 1: Exploded View Of Starter

G00355750

Courtesy of HYUNDAI MOTOR CO.
