Component Locations

COMPONENT LOCATIONS

Component	Location
Battery	Left Front Of Engine Compartment. See Fig 1 .
Engine Compartment Relay & Fuse Box	Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 .
Fusible Link	In Engine Compartment Relay & Fuse Box. See Fig 2 .
Passenger Compartment Junction Block	Under Left Side Of Dash, Near Kick Panel. See Fig 3 .
Starter	Left Front Of Engine. Fig 4 .
Starter Clutch Pedal Position Switch	Under Left Side Of Dash. Fig 5 .
Starter Relay	In Engine Compartment Fuse Box. See Fig 2 .
Transaxle Range Switch	On Top Left Of Transaxle. Fig 6 .

Fig 1: Locating Battery, Starter & Engine Compartment Relay & Fuse Box

Courtesy of HYUNDAI MOTOR CO.

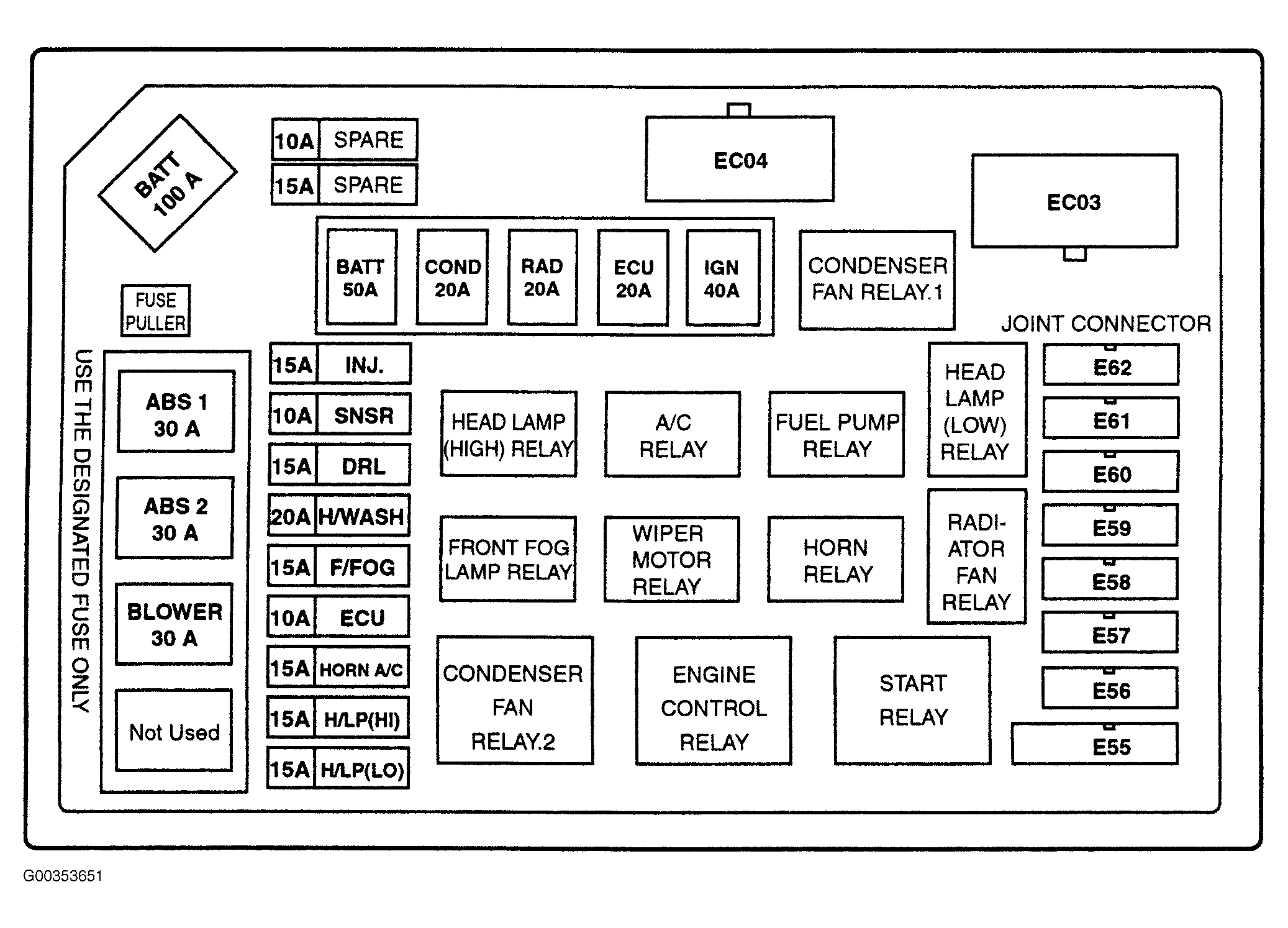

Fig 2: Locating Starter Relay

Courtesy of HYUNDAI MOTOR CO.

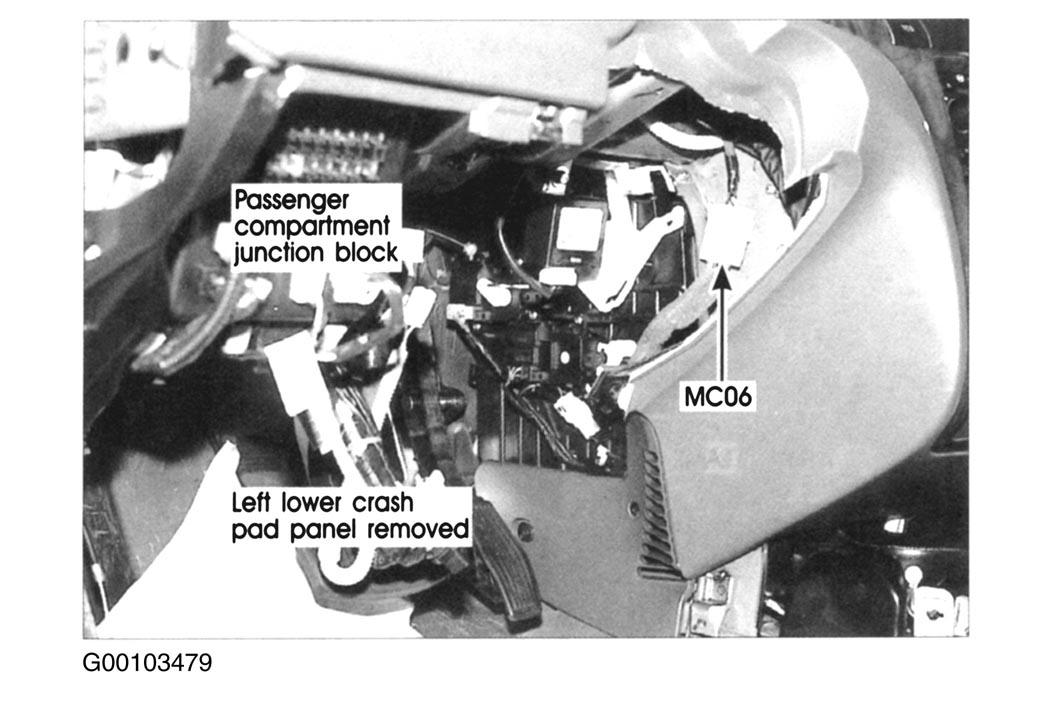

Fig 3: Locating Passenger Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

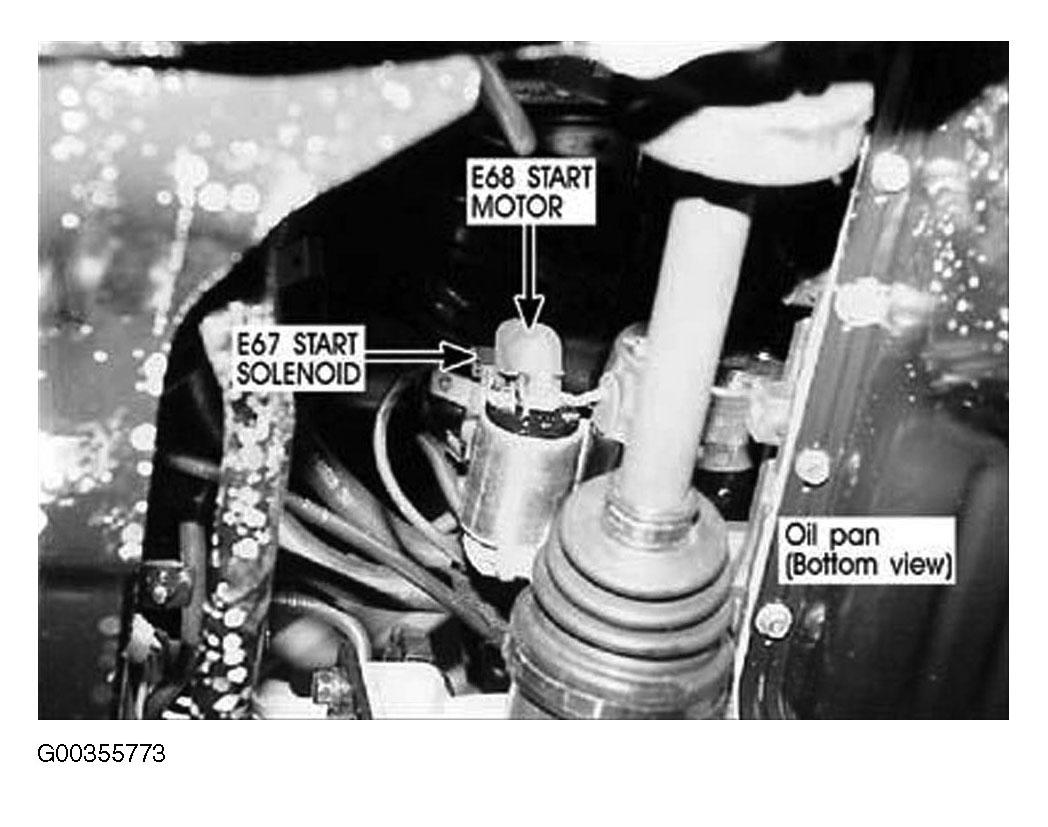

Fig 4: Locating Starter

Courtesy of HYUNDAI MOTOR CO.

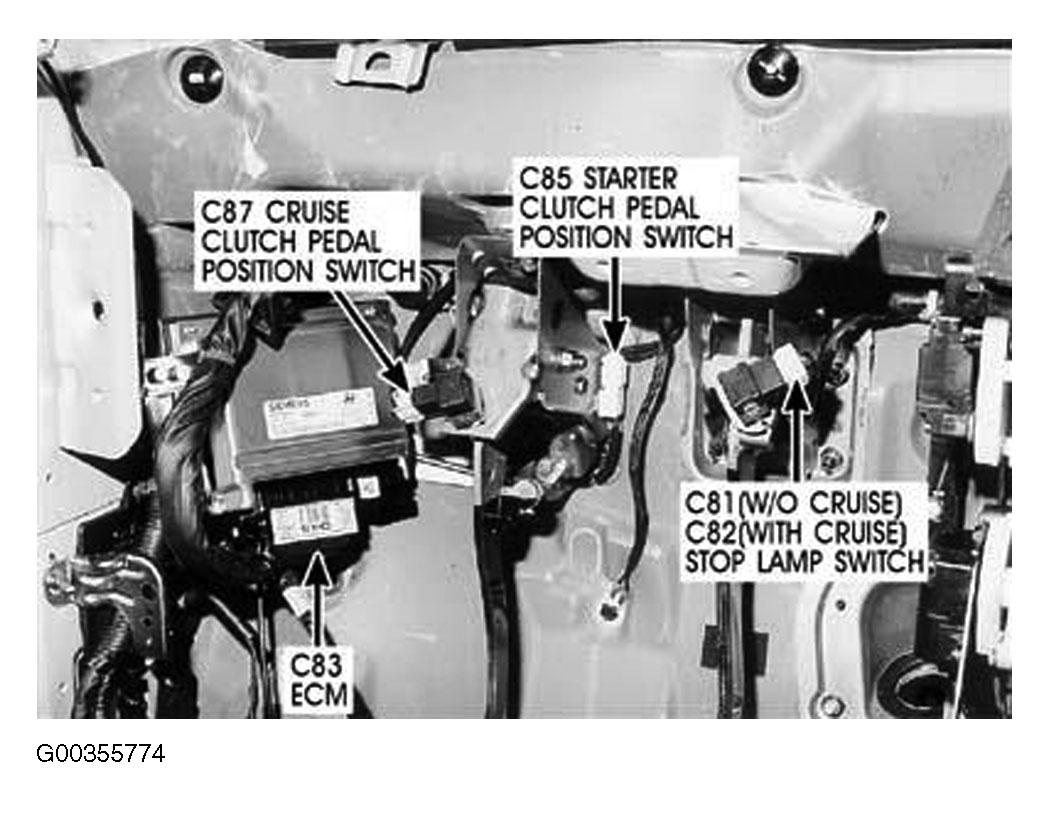

Fig 5: Locating Starter Clutch Pedal Position Switch

Courtesy of HYUNDAI MOTOR CO.

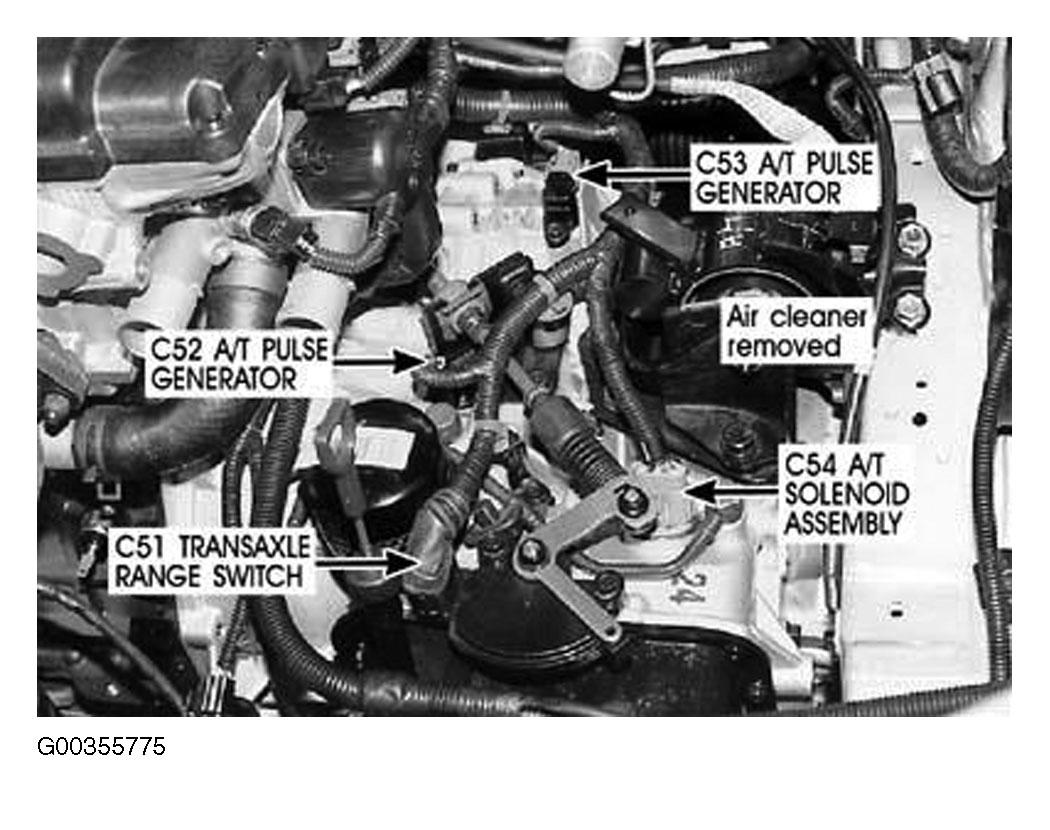

Fig 6: Locating Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.
