Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | In right front corner of engine compartment. |

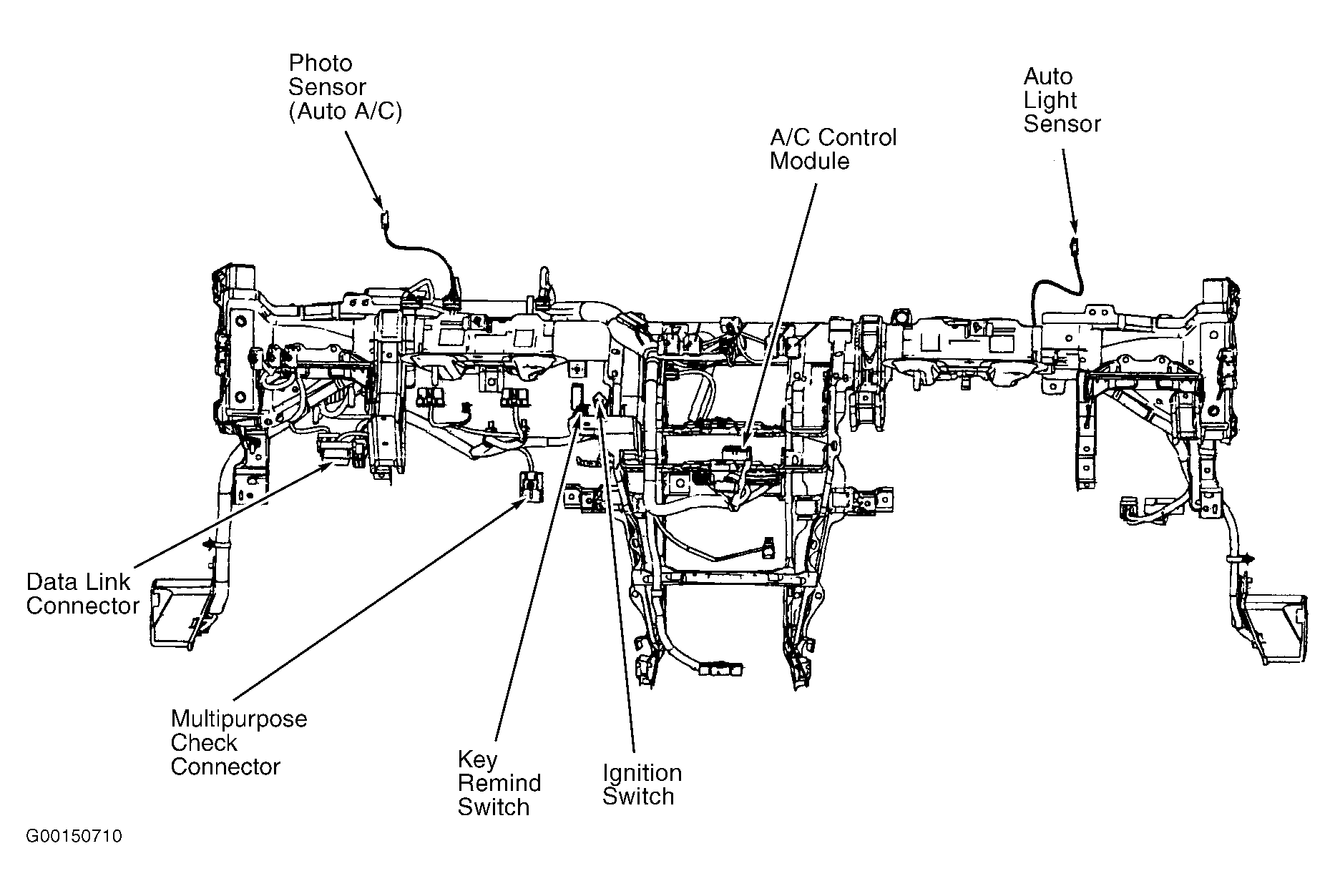

| A/C Control Module | Below center of dash, forward of shift lever. See Figure. |
| Body Control Module | At lower left side of dash. |
| Cruise Control Module | On right side of firewall, behind strut tower. |
| DRL Control Module | On left front inner fender panel. |
| Engine Control Module | Behind right side of dash, above kick panel. |
| SRS Control Module | Under rear console. |
| Transaxle Control Module | Behind left side of dash. |
