Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

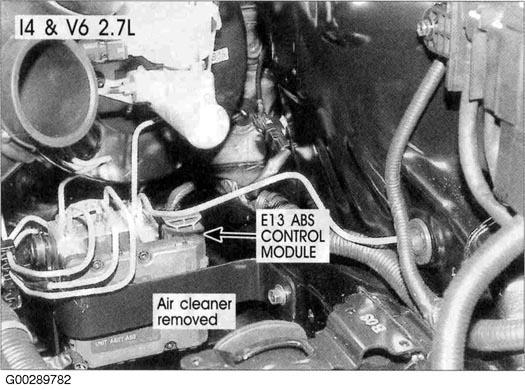

| ABS Control Module (2.4L) | At left rear of engine compartment, below brake master cylinder. See Figure. |
| ABS Control Module (2.7L) | At left rear of engine compartment, below brake master cylinder. See Figure. |

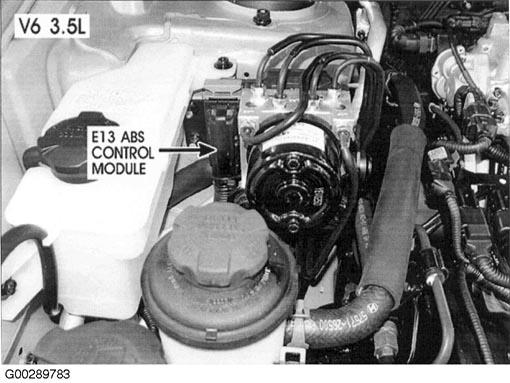

| ABS Control Module (3.5L) | At left side of engine compartment. See Figure. |

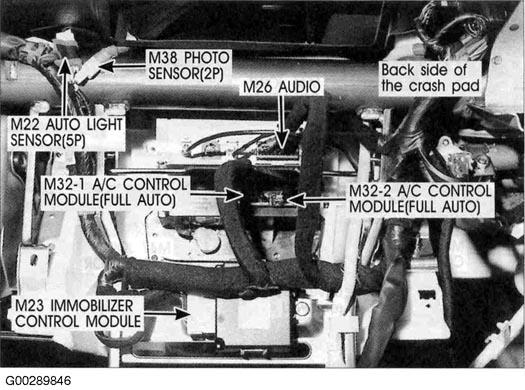

| A/C Control Module (Full Auto) | Behind center of dash. See Figure. |

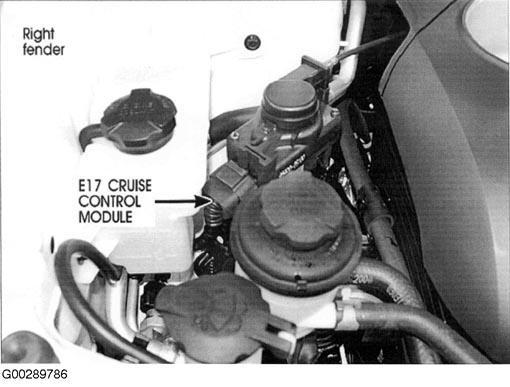

| Cruise Control Module | On right side of engine compartment. See Figure. |

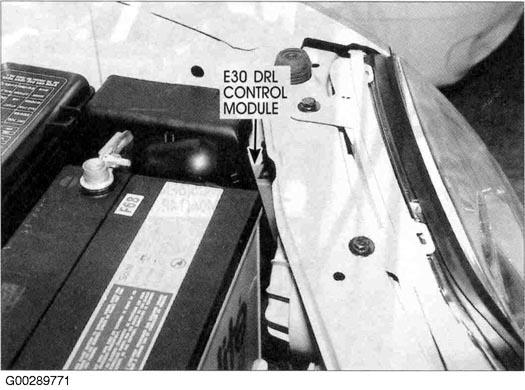

| DRL Control Module | At left front corner of engine compartment. See Figure. |

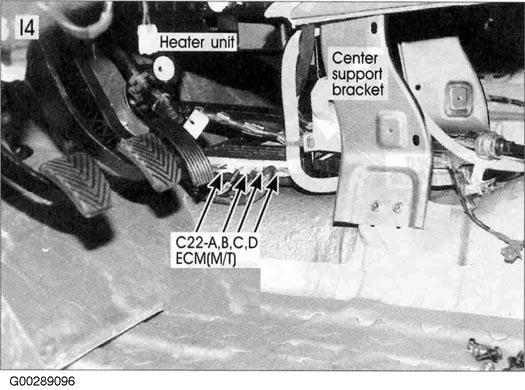

| ECM (2.4L, M/T) | Below center of dash. See Figure. |

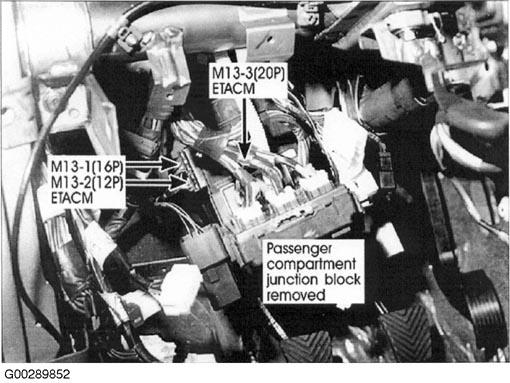

| ETACM | On rear of passenger compartment junction block. See Figure. |

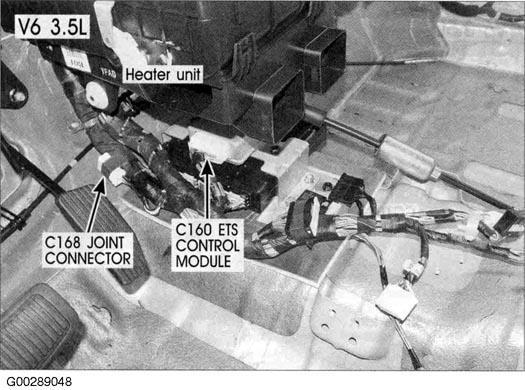

| ETS Control Module | Under center of dash. See Figure. |
| Immobilizer Control Module | Behind center of dash. See Figure. |

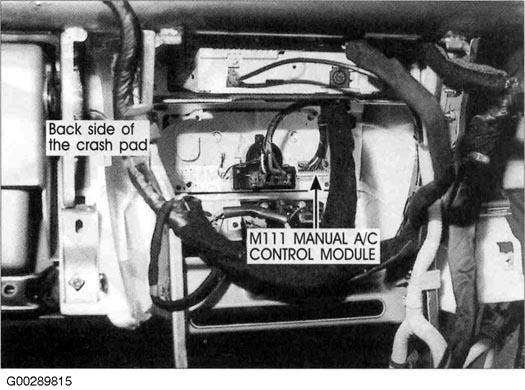

| Manual A/C Control Module | Behind center of dash. See Figure. |
| PCM (2.4L, A/T) | Below center of dash. See Figure. |

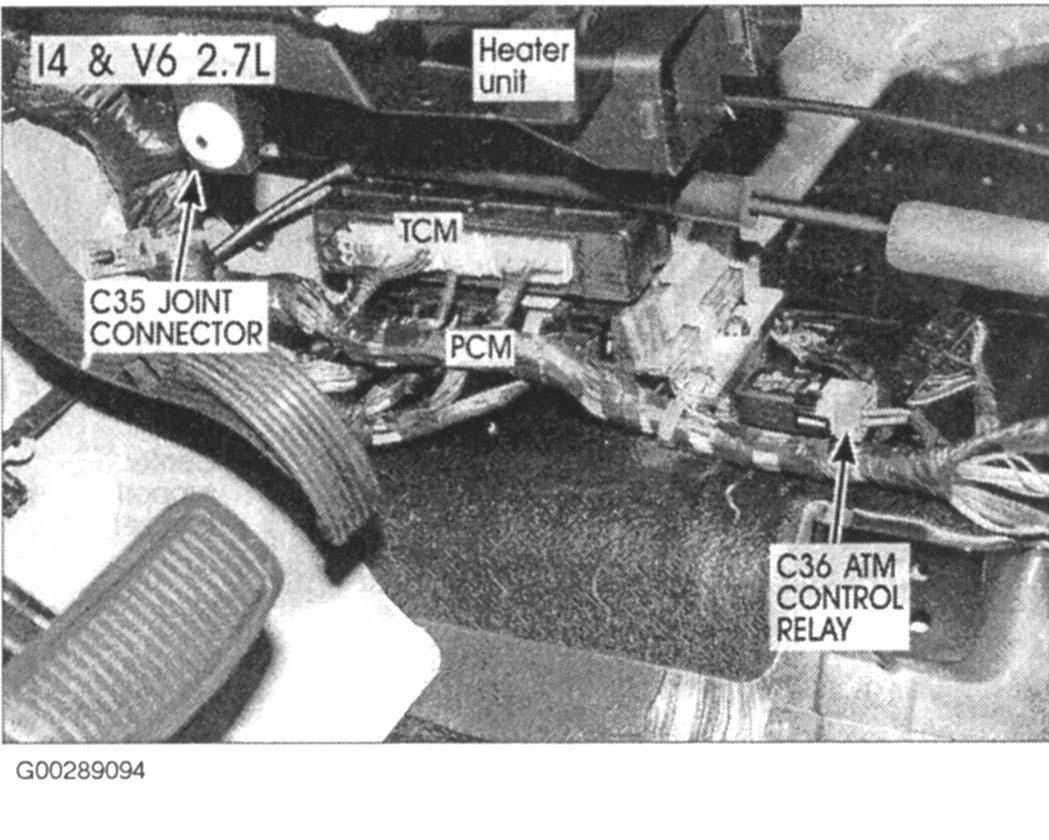

| PCM (2.7L) | Below center of dash. See Figure. |

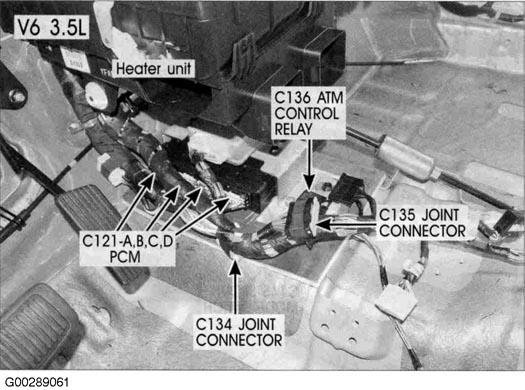

| PCM (3.5L) | Below center of dash. See Figure. |

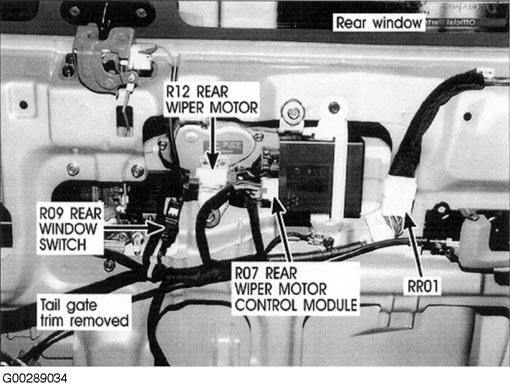

| Rear Wiper Motor Control Module | Inside lower center of tail gate, behind trim panel. See Figure. |

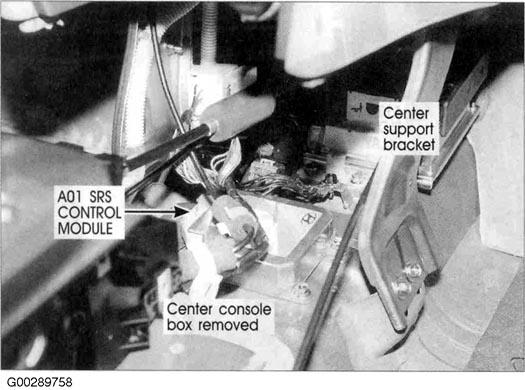

| SRS Control Module | Below front of center console. See Figure. |

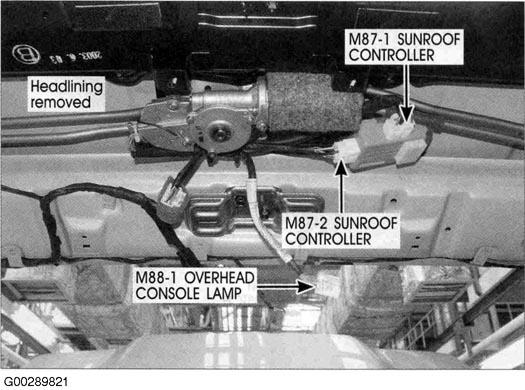

| Sunroof Controller | At front center of roof. See Figure. |
| TCM (2.4L) | Below center of dash. See Figure. |
| TCM (2.7L) | Below center of dash. See Figure. |

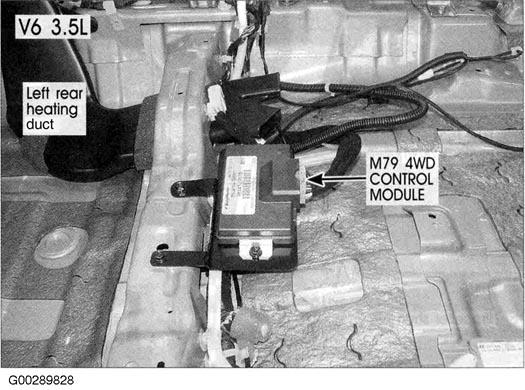

| 4WD Control Module | Under left side of rear seat. See Figure. |
